| Brand Name: | Gracyfiber |
| Model Number: | ILP-55ST330910-22 |
| MOQ: | 100pcs |
| Price: | 10~1000usd/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs |

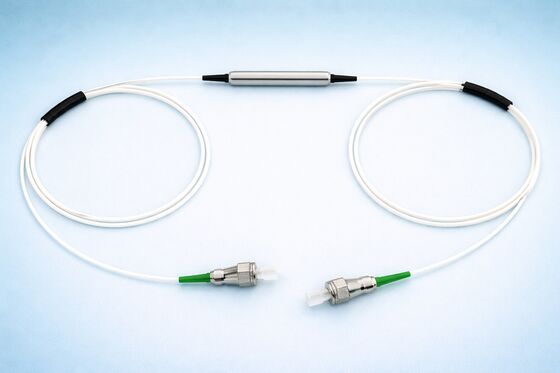

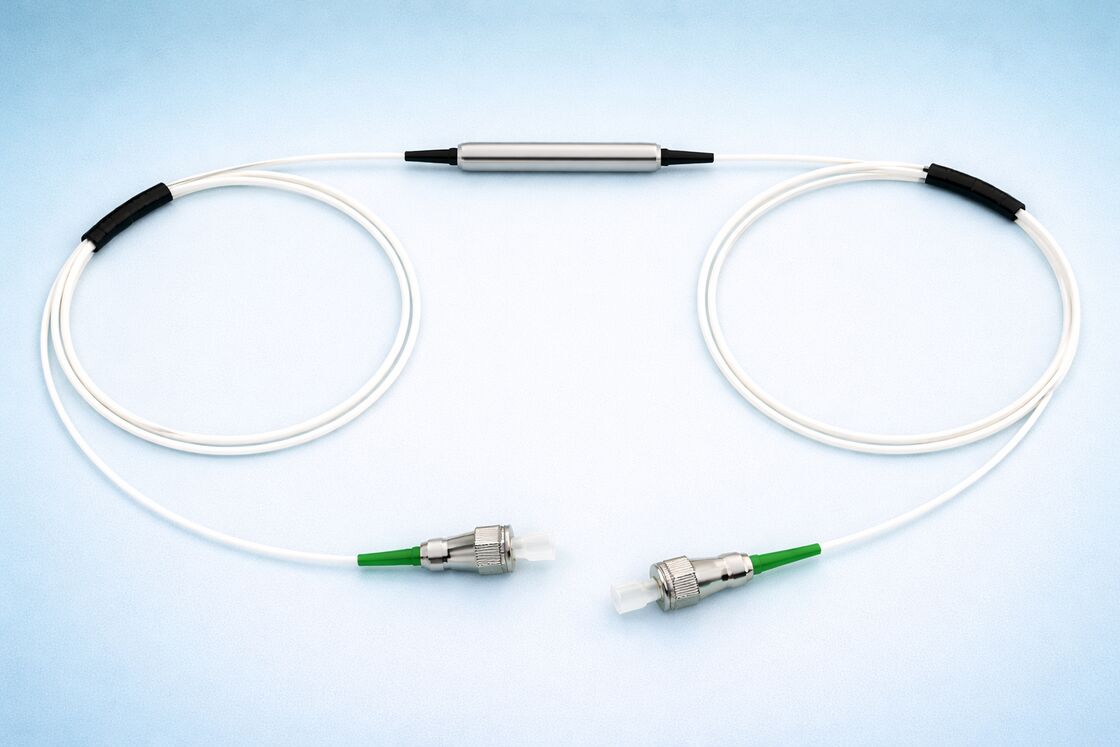

This In-line Polarizer is a critical optical component designed for the precise control of the polarization state of optical signals. It is widely utilized in fiber-optic communications, fiber-optic instrumentation, fiber sensing, laser systems, and various polarization-sensitive optical systems. The device effectively filters out optical signals with unwanted polarization directions, ensuring that the output light within the system maintains optimal polarization characteristics. This, in turn, enhances signal quality, measurement accuracy, and overall system stability. Featuring a compact structural design, this product boasts low insertion loss, a high extinction ratio, and high isolation performance. Furthermore, it maintains stable performance across a broad wavelength range, making it ideally suited for modern optical communication and optoelectronic systems with stringent polarization control requirements.
| Parameters | Unit | Value | |||
|---|---|---|---|---|---|
| Operating Wavelength | nm | 1310, 1550 | 1064 | 980 | 850 |
| Bandwidth | nm | ±50 | ±30 | ±10 | ±10 |
| Typ. Insertion Loss @23℃ | dB | 0.30 | 0.40 | 0.7 | 0.8 |
| Insertion Loss @ 23℃ | dB | ≤0.5 | ≤0.6 | ≤0.9 | ≤1.0 |
| Typ. Extinction Ratio@ 23℃ | dB | 30 | 30 | 28 | 28 |
| Extinction Ratio @23℃ | dB | ≥28 | ≥28 | ≥25 | ≥25 |
| Fiber Type | / | PM1310 SMF-28e |
PM980 HI1060 |
PM980 HI1060 |
PM850 SM800 |
| Return loss | dB | ≥50 | |||
| Power handling | mW | ≤300 | |||
| Fiber Length | m | 1.0 ±0.05 | |||
| Connector | / | FC/APC | |||
| Operating temperature | ℃ | -5~+70 | |||
| Storage temperature | ℃ | -40 ~ +80 | |||
| Dimensions | mm | Ф5.5*L35 | |||
Above specifications are for devices without connectors.
For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
The default connector key is aligned to slow axis.
