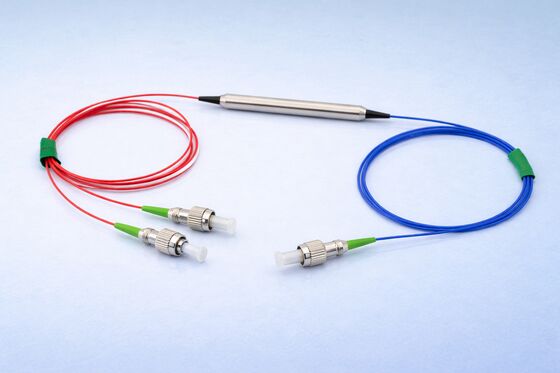

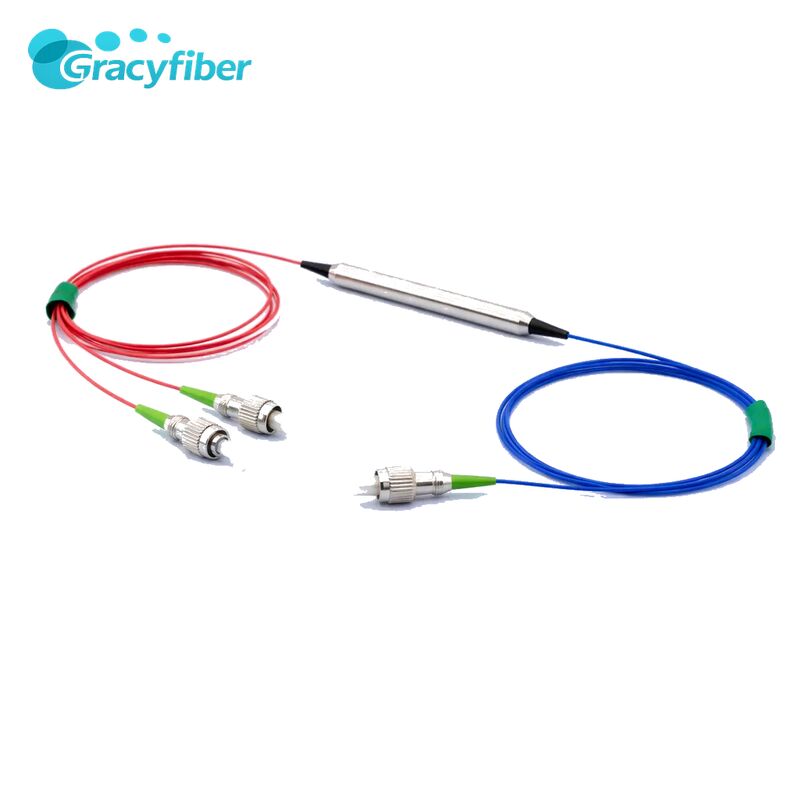

1550nm PM Optical Circulator Polarization Maintaining 3 Port Fiber Circulator Low Insertion Loss

  A polarization-maintaining optical circulator (PM circulator) is a high-performance passive optical device capable of unidirectional cyclic transmission of optical signals between different ports. Unlike ordinary optical circulators, the PM circulator employs a polarization-maintaining fiber design, effectively maintaining the polarization state of the optical signal and ensuring its stability and integrity in complex optical systems.

  This product, with its low insertion loss, high extinction ratio, high isolation, and excellent stability, is widely used in optical communication systems, optical amplifiers (EDFAs), fiber lasers, and fiber optic sensing. The PM circulator performs best at a wavelength of 1550nm and can operate in either the slow or fast axis direction, making it suitable for various polarization-sensitive optical systems. It is a key component for achieving high-precision signal control and transmission.

  PM optical circulators play a crucial role in modern optical communication and optoelectronic systems, primarily used in the following areas:

• Erbium-Doped Fiber Amplifiers (EDFAs): In EDFA systems, PM optical circulators isolate input and output signals, preventing amplification noise or instability caused by optical feedback.
• Fiber Laser Systems: In fiber lasers, PM optical circulators guide the laser signal to the target path while effectively isolating backlighting, protecting the laser source.
• Fiber Optic Sensing Systems: In interferometric or reflective fiber optic sensors, PM optical circulators are used for signal distribution and return channel control, improving measurement accuracy and signal-to-noise ratio.
• Optical Inspection and Instrumentation: In research or testing equipment, PM optical circulators are used to control optical path direction and isolate optical signals, ensuring stable system optical performance.

  PM optical circulators possess several superior features, making them an ideal choice for high-end optical communication systems:

• Low Insertion Loss: Typical insertion loss ≤0.7dB, ensuring sustained optical signal strength during transmission.
• High Extinction Ratio: An extinction ratio ≥22dB ensures stable polarization and minimal signal distortion.
• High Isolation: Typical isolation up to 46dB, effectively preventing crosstalk and feedback between ports.
• High Return Loss and Low Crosstalk: Return loss ≥50dB and crosstalk ≥50dB, guaranteeing pure signal quality.
• Optional Dual-Stage Structure: Available in single-stage or dual-stage structures to meet diverse optical path design requirements.
• High Reliability and Temperature Stability: Operating temperature range -5℃ to +70℃, adaptable to various environmental conditions.
• Multiple Fiber and Interface Compatibility: Utilizes Corning PM1550 Panda fiber and is configurable with various connectors such as FC, SC, and LC.

  In practical applications, PM optical circulators are widely used due to their high performance:

• Fiber Laser Systems: Used for unidirectional cyclic transmission of optical signals within the laser resonant cavity, preventing laser instability caused by optical feedback.
• Fiber Optic Interferometric Sensing: In interferometric fiber optic sensing systems, PM optical circulators are used to distribute and recover signal light, improving system measurement sensitivity.
• Optical Amplification and Detection Systems: Used for signal isolation in EDFA amplification links, improving amplification efficiency and signal purity.
• Quantum Communication and Polarization Control Systems: PM optical circulators can maintain photon polarization direction in quantum key distribution and polarization-sensitive communication, ensuring secure and stable data transmission.

  Compared to ordinary optical circulators, polarization-maintaining optical circulators offer significant advantages in performance and application flexibility:

• Polarization-Maintaining Design: Ensures the polarization state of the optical signal is unaffected by environmental interference, greatly improving system stability.
• Low Loss and High Isolation: Optimized optical structure design achieves low insertion loss and high isolation performance, reducing system signal interference.
• High Environmental Adaptability: Possesses excellent temperature and mechanical stability, enabling long-term operation in harsh environments.
• Compact Structure and Easy Installation: Encapsulated in a Φ5.5×L50mm steel tube, its compact size facilitates easy integration.
• Strong Compatibility: Supports various fiber types and connection interfaces, allowing for flexible configuration to meet customized customer needs.
• High Reliability: Complies with Telcordia GR-1221 standards and RoHS environmental regulations, ensuring long-term stable operation.

  Polarization-maintaining optical circulators (PM circulators) are high-performance, low-loss, and highly isolated passive optical devices widely used in fiber optic communication, optical amplifiers, laser systems, and fiber optic sensing. Their polarization-maintaining characteristics make them irreplaceable in polarization-sensitive systems, significantly improving signal stability and accuracy. With their excellent optical performance, reliable structural design, and wide adaptability, PM circulators have become an indispensable core component in modern optical networks and precision optical systems, making them an ideal choice for achieving high-quality optical signal transmission and control.
