80 Channel AWG Module，80 Channel AWG Module Arrayed Waveguide Grating 80CH Optical Multiplexer Demultiplexer for High Density Fiber Communication Network Monitoring

Brand Name:	Gracyfiber

Detail Information

Product Description

Detail Information

Place of Origin:

China

Channel Count:

Technology:

Arrayed Waveguide Grating

Operation Type:

Passive Optical

Insertion Loss:

Low

Highlight:

80 channel AWG module with warranty

polarization maintaining AWG module

80 channel optical wavelength module

Product Description

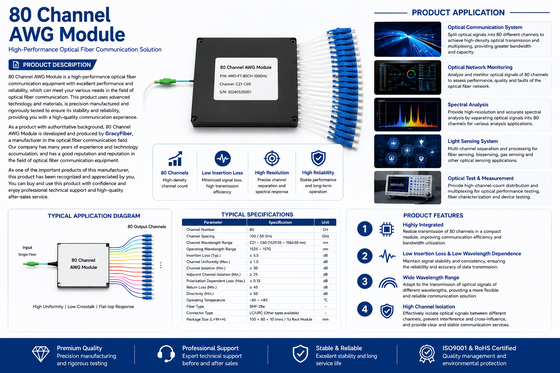

80-Channel AWG Mux/Demux Module

80 Channel AWG Module, 80 Channel AWG Module Arrayed Waveguide Grating 80CH Optical Multiplexer Demultiplexer for High Density Fiber Communication Network Monitoring

1. Product Description

The 80-Channel AWG Module is a high-channel-count passive wavelength-division multiplexing component designed for dense multi-wavelength optical transmission systems. Based on Arrayed Waveguide Grating (AWG) technology, it can multiplex up to 80 individual wavelength channels onto a common optical fiber or demultiplex a composite optical signal into separate wavelength channels.

2. Product Features

80-channel AWG configuration
Arrayed Waveguide Grating technology
High-density wavelength multiplexing
High-density wavelength demultiplexing
Multi-channel optical routing
Passive optical operation
No external power supply required
Compact high-channel-count architecture
Low insertion loss design
High channel isolation design
Good channel-to-channel uniformity
Multiple wavelength plans available
Multiple channel-spacing options available
Customizable package and fiber interfaces

3. Applications

DWDM transmission systems
High-capacity optical transport networks
Metropolitan optical networks
Data center interconnect
Optical Mux/Demux systems
Optical network monitoring
Wavelength channelization
Optical test and measurement systems
Spectral monitoring equipment
Fiber optic sensing systems
Photonic subsystem integration
Customized multi-wavelength optical assemblies

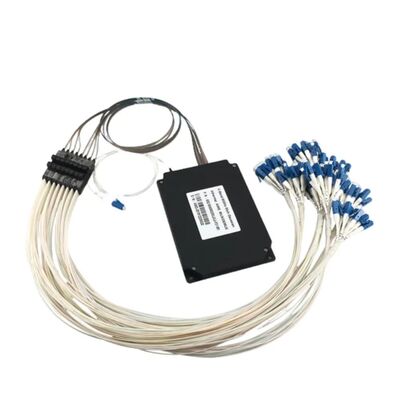

80 Channel AWG Module，80 Channel AWG Module Arrayed Waveguide Grating 80CH Optical Multiplexer Demultiplexer for High Density Fiber Communication Network Monitoring

4. FAQ

Q1: What does an 80-channel AWG module do?

An 80-channel AWG module can separate a composite optical signal into as many as 80 individual wavelength channels or combine multiple wavelength channels onto a common fiber. It is primarily used for high-density wavelength multiplexing and demultiplexing in optical transmission systems.

Q2: Can the wavelength plan and channel spacing be customized?

Yes. The wavelength plan, channel spacing, spectral profile, fiber interface, and package configuration can be selected according to the system requirements. Final insertion loss, passband, channel isolation, ripple, and other optical parameters should be confirmed according to the specific AWG design.
