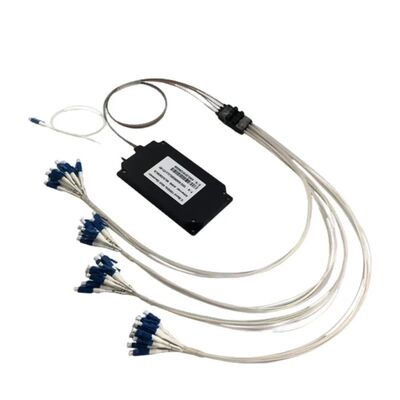

40 Channel AWG Module，40 Channel AWG Module Arrayed Waveguide Grating Optical Mux Demux Low Insertion Loss High Isolation for Fiber Optic Networks

The 40 Channel AWG Module is a passive wavelength-division multiplexing component designed for high-channel-count optical transmission and wavelength routing. Based on Arrayed Waveguide Grating technology, it can combine multiple wavelength channels onto a common optical path or separate a multiplexed signal into 40 individual channels.

• 40-Channel Wavelength Routing
  Supports multiplexing or demultiplexing of up to 40 optical wavelength channels.

• AWG Technology
  Uses an Arrayed Waveguide Grating structure for multi-channel wavelength separation and combination.

• High Channel Density
  Integrates multiple wavelength channels into a compact passive optical module.

• Defined Channel Grid
  Designed around specified center wavelengths and channel spacing according to the required optical system.

• Channel Isolation
  Separates adjacent wavelength channels to reduce unwanted inter-channel interference.

• Passive Optical Operation
  Requires no external electrical power for wavelength multiplexing or demultiplexing.

• Flexible Spectral Options
  Gaussian or flat-top spectral profiles can be specified depending on the product design.

• Configurable Integration
  Fiber type, connector, pigtail length, and package can be selected according to project requirements.

• DWDM transmission systems

• Metropolitan and backbone optical networks

• Data center interconnect systems

• Optical wavelength routing

• Fiber capacity expansion

• Optical monitoring systems

• Optical test and measurement equipment

• Photonic laboratory systems

• Multi-wavelength optical networks

• Custom optical transmission modules

A 40 Channel AWG Module is a passive optical device that uses Arrayed Waveguide Grating technology to combine or separate 40 different wavelength channels.

An AWG MUX combines multiple wavelength channels into one common optical path, while an AWG DEMUX separates a multiplexed signal into individual wavelength channels.

No. An AWG is a passive wavelength-routing component. Optical modulation is performed by transmitters or modulators, not by the AWG itself.

A 40-channel AWG allows many wavelength channels to share a common fiber, helping increase fiber utilization and support high-channel-count optical transmission architectures.

Depending on the product platform, AWG modules can be designed for different channel spacings and wavelength grids. The exact configuration should be confirmed before ordering.

A Gaussian AWG has a narrower spectral response around the channel center, while a flat-top AWG provides a wider usable passband. The preferred option depends on the system tolerance and transmission requirements.

Yes. An AWG can separate multiple wavelength channels for downstream monitoring or measurement, although it does not perform the measurement function itself.

Key parameters normally include channel count, channel spacing, center wavelengths, passband, insertion loss, channel isolation, ripple, PDL, return loss, spectral shape, fiber type, connector type, package, and operating temperature.
