19CH O C Band DWDM Module 8 11 Channel 200GHz 100GHz LC PC G657A1 Low Loss Fiber Optic WDM

19CH O C Band DWDM Module 8 11 Channel 200GHz 100GHz LC PC G657A1 Low Loss Fiber Optic WDM

Detail Information
Channel Count:
19 (8 O-band + 11 C-band)
Channel Spacing:
200GHz (O-band) / 100GHz (C-band)
Insertion Loss:
≤3.6 DB
Operating Temperature:
-20~+70 ℃
Highlight:

19CH DWDM module LC PC

,

O C band DWDM module 200GHz

,

low loss fiber optic WDM G657A1

Product Description

19CH O C Band DWDM Module 8 11 Channel 200GHz 100GHz LC PC G657A1 Low Loss Fiber Optic WDM

19CH O+C-Band DWDM Module

1. Product Description

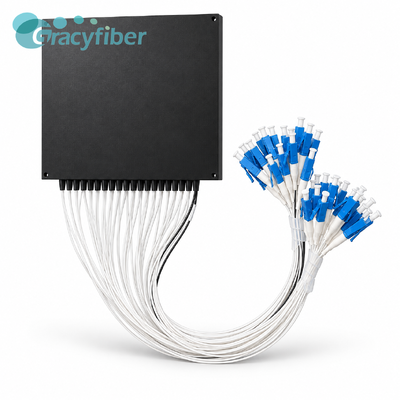

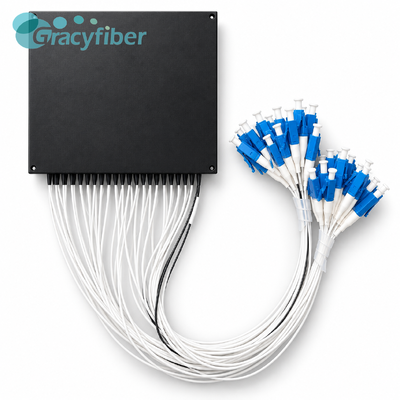

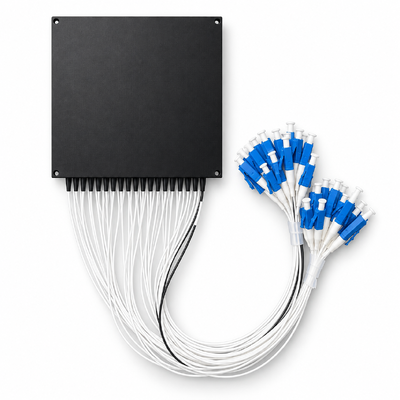

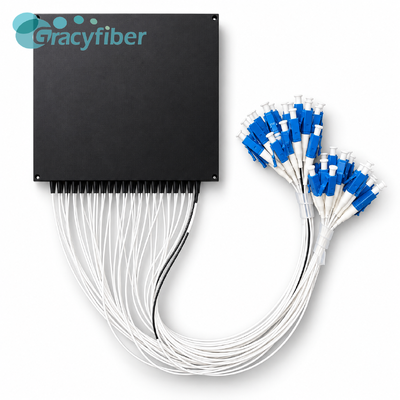

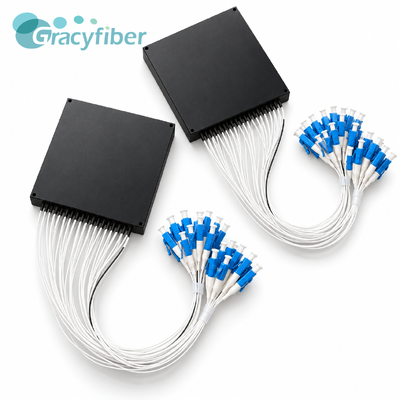

The 19CH O+C-Band DWDM Module is a multi-wavelength passive optical component designed to combine O-band and C-band wavelength channels within a single compact module. It integrates 8 O-band channels and 11 C-band channels, providing a total of 19 wavelength channels for optical multiplexing and demultiplexing applications.

19CH O C Band DWDM Module 8 11 Channel 200GHz 100GHz LC PC G657A1 Low Loss Fiber Optic WDM

2. Product Features

Test Report
Product Name: 19CH O+C-Band DWDM Module (Mux&Demux)
Part Number: 20020121040106
Serial Number: 20260921002
B OP Optical Performance Unit Test Data
Mux Demux
1 CH Channels 19
2 CW Center Wavelength ( nm) O-Band:O284/O286/O288/O290/O292/O294/O296/O298
C-Band:C20/C21/C22/C23/C24/C25/C26/C27/C28/C29/C30
3 GHZ Channel Spacing 200@O-band / 100@C-band
4 CP Channel Passband ( nm) ±0.2@O-band / ±0.11@C-band
4 IL Insertion Loss ( dB) COM→O284 ≤3.6 2.58 1.22
COM→O286 2.28 1.36
COM→O288 2.09 1.47
COM→O290 1.83 1.66
COM→O292 1.77 1.93
COM→O294 1.50 2.04
COM→O296 1.31 2.23
COM→O298 1.28 2.49
COM→C20 0.87 2.71
COM→C21 1.07 2.55
COM→C22 1.19 2.37
COM→C23 1.34 2.19
COM→C24 1.66 2.06
COM→C25 1.85 1.82
COM→C26 1.94 1.54
COM→C27 2.18 1.40
COM→C28 2.30 1.23
COM→C29 2.60 0.95
COM→C30 2.85 0.72
5 IS Isolation ( dB) Adjacent Channel ≥25 28.49 29.09
Non-adjacent Channel ≥35 38.27 38.34
6 PDL Polarization Dependent Loss ( dB) ≤0.2 0.07 0.08
7 UF Ripple ( dB) ≤0.5 0.29 0.15
8 RL Return Loss ( dB) ≥45 45.55 46.19
9 DIR Directivity ( dB) ≥50 60.70 56.79
10 PH Power Handling ( mW) 500
11 FT Fiber Type G657A1 with 0.9mm loose tube,COM:Black, Other:White
12 FL Fiber length (m) 0.3
13 OT Operating Temperature ( ℃) -20~+70
14 ST Storage Temperature ( ℃) -40~+85
15 PD Package Dimension ( mm) 120*120*14
16 CT Connector Type LC/PC

  • 19-channel O+C-band DWDM module
  • 8 O-band + 11 C-band channels
  • Operating wavelength: 1260–1360 nm & 1525–1575 nm
  • O-band channel spacing: 200 GHz
  • C-band channel spacing: 100 GHz
  • O-band passband: ±0.20 nm
  • C-band passband: ±0.11 nm
  • COM-to-channel insertion loss ≤3.60 dB
  • Adjacent-channel isolation ≥25 dB
  • Non-adjacent-channel isolation ≥35 dB
  • Directivity ≥50 dB
  • Return loss ≥45 dB
  • Ripple ≤0.5 dB
  • PDL ≤0.2 dB
  • PMD ≤0.2 ps

19CH O C Band DWDM Module 8 11 Channel 200GHz 100GHz LC PC G657A1 Low Loss Fiber Optic WDM

19CH O C Band DWDM Module 8 11 Channel 200GHz 100GHz LC PC G657A1 Low Loss Fiber Optic WDM

3. Applications

  • O-band and C-band wavelength multiplexing
  • Multi-band optical transmission systems
  • DWDM optical networks
  • Optical Mux/Demux systems
  • Telecom transport networks
  • Metropolitan optical networks
  • Fiber capacity expansion
  • Optical network monitoring
  • Optical test and measurement systems
  • Multi-wavelength optical equipment
  • Photonic system integration
  • Customized O+C-band optical assemblies

4. FAQ

Q1: Which wavelength channels are included in the 19CH O+C-Band DWDM Module?

The module integrates 8 O-band channels and 11 C-band channels.

The O-band channels are:

O284, O286, O288, O290, O292, O294, O296, O298

with center wavelengths from 1312.58 nm to 1304.58 nm and 200 GHz channel spacing.

The C-band channels are:

C20, C21, C22, C23, C24, C25, C26, C27, C28, C29, C30

with center wavelengths from 1561.42 nm to 1553.33 nm and 100 GHz channel spacing.

Q2: What is the advantage of integrating O-band and C-band channels in one module?

Integrating O-band and C-band wavelength channels into one passive module allows two widely separated optical wavelength regions to be routed through a common optical component. This can simplify multi-band optical system architecture and reduce the number of separate wavelength-management components required in systems that use both wavelength bands.

The supplied specification also states compliance with Telcordia GR-1209 / GR-1221 reliability requirements and RoHS 2.0.
