19CH O+C-Band DWDM Module – 8CH O-Band 200GHz + 11CH C-Band 100GHz
The GracyFiber 19CH O+C-Band DWDM Module combines eight O-band wavelength channels and eleven C-band wavelength channels through a single COM interface. The module operates across 1260–1360 nm and 1525–1575 nm, using 200 GHz spacing in the O-band and 100 GHz spacing in the C-band.
The documented configuration provides a maximum COM-to-channel insertion loss of 3.60 dB, adjacent-channel isolation of at least 25 dB, non-adjacent isolation of at least 35 dB, and a compact 120 × 80 × 14 mm aluminum housing. All listed optical specifications are stated with connectors.
The product specification explicitly states that these optical values are specified with connectors.
Based strictly on the documented optical architecture, suitable applications include:
More specific applications such as data center interconnect, telecom transport, coherent transmission.
It is a wavelength multiplexing module that combines 8 O-band channels and 11 C-band channels, providing 19 wavelength channels through a common optical port.
The documented configuration uses:
The module includes:
O284, O286, O288, O290, O292, O294, O296, and O298.
Their exact frequencies and wavelengths are defined in the supplied channel table.
The module includes:
C20 through C30, giving eleven C-band channels.
Yes. The supplied specification explicitly notes:
“Above specifications with connector.”
| Parameter | Specification |
|---|---|
| Product Type | 19CH O+C-Band DWDM Module |
| Channel Configuration | 8 O-Band + 11 C-Band |
| Total Channel Count | 19CH |
| Operating Wavelength Range | 1260–1360 nm & 1525–1575 nm |
| O-Band Channel Spacing | 200 GHz |
| C-Band Channel Spacing | 100 GHz |
| O-Band Passband | ±0.2 nm |
| C-Band Passband | ±0.11 nm |
| COM ↔ WDM Channel Insertion Loss | ≤3.60 dB |
| Adjacent-Channel Isolation | ≥25 dB |
| Non-Adjacent-Channel Isolation | ≥35 dB |
| Directivity | ≥50 dB |
| Return Loss | ≥45 dB |
| Ripple | ≤0.5 dB |
| Polarization Dependent Loss | ≤0.2 dB |
| Polarization Mode Dispersion | ≤0.2 ps |
| Optical Power | ≤500 mW |
| Channel | Frequency | Center Wavelength |
|---|---|---|
| O284 | 228.40 THz | 1312.58 nm |
| O286 | 228.60 THz | 1311.43 nm |
| O288 | 228.80 THz | 1310.28 nm |
| O290 | 229.00 THz | 1309.14 nm |
| O292 | 229.20 THz | 1308.00 nm |
| O294 | 229.40 THz | 1306.85 nm |
| O296 | 229.60 THz | 1305.72 nm |
| O298 | 229.80 THz | 1304.58 nm |
| Channel | Frequency | Center Wavelength |
|---|---|---|
| C20 | 192.00 THz | 1561.42 nm |
| C21 | 192.10 THz | 1560.61 nm |
| C22 | 192.20 THz | 1559.79 nm |
| C23 | 192.30 THz | 1558.98 nm |
| C24 | 192.40 THz | 1558.17 nm |
| C25 | 192.50 THz | 1557.36 nm |
| C26 | 192.60 THz | 1556.55 nm |
| C27 | 192.70 THz | 1555.75 nm |
| C28 | 192.80 THz | 1554.94 nm |
| C29 | 192.90 THz | 1554.13 nm |
| C30 | 193.00 THz | 1553.33 nm |
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5–95% RH |
| Fiber Type | Ultra G657A1 |
| Fiber Protection | 0.9 mm loose tube |
| Fiber Length | 300 ±50 mm |
| Connector Type | LC/PC |
| Package Size | 120 × 80 × 14 mm |
| Package Material | Aluminum |
| Package Color | Black |
| COM Fiber Color | Black |
| Channel Fiber Color | White |
| Item | Specification |
|---|---|
| Reliability | Telcordia GR-1209 / GR-1221 compliant |
| RoHS | RoHS 2.0 compliant |
Channel Count
O-Band Channels
C-Band Channels
Connector
Fiber
Housing
The module-layout and drawing pages state “Channel optional,” indicating that channel selection may be configurable.
The GracyFiber 19CH O+C-Band DWDM Module is a hybrid wavelength-management device that combines two different optical wavelength regions within one passive module.
Its channel architecture consists of eight O-band channels and eleven C-band channels connected to a common optical port. The O-band section operates with 200 GHz channel spacing, while the C-band section uses 100 GHz channel spacing. This allows two distinct wavelength grids to be integrated into one 19-channel optical assembly.
The O-band portion covers channels O284 through O298, corresponding to wavelengths from 1312.58 nm down to 1304.58 nm. The C-band portion covers C20 through C30, corresponding to 1561.42 nm down to 1553.33 nm. The channel layout drawing on page 3 shows all nineteen wavelength ports connected to a single COM interface.
Optically, the module specifies maximum COM-to-channel insertion loss of 3.60 dB, with minimum adjacent-channel isolation of 25 dB and non-adjacent isolation of 35 dB. PDL and PMD are both limited to 0.2, while directivity and return loss are specified at ≥50 dB and ≥45 dB respectively.

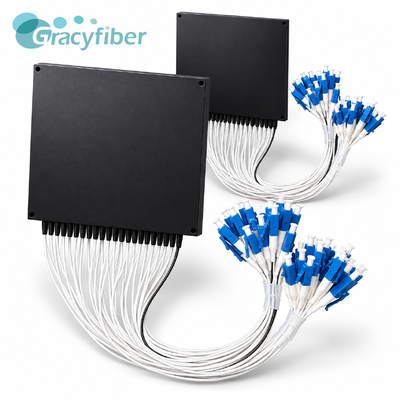

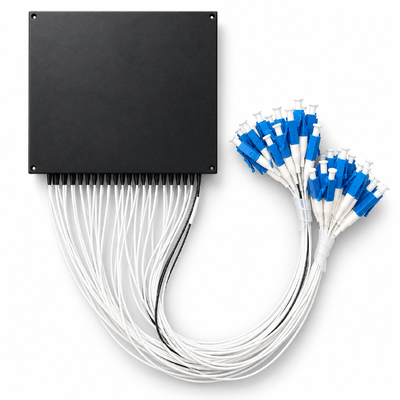

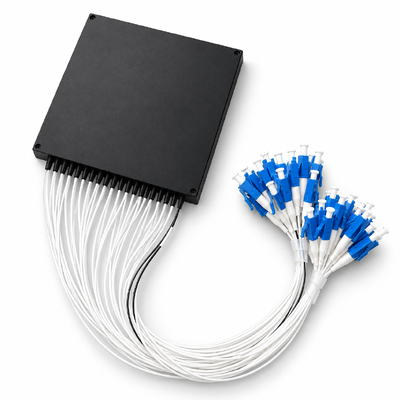

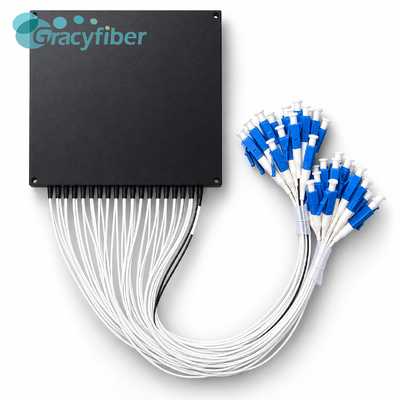

Mechanically, the module uses a 120 × 80 × 14 mm black aluminum housing. The supplied drawing on page 4 shows nineteen individual channel fibers plus one COM fiber, all terminated with LC/PC connectors. The fiber length is 300 ±50 mm, using 0.9 mm loose-tube G657A1 fiber.
This architecture is suitable when a system requires simultaneous access to defined O-band and C-band wavelength channels through one compact passive wavelength-routing module.
An optical system may need to transport or access wavelength channels in both the O-band and C-band while sharing a common optical path.
The 19CH module provides eight defined O-band channels and eleven defined C-band channels through a common port, enabling the two wavelength regions to be handled in one passive module.
For test setups requiring fixed channel access across two wavelength bands, the individual O-band and C-band ports can provide discrete access to each documented center wavelength.
The specified LC/PC interfaces and individually labeled channel fibers support channel-by-channel optical connection.
The product layout is marked “Channel optional,” indicating that wavelength-channel selection may be adaptable for project requirements.
Specific custom channel combinations should be confirmed before quotation.
GracyFiber provides passive wavelength-management and fiber-optic components covering:
For this O+C-Band DWDM configuration, the available specification defines the complete wavelength plan, optical performance, mechanical package, fiber construction, connector type, environmental conditions, and reliability requirements.
| Related Product | Why It Is Related |
|---|---|
| O-Band DWDM Module | Related wavelength-routing solution for systems using O-band DWDM channels only. |
| C-Band DWDM MUX/DEMUX | Related solution for conventional C-band dense wavelength multiplexing. |
| AAWG Module | Related multi-channel wavelength multiplexing technology for dense optical channel systems. |
| Ultra Compact WDM | Related option where reduced module dimensions are a primary design requirement. |
| DWDM OADM | Provides wavelength add/drop functionality in DWDM networks. |
| FWDM | Used when wider wavelength bands rather than closely spaced channels need to be separated. |
Need an O+C-Band hybrid DWDM module for a multi-wavelength optical system?
Send GracyFiber your required:
GracyFiber can review the required O+C-Band wavelength plan before quotation.
