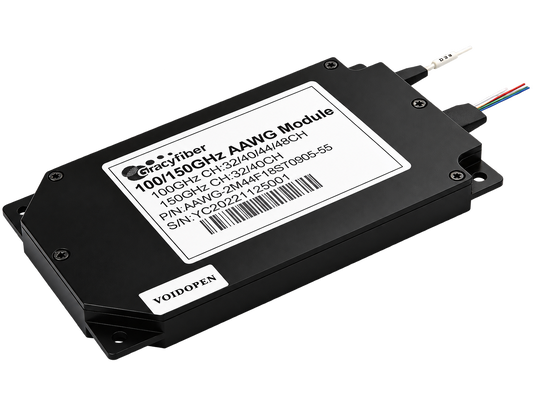

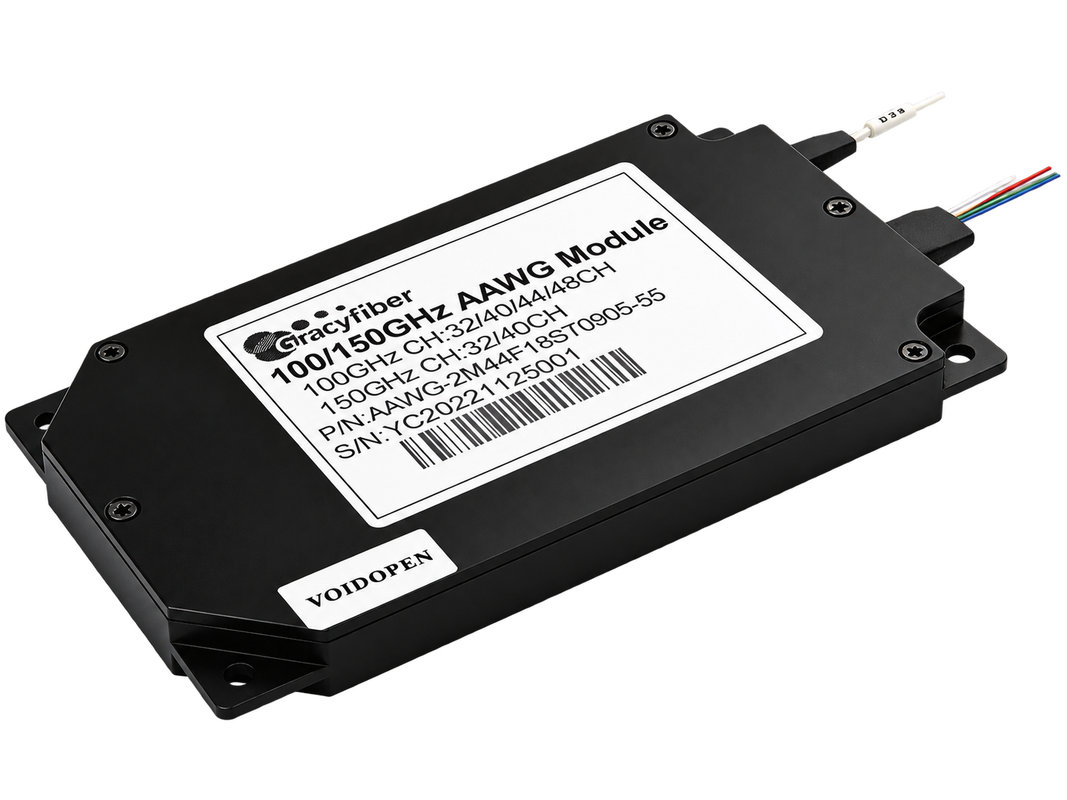

AAWG DWDM Multiplexer, 32–96CH, 50/100/150 GHz
GracyFiber AAWG DWDM Multiplexer is a high-density passive wavelength-division multiplexing component designed for C-band optical networks. Using an athermal arrayed waveguide grating architecture, the module does not require external electrical power or active temperature-control circuitry for its wavelength-routing function.
![]()
The source documentation specifically lists low insertion loss, low PDL, high isolation, ITU-T G.694.1 accuracy of ±0.05 nm, and Telcordia GR-1221.
Metro, long-haul, and DCI applications are identified in the supplied product description, while line monitoring, WDM networks, telecommunications, and fiber optical amplifiers are listed in the application section.
An AAWG DWDM Multiplexer is a passive wavelength-division multiplexing device based on an athermal arrayed waveguide grating architecture. The supplied GracyFiber product is designed for high-density C-band wavelength multiplexing without requiring an external power supply or active temperature-control circuit.
Available channel counts depend on the selected spacing:
The supplied specification provides both Flat-top and Gaussian configurations for selected AAWG versions, with different passband, insertion-loss, ripple, and isolation characteristics.
For example, the 100 GHz specification contains both Flat-top and Gaussian performance sets. Selection should therefore be based on the required optical passband and system specification.
The supplied specification lists:
ITU Grid C13–C64 or customized center wavelengths.
The documentation also states an ITU-T G.694.1 wavelength accuracy of ±0.05 nm.
The supplied specification lists LC/UPC or customized connectors and multiple package dimensions. For other connector or mechanical requirements, please provide the required configuration to GracyFiber for technical review.
| Parameter | Specification |
|---|---|
| Product Type | AAWG DWDM Multiplexer |
| Operating Wavelength | 1525–1565 nm |
| Center Wavelength | ITU Grid C13–C64 or Customized |
| Channel Count | 32 / 40 / 44 / 48 / 60 / 80 / 88 / 96, depending on configuration |
| Channel Spacing | 50 GHz / 100 GHz / 150 GHz |
| Technology | Flat-top / Gaussian, depending on configuration |
| Special Port | Monitor, 1310 nm (1260–1360 nm) [Need confirmation] |
| PDL | ≤0.5 dB |
| Return Loss | ≥40 dB |
| Directivity | ≥50 dB |
| Power Handling | ≤300 mW |
| Fiber Type | G67A1 / A2 / B3 or SMF-28 [Need confirmation] |
| Fiber Coating | 250 μm / 900 μm loose tube |
| Fiber-to-Fan-out Length | 500 mm |
| Fan-out-to-Connector Length | 500 mm |
| Connector | LC/UPC or Customized |
| Package Dimensions (H×W×D) | 120 × 70 × 11 mm / 482 × 250 × 44 mm / 482 × 230 × 44 mm |
| Operating Temperature | -5°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Parameter | 150 GHz Flat-top | 100 GHz Flat-top | 100 GHz Gaussian | 50 GHz Flat-top |
|---|---|---|---|---|
| Channel Count | 32 / 40 | 32 / 40 / 44 / 48 / 60 | 32 / 40 / 44 / 48 / 60 | 80 / 88 / 96 |
| Channel Spacing | 150 GHz / 1.2 nm | 100 GHz / 0.8 nm | 100 GHz / 0.8 nm | 50 GHz / 0.4 nm |
| Channel Passband, Min. | ±0.11 nm | ±0.11 nm | ±0.11 nm* | ±0.05 nm |
| Passband @ 1 dB, Min. | 0.92 nm | 0.38 nm | 0.20 nm | 0.22 nm |
| Passband @ 3 dB, Min. | 1.20 nm | 0.58 nm | 0.40 nm | 0.26 nm |
| Port Insertion Loss, Max. | 5.5 dB | 5.5 dB | 3.8 dB | 6.0 dB |
| Adjacent Isolation | ≥11 dB | ≥25 dB | ≥27 dB | ≥25 dB |
| Non-Adjacent Isolation | ≥23 dB | ≥29 dB | ≥30 dB | ≥29 dB |
| 1310 Port IL, Max. | 1.0 dB | 1.0 dB | 1.0 dB | 1.0 dB |
| Uniformity, Max. | 1.5 dB | 1.5 dB | 1.5 dB | 1.5 dB |
| Ripple, Max. | 0.5 dB | 0.5 dB | 1.5 dB | 0.5 dB |
*The source spreadsheet visually groups the ±0.11 nm value across the 100 GHz configuration; confirm that it applies to both the Flat-top and Gaussian versions.
Available channel counts:
Technology:
Available channel counts:
Technology options:
Available channel counts:
Technology:
The supplied specification lists:
Exact port configuration: [Need confirmation]
Listed options:
Fiber designation requires confirmation before publication.
The GracyFiber AAWG DWDM Multiplexer is designed to increase wavelength capacity over a single optical fiber by providing a dense set of precisely controlled C-band wavelength channels. Its arrayed waveguide grating architecture supports channel spacing down to 50 GHz, allowing as many as 96 channels to be integrated into a single wavelength-multiplexing platform.
The athermal design is passive and avoids the requirement for an external power supply or active thermal-control circuitry in the optical module. The supplied documentation specifies C-band operation from 1525 nm to 1565 nm and channel configurations from 32CH to 96CH.
Different spectral profiles are available according to channel-spacing requirements. The supplied specification includes 150 GHz Flat-top, 100 GHz Flat-top, 100 GHz Gaussian, and 50 GHz Flat-top configurations. Each configuration has its own insertion-loss, passband, isolation, and ripple specifications, allowing the optical design to be selected according to system requirements.
For example, the 100 GHz Gaussian version is specified with a maximum port insertion loss of 3.8 dB, while the 50 GHz Flat-top version supports 80, 88, or 96 channels with a maximum port insertion loss of 6.0 dB.
The module also provides a listed 1310 nm special-port configuration, low PDL, defined channel uniformity, return loss, and directivity. Multiple fiber, connector, and mechanical package configurations are provided in the supplied specification.
This makes the AAWG suitable for high-channel-count WDM links where fiber capacity, wavelength density, and passive optical operation are key design considerations.
In metro or long-haul optical networks, the AAWG can provide high-density wavelength multiplexing so that multiple optical channels can share an existing fiber infrastructure.
The supplied documentation specifically identifies metro and long-haul transmission as target scenarios for the module.
DCI links require increasing optical capacity between data-center locations. A high-channel-count AAWG allows multiple DWDM wavelengths to be carried over the same fiber pair, with channel spacing available down to 50 GHz.
The product description explicitly identifies Data Center Interconnect (DCI) as an application.
The specification includes a special monitor / 1310 nm port configuration, while the application information identifies both line monitoring and fiber optical amplifiers as use cases.
Exact monitor-port implementation should be confirmed according to the selected configuration.
GracyFiber supplies passive optical components for wavelength management, fiber connectivity, photonics, and optical communication systems.
For wavelength-division multiplexing projects, the related GracyFiber portfolio includes:
Customers can provide the required channel count, channel spacing, spectral profile, ITU wavelengths, special ports, fiber configuration, connector, package, and target optical specifications for technical evaluation.
| Related Product | Why It Is Related |
|---|---|
| DWDM Mux/Demux | Related dense wavelength multiplexing solution for standard DWDM channel configurations |
| CWDM Mux/Demux | Suitable where wider wavelength spacing and lower channel density are required |
| PM DWDM | Used when dense wavelength multiplexing must also maintain polarization |
| OADM | Adds or drops selected wavelength channels within WDM networks |
| MWDM / LWDM | Alternative wavelength-grid solutions for different optical network architectures |
| 1U Rack WDM Module | Related packaged format for multi-channel wavelength-management systems |
For an AAWG DWDM Multiplexer quotation or technical evaluation, please provide:
GracyFiber can review the wavelength plan and mechanical configuration according to your DWDM network requirements.
