| Model Number: | CWDM-18M271PL0905-55 |

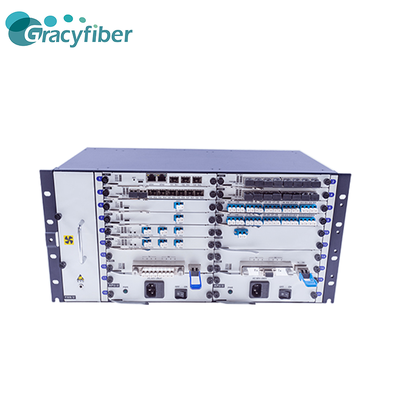

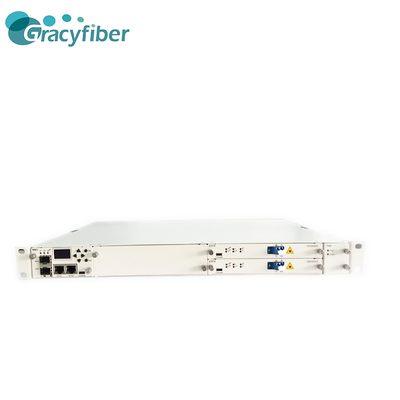

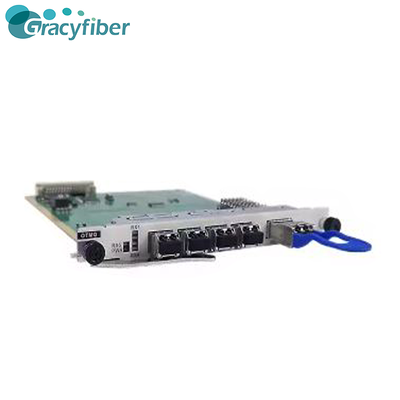

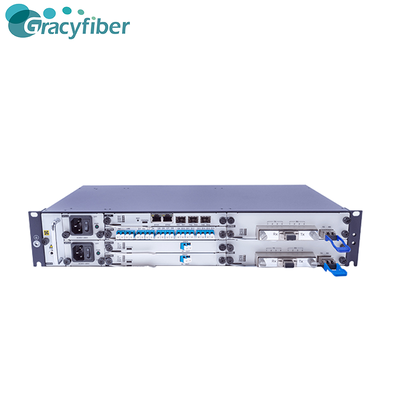

The CWDM Mux & Demux Module is a passive wavelength-division multiplexing device designed to combine and separate multiple optical channels over a single fiber link. Based on thin-film filter technology and micro-optical packaging, the module supports CWDM transmission across the 1260–1620 nm operating wavelength range with 20 nm channel spacing.
| Parameters | Unit | 4CH | 8CH | 12CH | 18CH | |
|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1260~1620 | ||||
| Channel Space | nm | 20 | ||||
| Center Wavelength | nm | ITU,ITU+1 | ||||
| Center Wavelength Accuracy | nm | ±0.8 | ||||
| Pass band @-0.5dB | nm | ±6.5 | ||||
| Port Insertion Loss | dB | ≤1.2 | ≤2.5 | ≤3.5 | ≤3.8 | |
| Link Loss | dB | ≤2.0 | ≤3.2 | ≤4.0 | ≤4.3 | |
| Isolation (dB) | Adjacent | dB | ≥30 | |||
| Non-adjacent | dB | ≥40 | ||||
| ITU-T G.694.2 | ||||
|---|---|---|---|---|
| Nominal central wavelengths(nm) | ||||
| 1 | 1270 | 10 | 1450 | |
| 2 | 1290 | 11 | 1470 | |
| 3 | 1310 | 12 | 1490 | |
| 4 | 1330 | 13 | 1510 | |
| 5 | 1350 | 14 | 1530 | |
| 6 | 1370 | 15 | 1550 | |
| 7 | 1390 | 16 | 1570 | |
| 8 | 1410 | 17 | 1590 | |
| 9 | 1430 | 18 | 1610 | |
The product series is available in 4-channel, 8-channel, 12-channel, and 18-channel configurations. It supports the ITU-T G.694.2 CWDM wavelength grid with 20 nm spacing across the 1270–1610 nm channel range.
Yes. The product family supports multiple package sizes, fiber protection structures, fiber lengths, and connector types. Available connector options in the specification include FC/UPC, FC/APC, SC/UPC, SC/APC, LC/UPC, and LC/APC, as well as unterminated configurations.
