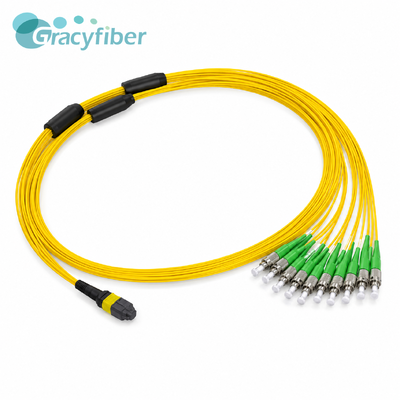

12-Core MTP/APC Female to 12CH FC/APC Breakout Cable with Corning SMF-28e Fiber

The 12-Core MTP/APC Female to 12CH FC/APC Breakout Cable is a single-mode multi-fiber assembly designed to convert one 12-fiber MTP interface into twelve individual FC/APC connections. It uses Corning SMF-28e fiber and a 12-core MTP/APC female connector on the trunk side.

• 12-core MTP/APC female interface — consolidates twelve single-mode fiber channels into one high-density connector.
• 12 individual FC/APC breakout channels — provides direct connection from the MTP trunk to separate optical ports or instruments.
• Corning SMF-28e fiber — provides a defined single-mode fiber platform for optical equipment integration.
• MTP-to-FC breakout structure — converts a multi-fiber interface into individually accessible fiber channels.
• 3.0 mm yellow PVC protection on the MTP side — supports trunk-side routing and mechanical handling.
• 2.0 mm yellow PVC protection on the FC/APC branches — provides individual branch protection and visual identification.
• 1 m specified cable length — supports compact equipment and rack-level interconnection, subject to final length definition.
• Cardboard packaging — provides the specified packaging method for shipment.

• Optical test equipment
• Multi-channel optical module testing
• Fiber optic laboratory setups
• Optical communication equipment integration
• Passive optical component testing
• Multi-port optical subsystems
• MTP-to-discrete connector conversion
• OEM fiber optic assemblies

Optical performance can be tested according to the agreed specification. Key parameters are verified before shipment when included in the approved inspection criteria. Test reports can be provided upon request. Customized inspection requirements can be discussed, including MTP channel mapping, polarity verification, connector inspection, branch identification, fiber length checks, and optical performance testing.

• High-density to discrete interface conversion: One 12-fiber MTP connector is distributed into twelve individual FC/APC channels for flexible system connection.
• Defined fiber and connector configuration: Corning SMF-28e fiber and specified APC interfaces support integration into single-mode optical systems.
• Project-specific channel mapping: MTP polarity, key direction, channel numbering, and FC/APC branch sequence can be defined according to the equipment interface.
• Mechanical configuration flexibility: Trunk protection, branch protection, cable length, and breakout arrangement can be reviewed against the installation requirement.
• Testing documentation support: Agreed optical and channel-mapping requirements can be included in the inspection and reporting process.

It converts one 12-fiber MTP/APC interface into twelve individual FC/APC connections for optical equipment, test systems, and multi-channel fiber assemblies.

The assembly contains 12 active single-mode fibers.

The specified fiber is Corning SMF-28e.

The trunk side uses a 12-core MTP/APC female connector.

The assembly provides twelve FC/APC connectors, one for each fiber channel.

The MTP trunk side uses a 3.0 mm yellow PVC tube, while the FC/APC breakout branches use 2.0 mm yellow PVC tubing.

No. The current information does not define Type A, Type B, Type C, or the MTP key orientation. These details should be confirmed before production.

Please provide the fiber type, MTP connector gender and polarity, key orientation, channel mapping, connector type, cable length, breakout length, package requirement, target optical specifications, and estimated quantity.

For a technical review or quotation, please provide the required operating wavelength, channel count, fiber type, connector type, fiber length, package requirement, target optical specifications, and estimated quantity. For MTP breakout assemblies, please also specify the MTP polarity, key orientation, channel-to-branch mapping, breakout length, and branch identification method.
