16CH CWDM Mux & Demux Module 1270–1610 nm with LC/UPC for CWDM Optical Networks

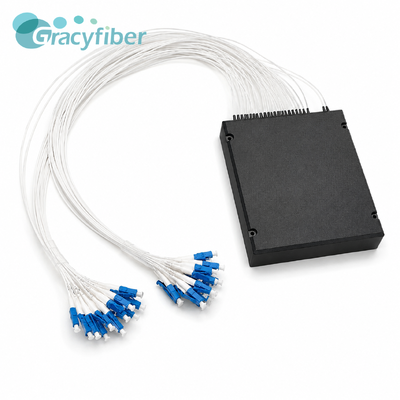

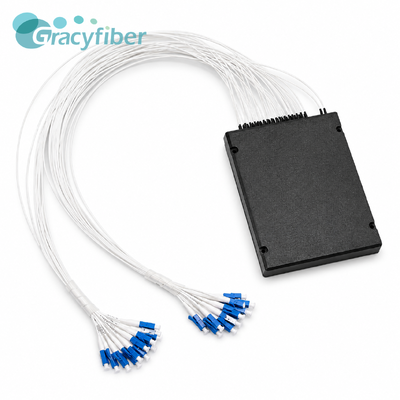

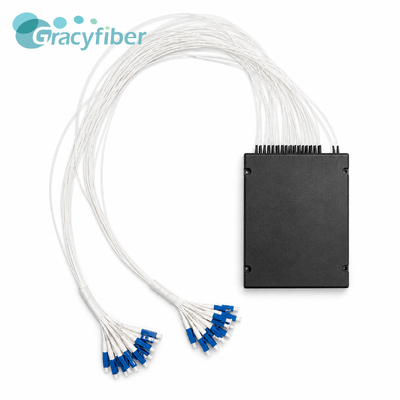

The 16CH CWDM Mux & Demux Module is a passive wavelength-division multiplexing device designed to combine or separate multiple optical channels within the 1270–1610 nm CWDM wavelength range, excluding 1390 nm and 1410 nm. It is supplied in a 140 × 115 × 18 mm ABS enclosure with 0.6 m fiber pigtails, 0.9 mm white loose tubes, and LC/UPC connectors.

• 16 CWDM wavelength channels across 1270–1610 nm — supports multi-wavelength transmission over a shared optical fiber infrastructure.
• 1390 nm and 1410 nm channels excluded from the wavelength plan — provides a defined 16-channel configuration for network designs based on the specified CWDM channel set.
• Passive Mux/Demux architecture — combines or separates optical wavelengths without requiring electrical power for the wavelength-routing function.
• 140 × 115 × 18 mm ABS module housing — provides an enclosed format suitable for integration into optical distribution and transmission systems.
• 0.6 m fiber pigtails with 0.9 mm white loose tubing — provides a protected fiber interface for equipment installation and internal optical routing.
• LC/UPC connector interface — supports compact detachable optical connections in CWDM system integration.
• Configurable optical interface — wavelength arrangement, Mux/Demux structure, fiber type and connector configuration can be discussed according to project requirements.

• CWDM transmission networks
• Metro and access optical networks
• Broadband optical networks
• PON transport and wavelength integration
• CATV optical distribution systems
• Fiber capacity expansion
• Multi-wavelength optical link aggregation
• Passive wavelength multiplexing and demultiplexing systems

Optical performance can be tested according to the agreed specification. Key parameters are verified before shipment based on the confirmed product requirements. Test reports can be provided upon request. Customized inspection requirements can also be discussed for projects requiring specific wavelength, insertion loss, isolation, return loss, PDL or other optical performance verification.

• Multi-channel system integration — the 16-channel CWDM architecture enables multiple optical wavelengths to be integrated into a single passive wavelength-routing module.
• Configuration flexibility — wavelength plan, Mux/Demux arrangement, fiber type, connector type, pigtail configuration and housing requirements can be discussed for specific network designs.
• Engineering specification support — technical requirements can be reviewed before production to align the module configuration with the target optical system.
• Test documentation support — optical test reports can be provided upon request according to the agreed inspection specification.
• Suitable for project validation and production integration — configuration requirements for initial evaluation and subsequent production applications can be discussed based on the project specification.

For quotation or technical evaluation of the 16CH CWDM Mux & Demux Module, please provide the required wavelength plan, Mux/Demux structure, port configuration, fiber type, optical performance requirements and order quantity. The final module configuration can then be reviewed against the target CWDM network architecture before quotation.
