| Model Number: | 941009008-02 |

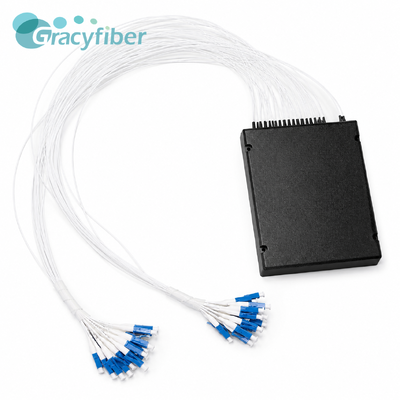

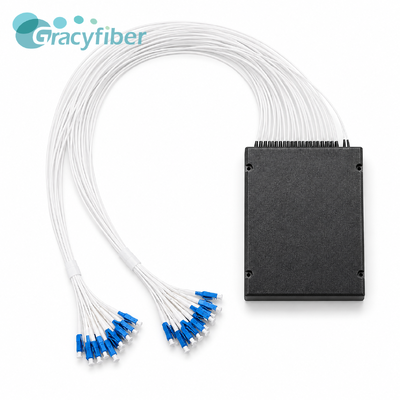

The 16CH CWDM Mux & Demux Module is designed to combine and separate multiple optical wavelengths over a single fiber infrastructure, supporting CWDM channels from 1270 nm to 1610 nm, excluding 1390 nm and 1410 nm.
Q1: Which wavelengths are included in this 16CH CWDM Mux & Demux Module?
The module supports 16 CWDM channels from 1270 nm to 1610 nm with 20 nm spacing, excluding the 1390 nm and 1410 nm channels. The wavelength set is therefore 1270, 1290, 1310, 1330, 1350, 1370, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610 nm.
Q2: Can the package, fiber length, or connector type be customized?
Yes. Package dimensions, fiber length, loose-tube configuration, and connector type can be configured according to the customer’s installation requirements. This version uses a 140 * 115 * 18 mm ABS enclosure, 0.6 m fiber leads with 0.9 mm white loose tubing, and LC/UPC connectors.
