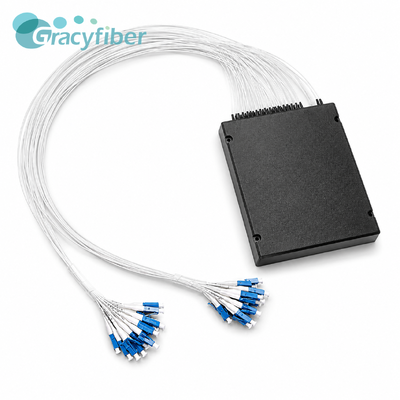

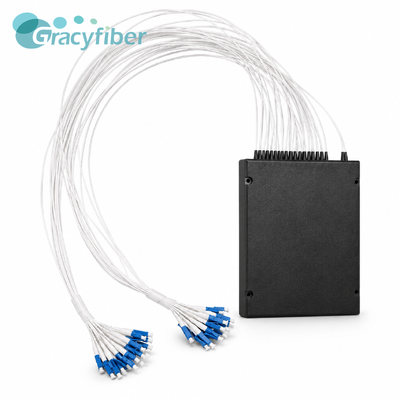

16CH CWDM Mux Demux Module 1270–1610nm 20nm Spacing LC UPC 0.9mm White Loose Tube 140×115×18mm ABS Box

The 16CH CWDM Mux & Demux Module is a passive wavelength division multiplexing (WDM) module for multi-wavelength fiber optic transmission systems, enabling the multiplexing and demultiplexing of multiple CWDM wavelength signals within a single fiber optic link.

• 16-Channel CWDM Design: Supports the multiplexing and demultiplexing of 16 signals with different center wavelengths within the same fiber optic link.
• 1270–1610nm Wavelength Coverage: Channel wavelengths include 1270, 1290, 1310, 1330, 1350, 1370, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610nm.
• 20nm Standard CWDM Channel Spacing: Channels are arranged according to CWDM wavelength spacing, facilitating compatibility with corresponding wavelength optical modules and transmission equipment.
• Mux & Demux Bidirectional Functionality: Can be used for multiplexing multi-wavelength signals at the transmitting end and for demultiplexing different wavelength signals at the receiving end.
• LC/UPC Optical Interface: Equipped with LC/UPC connectors, suitable for high-density fiber optic equipment and modular network installations.
• 0.6m Pigtail Configuration: The pigtail is protected by 0.9mm white loose tubing and is 0.6m in length, facilitating internal cabling and port management.
• ABS Box Encapsulation: Utilizing a 140*115*18mm ABS structure, it provides mechanical protection for the internal WDM optics and pigtail.
• Passive Optical Structure: The module requires no external power supply and is suitable for multiplexing and demultiplexing fixed-wavelength optical signals.
• Suitable for System Integration: Can be combined with CWDM optical modules, optical transmission equipment, and other passive fiber optic devices to build multi-wavelength transmission links.

• CWDM Wavelength Division Multiplexing Transmission Systems
• Metropolitan Area Networks and Access Networks
• PON Optical Networks
• Broadband Fiber Optic Networks
• CATV Optical Transmission Systems
• Multi-Service Fiber Optic Transmission
• Mobile Communication Fronthaul and Backhaul
• Data Communication Optical Links
• Fiber Optic Resource Expansion
• Customized WDM Network Equipment
