| Model Number: | 953111420 |

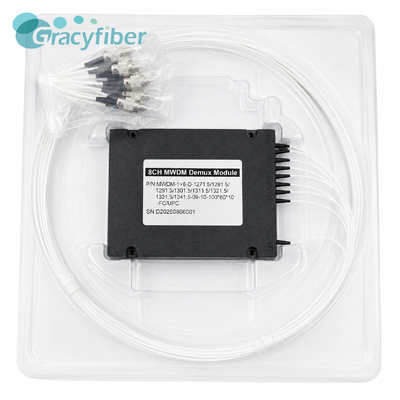

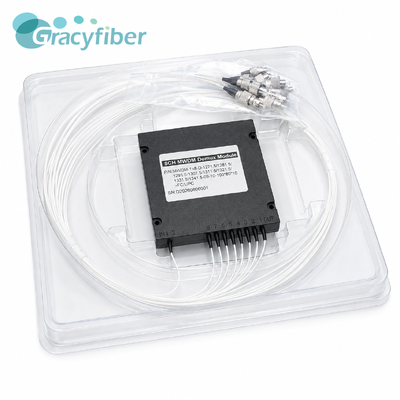

8CH MWDM Demux Module, 1271.5–1341.5 nm with FC/UPC Interfaces and ABS Box Package,gracyfiber
The 8CH MWDM Demux Module is a passive wavelength division component designed to separate eight optical channels from 1271.5 nm to 1341.5 nm in O-band systems. It supports a 10 nm channel spacing and is specified with insertion loss of ≤3.0 dB, ripple of ≤0.5 dB, return loss of ≥45 dB, directivity of ≥50 dB, and polarization dependent loss of ≤0.1 dB.
| Testing Data Sheet | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Product Name: | 8CH MWDM, 1271.5/1281.5/1291.5/1301.5/1311.5/1321.5/1331.5/1341.5nm , 100x80x10 Module with FC/UPC ,1.0±0.03m | |||||||||
| P/N: | MWDM-1x8-D-1271.5/1281.5/1291.5/1301.5/1311.5/1321.5/1331.5/1341.5-09-10-100*80*10-FC/UPC | |||||||||
| S/N: | D20260806002 | |||||||||
| Date: | 2026/8/6 | |||||||||
| Testing Data | ||||||||||
| Parameter | Units | 1271.5 | 1281.5 | 1291.5 | 1301.5 | 1311.5 | 1321.5 | 1331.5 | 1341.5 | |
| Wavelength Range | nm | 1260~1380 | ||||||||
| Operating Wavelength | nm | 1271.5 | 1281.5 | 1291.5 | 1301.5 | 1311.5 | 1321.5 | 1331.5 | 1341.5 | |
| Insertion Loss | dB | 1.79 | 1.48 | 1.25 | 1.14 | 1.08 | 0.94 | 0.76 | 0.54 | |
| Isolation Adjacent | dB | ≥25 | ||||||||
| Isolation Non-Adjacent | dB | ≥35 | ||||||||
| Ripple | dB | ≤0.5 | ||||||||
| Directivity | dB | >50 | ||||||||
| Return Loss | dB | >45 | ||||||||
| PDL | dB | ≤0.1 | ||||||||
| PMD | ps | ≤0.10 | ||||||||
| Connectors | / | FC/UPC | ||||||||
| Fiber Type | / | 0.9mm loose tube ,G657A1 | ||||||||
| Fiber Length | m | 1±0.03 | ||||||||
| Power Handing(mW) | mW | 300 | ||||||||
| Operating Temperature | °C | -5 ~ +75 | ||||||||
| Storage Temperature | °C | -40 ~ +85 | ||||||||
| Dimensions (LxWxH) | mm | 100x80x10 | ||||||||
| * testing data include connectors | ||||||||||
| Test By: | ||||||||||
| Parameter | Specification |
|---|---|
| Product Name | 8CH MWDM Demux Module |
| Part Number | MWDM-1x8-D-1271.5/1281.5/1291.5/1301.5/1311.5/1321.5/1331.5/1341.5-09-10-100*80*10-FC/UPC |
| Device Function | 1*8 MWDM demultiplexer |
| Channel Count | 8 |
| Operating Wavelength | 1260–1380 nm |
| Channel Wavelengths | 1271.5, 1281.5, 1291.5, 1301.5, 1311.5, 1321.5, 1331.5, 1341.5 nm |
| Channel Spacing | 10 nm |
| Channel Passband | ±3 nm at -0.5 dB bandwidth; final notation to be confirmed |
| Insertion Loss | ≤3.0 dB |
| Link Loss | ≤4.0 dB; definition to be confirmed |
| Ripple | ≤0.5 dB |
| Adjacent Isolation | >25 dB |
| Non-Adjacent Isolation | >35 dB |
| Polarization Dependent Loss | ≤0.1 dB |
| Polarization Mode Dispersion | <0.1 ps |
| Directivity | ≥50 dB |
| Return Loss | ≥45 dB |
| Maximum Optical Power | ≤300 mW |
| Fiber Type | G657A1 permitted for the current batch; standard configuration to be confirmed |
| Pigtail Protection | 0.9 mm white loose tube |
| Fiber Length | 1.00 ±0.03 m, including connectors |
| Connector Type | FC/UPC |
| Package Type | ABS box |
| Package Dimensions | 100 * 80 * 10 mm |
| Operating Temperature | -5°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| End-Face Inspection | 100% 3D inspection for internal control |
| Port Layout | One common port and eight wavelength ports |
Optical performance can be tested according to the agreed specification. Key parameters are verified before shipment, including insertion loss, ripple, return loss, directivity, and channel isolation when defined in the approved inspection criteria. Test reports can be provided upon request. Customized inspection requirements can be discussed, including connector inspection, channel-by-channel verification, and reporting format.
It separates eight optical wavelengths from a common input path into individual channel outputs in an MWDM system.
The channel set is 1271.5 nm, 1281.5 nm, 1291.5 nm, 1301.5 nm, 1311.5 nm, 1321.5 nm, 1331.5 nm, and 1341.5 nm.
The current product information is for a Demux module. However, the supplied mechanical image shows a Mux label, so the final product drawing and label should be confirmed before publication or order release.
The supplied specification table indicates a channel passband of ±3 nm at -0.5 dB bandwidth. This should be confirmed against the original “PB±3dB" wording.
The current configuration uses FC/UPC connectors, 0.9 mm white loose-tube pigtails, and a note that G657A1 fiber is permitted for the current batch.
The module uses a 100 * 80 * 10 mm ABS box. The fiber length is 1.00 ±0.03 m including connectors.
Yes. Test reports can be provided upon request, based on the agreed specification and inspection items.
Please provide the operating wavelength, channel count, channel plan, fiber type, connector type, fiber length, package requirement, target optical specifications, and estimated quantity.
For a technical review or quotation, please provide the required operating wavelength, channel count, channel wavelengths, fiber type, connector type, fiber length, package requirement, target optical specifications, and estimated quantity. If port labeling, end-face inspection records, or channel-by-channel data are required, these items should also be included in the inquiry.
