| Model Number: | 953111108 |

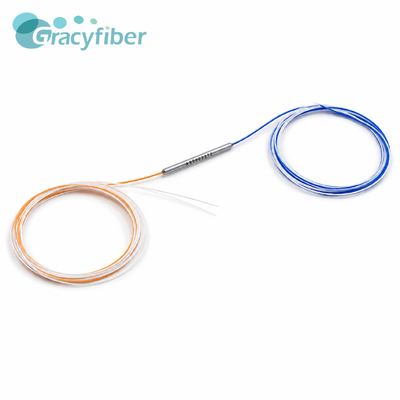

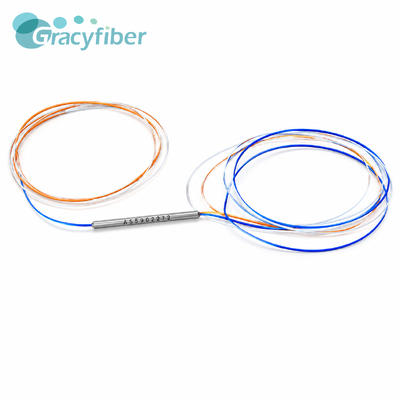

The 2*2 5/95 FBT Coupler is a fused biconical taper optical coupler designed to divide an input optical signal between a high-power branch and a low-power tap branch. With a nominal 95/5 coupling ratio, it is suitable for optical power monitoring, signal sampling, and customized fiber optic assemblies requiring controlled asymmetric power distribution.
| I1-O1 Coupling Ratio | I1-O1 IL(dB) |
I1-O2 Coupling Ratio | I1-O2 IL(dB) | I2-O1 Coupling Ratio | I2-O1 IL(dB) |
I2-O2 Coupling | I2-O2 IL(dB) |
|---|---|---|---|---|---|---|---|
| 96.26 | 0.33 | 3.74 | 14.44 | 96.32 | 0.36 | 3.68 | 14.54 |
| 96.15 | 0.32 | 3.85 | 14.29 | 96.30 | 0.39 | 3.70 | 14.55 |
| 96.32 | 0.31 | 3.68 | 14.49 | 96.06 | 0.38 | 3.94 | 14.25 |
| 96.14 | 0.35 | 3.86 | 14.31 | 96.11 | 0.31 | 3.89 | 14.24 |
| 96.26 | 0.30 | 3.74 | 14.41 | 96.40 | 0.28 | 3.60 | 14.56 |
| 96.36 | 0.32 | 3.64 | 14.55 | 96.25 | 0.31 | 3.75 | 14.40 |
| 96.35 | 0.28 | 3.65 | 14.49 | 96.44 | 0.32 | 3.56 | 14.65 |
| 96.37 | 0.34 | 3.63 | 14.58 | 96.27 | 0.28 | 3.73 | 14.40 |
| 96.40 | 0.33 | 3.60 | 14.61 | 96.26 | 0.29 | 3.74 | 14.40 |
| 96.20 | 0.35 | 3.80 | 14.38 | 96.32 | 0.36 | 3.68 | 14.54 |
| 96.15 | 0.35 | 3.85 | 14.32 | 96.11 | 0.35 | 3.89 | 14.28 |
| 96.34 | 0.28 | 3.66 | 14.48 | 96.30 | 0.31 | 3.70 | 14.47 |
| 96.14 | 0.38 | 3.86 | 14.34 | 96.28 | 0.37 | 3.72 | 14.50 |
| 96.15 | 0.39 | 3.85 | 14.37 | 96.40 | 0.35 | 3.60 | 14.63 |
| 96.30 | 0.35 | 3.70 | 14.50 | 96.10 | 0.36 | 3.90 | 14.28 |
| 96.31 | 0.38 | 3.69 | 14.55 | 96.18 | 0.28 | 3.82 | 14.29 |
The 95% branch carries most of the input optical power and is intended as the main transmission path. The 5% branch extracts a smaller portion of the signal for monitoring, measurement, feedback, or power-detection functions.
Yes. The coupling ratio, fiber length, loose-tube specification, fiber color, package dimensions, and connector configuration can be customized according to the application. This version uses a connector-free configuration with 0.9 mm loose tubes and a 3 * 50 mm package.
