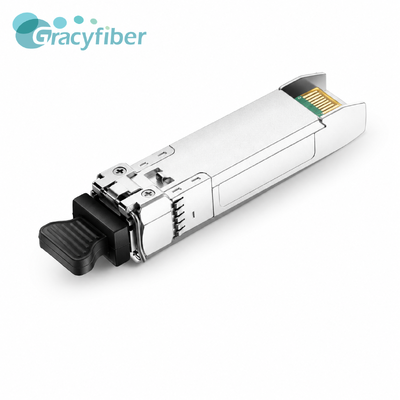

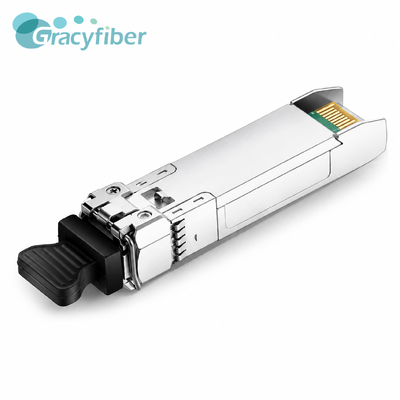

This 10G CWDM SFP+ Transceiver is a hot-swappable optical transceiver module designed for 10Gbps multi-rate optical links. It utilizes a CWDM DFB laser and a high-sensitivity PIN receiver, supporting multiple CWDM wavelengths from 1271 to 1611nm, with a transmission distance of up to 10km over G.652 single-mode fiber. The product features a Duplex LC interface, supporting rates from 9.9 to 11.3Gb/s, and is compatible with 10GBASE-LR/LW Ethernet, 4x/8x/10x Fibre Channel, and SONET OC-192/SDH STM-64 applications.
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
|---|---|---|---|---|---|---|
| Supply Voltage | Vcc | 3.135 | 3.30 | 3.465 | V | |
| Supply Current | Icc | 350 | mA | |||
| Inrush Current | Isurge | Icc+30 | mA | |||
| Maximum Power | Pmax | 1.5 | W | |||
| Transmitter Section: | ||||||
| Input differential impedance | Rin | 100 | Ω | 1 | ||
| Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) | V | -0.3 | 4 | V | ||
| Single ended data input swing | VinPP | 180 | 700 | mV | 2 | |
| Transmit Disable Voltage | VD | 2 | Vcc | V | 3 | |
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | V | ||
| Transmit Disable Assert Time | Tdessert | 10 | us | |||
| Receiver Section: | ||||||
| Rx Output Diff Voltage | Vo | 300 | 850 | mV | 3 | |
| Data output rise time | tr | 30 | ps | 4 | ||
| Data output fall time | tf | 30 | ps | 4 | ||
| LOS Fault | Vlosfault | 2 | Vcchost | V | 5 | |
| LOS Normal | Vlos norm | Vee | Vee+0.8 | V | 5 |
