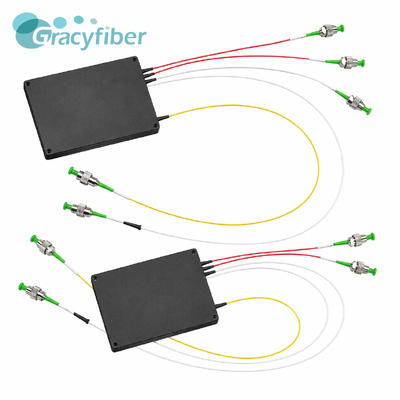

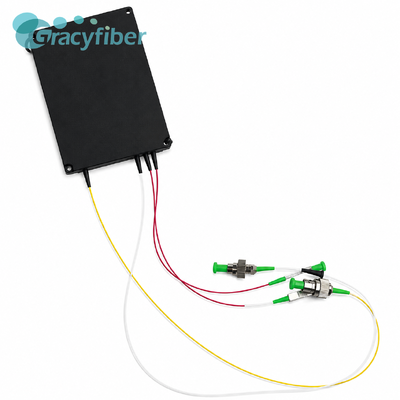

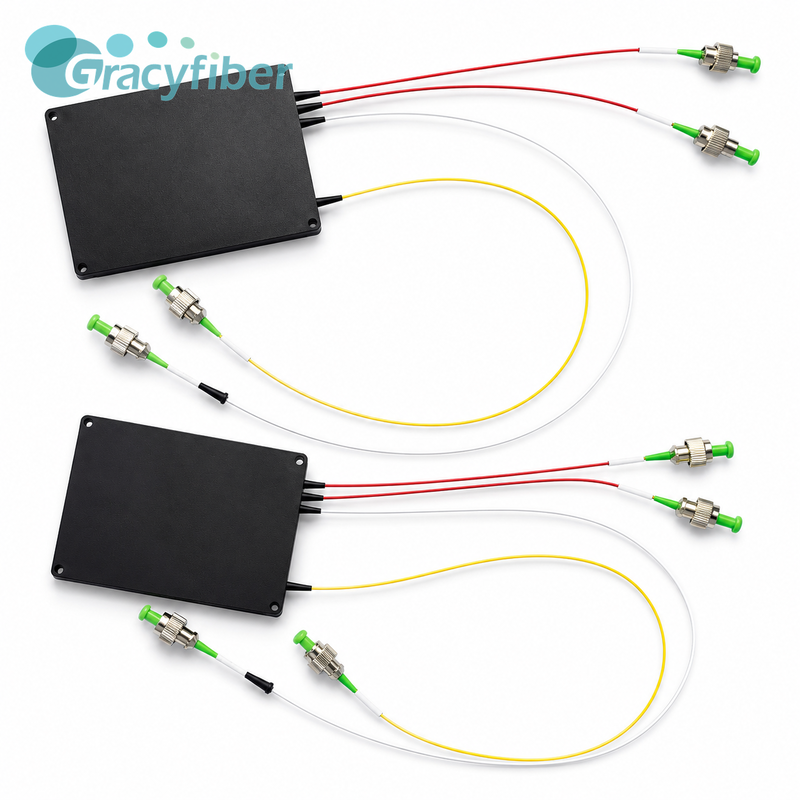

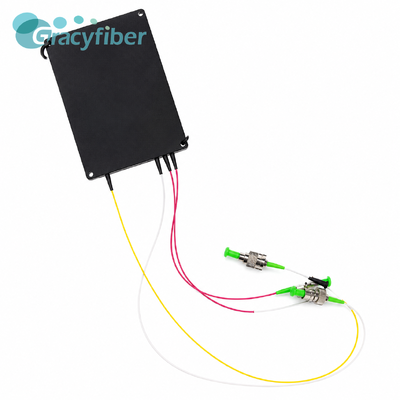

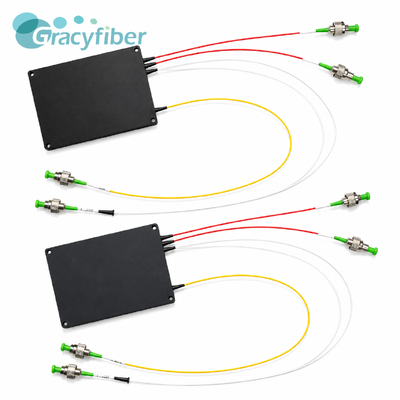

1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring

1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring

Detail Information
Product Description
Detail Information
Operating Wavelength:
1550 Nm
Fiber Type:
G.657.A1 Single-mode
Optical Path Difference:
10.0 ± 1.0 Mm
Package Dimensions:
80 * 58 * 8 Mm
Highlight:

1550nm SM fiber coupler module for interferometry

,

fiber optic coupler module for power monitoring

,

SM fiber coupler module for fiber sensing

Product Description

1550nm SM Fiber Coupler Module (1*2 5/95 + 1*2 50/50 + 2*2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring

1. Product Description

This 1550nm single-mode (SM) fiber coupler module is designed for applications involving multi-stage splitting, reference optical path construction, and interferometry.

2. Key Features

1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring
  • Integrates 1*2 (5/95), 1*2 (50/50), and 2*2 (50/50) coupling structures
  • Operating wavelength: 1550 nm; utilizes G.657.A1 single-mode fiber
  • Optical path difference (Path 1 – Path 2): 10.0 ± 1.0 mm
  • 1-input/3-output optical power distribution
  • 0.9 mm colored loose-tube cabling for clear port identification
  • Equipped with FC/APC connectors
  • ABS package dimensions: 80 * 58 * 8 mm
  • Fiber length and internal L1–L5 parameters customizable based on project requirements

3. Applications

  • Fiber optic interferometers
  • Fiber optic sensors
  • Power monitoring
  • Optical measurement systems
  • 1550 nm test platforms
  • OEM optical module integration
1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring 1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring 1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring 1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring 1550nm SM Fiber Coupler Module (1×2 5/95 + 1×2 50/50 + 2×2 50/50) for Interferometry, Fiber Sensing, and Power Monitoring
