1550nm Single Mode Cascaded FBT Coupler Module 5 95 and 50 50 G657A1 Fiber FC APC Custom Path Matched ABS Box

Detail Information
Product Description
Detail Information
Wavelength:
1550nm
Fiber Type:
G657A1 Single-mode
Fiber Length:
2m
Package Dimensions:
80 * 58 * 8mm
Highlight:

1550nm single mode FBT coupler module

,

G657A1 fiber FC APC coupler

,

custom path matched ABS box coupler

Product Description
1550nm Single Mode Cascaded FBT Coupler Module 5 95 and 50 50 G657A1 Fiber FC APC Custom Path Matched ABS Box
Product Overview:

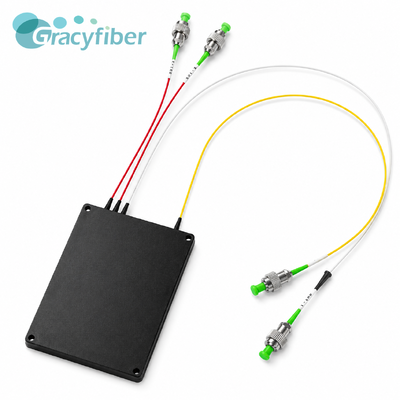

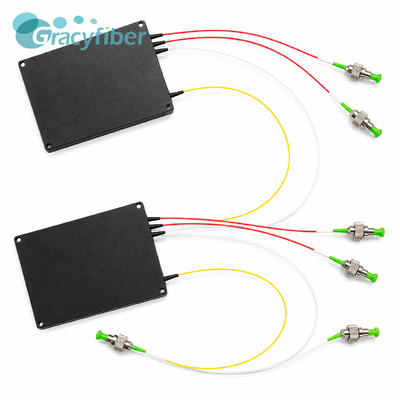

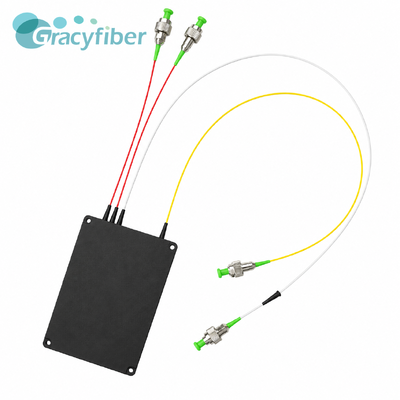

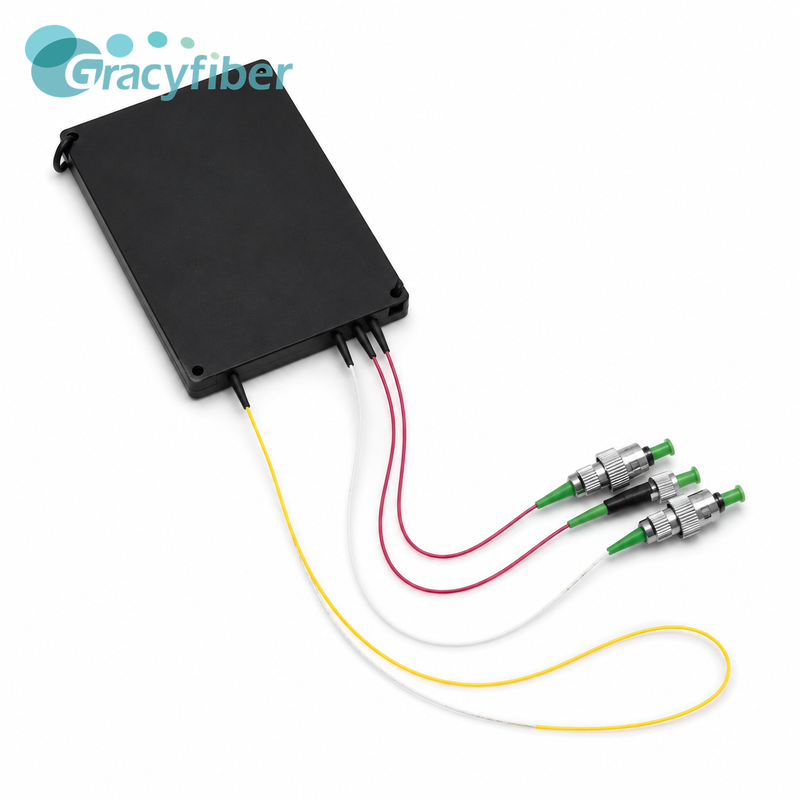

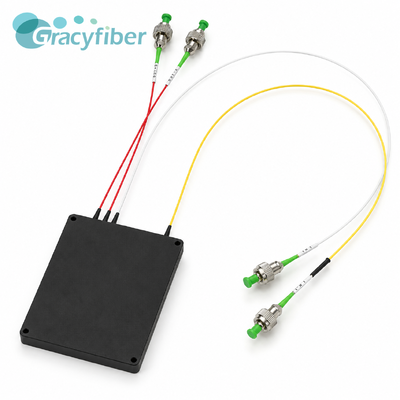

This 1550nm single-mode FBT coupler module integrates three sets of couplers—1*2 (5:95), 1*2 (50:50), and 2*2 (50:50)—to form a composite optical circuit with one input and three outputs. The product utilizes G657A1 single-mode fiber, FC/APC connectors, and an ABS package, ensuring stable multi-channel signal transmission through precise optical path matching.

Key Features:

1550nm Single Mode Cascaded FBT Coupler Module 5 95 and 50 50 G657A1 Fiber FC APC Custom Path Matched ABS Box

  • 1550nm single-mode FBT coupler module
  • 1-input, 3-output composite optical circuit
  • Integrated 1*2 5:95 coupler
  • Integrated 1*2 50:50 coupler
  • Integrated 2*2 50:50 coupler
  • G657A1 single-mode fiber
  • Fiber length: 2m
  • Optical path difference between Path 1 and Path 2: 10.0 ± 1.0mm
  • FC/APC connectors
  • 0.9mm colored loose tube
  • Yellow tubing at input
  • White tubing at OUT-1
  • Red tubing at OUT-2 and OUT-3
  • ABS package dimensions: 80 * 58 * 8mm
  • Customizable optical path lengths and pigtail configurations
Applications:

1550nm Single Mode Cascaded FBT Coupler Module 5 95 and 50 50 G657A1 Fiber FC APC Custom Path Matched ABS Box

  • 1550nm optical communication systems
  • Optical power distribution and monitoring
  • Fiber-optic interferometry systems
  • Fiber-optic sensing systems
  • Multi-stage optical signal splitting
  • Optical test and measurement equipment
  • Laser and optical circuit integration
  • Customized fiber-optic module packaging

1550nm Single Mode Cascaded FBT Coupler Module 5 95 and 50 50 G657A1 Fiber FC APC Custom Path Matched ABS Box
