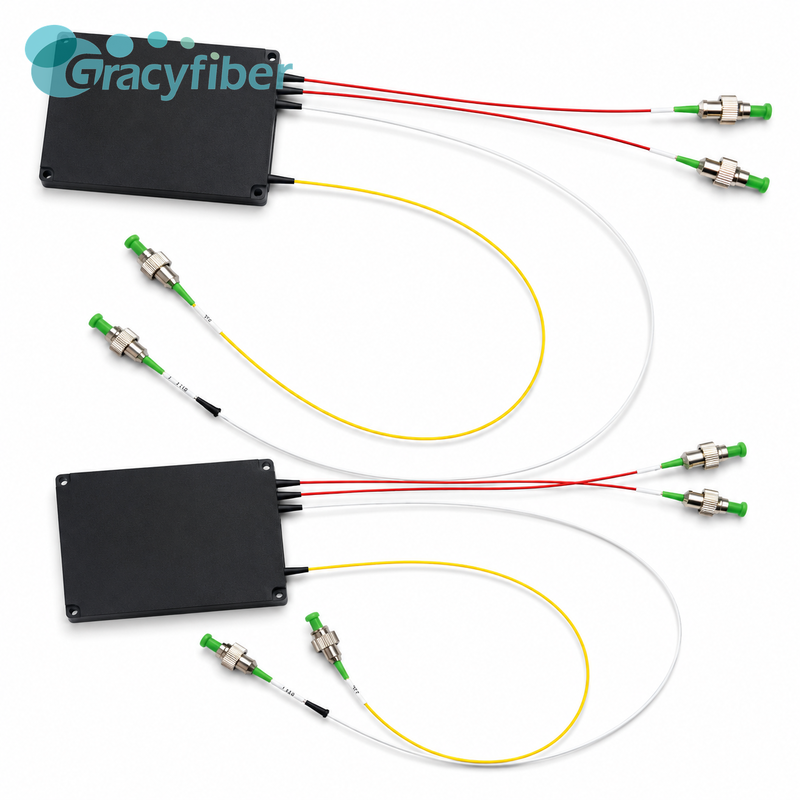

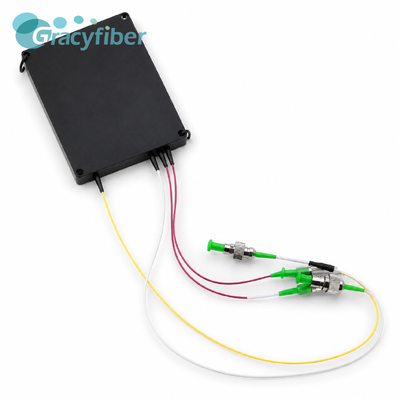

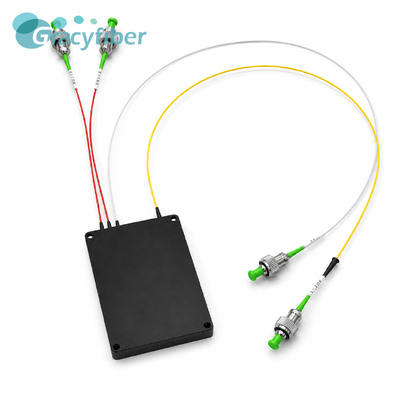

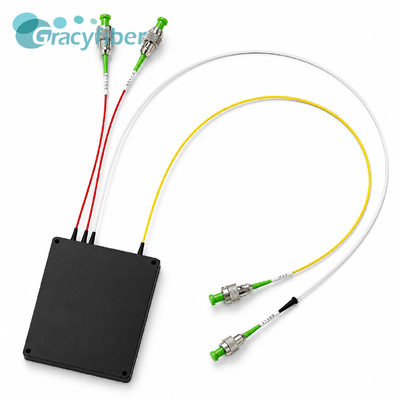

Hi1060 FBT Coupler Module 1060nm 1×2 5/95 + 1×2 50/50 + 2×2 50/50 Path-Matched Fiber Coupler for Fiber Laser, Interferometer, Optical Sensing and Power Monitoring

Hi1060 FBT Coupler Module 1060nm 1×2 5/95 + 1×2 50/50 + 2×2 50/50 Path-Matched Fiber Coupler for Fiber Laser, Interferometer, Optical Sensing and Power Monitoring

Detail Information
Product Description
Detail Information
Wavelength:
1060nm
Path Difference:
7 ± 1 Mm
Total Length:
1 ± 0.1 M
Module Dimensions:
80*58*8 Mm
Highlight:

Hi1060 FBT coupler module 1060nm

,

1×2 fiber coupler for laser

,

path-matched fiber coupler optical sensing

Product Description
Hi1060 FBT Coupler Module 1060nm 1*2 5/95 + 1*2 50/50 + 2*2 50/50 Path-Matched Fiber Coupler for Fiber Laser, Interferometer, Optical Sensing and Power Monitoring
1. Product Overview

This FBT 1060 coupler module utilizes Hi1060 optical fiber and consists of a cascaded configuration of 1*2 (5/95), 1*2 (50/50), and 2*2 (50/50) couplers, enabling optical power distribution and the construction of differential interference optical paths.

Hi1060 FBT Coupler Module 1060nm 1×2 5/95 + 1×2 50/50 + 2×2 50/50 Path-Matched Fiber Coupler for Fiber Laser, Interferometer, Optical Sensing and Power Monitoring
2. Features
  • Optical path length difference controlled at: Path 1 – Path 2 = 7 ± 1 mm
  • Total length from IN to OUT-1 is 1 ± 0.1 m
  • Path from IN to OUT-1 is 3 ± 0.1 m shorter than the path from IN to OUT-2/OUT-3
  • Compact 80*58*8 mm ABS module package facilitates system integration
  • Equipped with 0.9 mm colored loose tubes for easy identification of input and output ports
  • FC/APC connectors installed on IN, OUT-1, OUT-2, and OUT-3 ports
  • Uses Lightel-brand FC/APC connectors to minimize the impact of end-face reflections
  • Internal fusion splice points and lengths L1–L5 can be adjusted based on specific assembly and optical path matching requirements
  • Customization available for coupling ratios, fiber lengths, connectors, and package dimensions
3. Applications
  • 1060nm fiber-optic interference systems
  • Differential optical path and optical path length matching modules
  • Fiber-optic sensing and precision measurement
  • Fiber-optic gyroscopes and interferometric sensors
  • 1064nm fiber laser systems
  • Coherent optical testing platforms
  • Optical power sampling and monitoring
  • Customized laboratory optical paths and scientific research equipment
Hi1060 FBT Coupler Module 1060nm 1×2 5/95 + 1×2 50/50 + 2×2 50/50 Path-Matched Fiber Coupler for Fiber Laser, Interferometer, Optical Sensing and Power Monitoring
