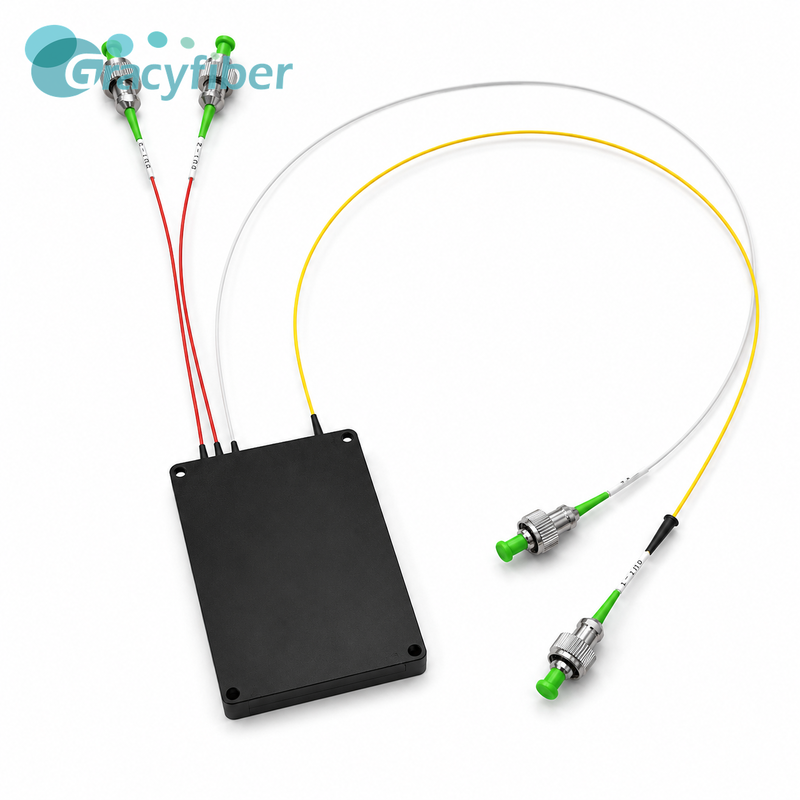

1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing

1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing

Detail Information
Product Description
Detail Information
Wavelength:
1060nm
Split Ratio:
5/95 + 50/50 + 50/50
Control Length:
7 ± 1 Mm
Dimensions:
80 * 58 * 8 Mm
Highlight:

1060nm FBT optical coupler module

,

Hi1060 fiber split ratio coupler

,

FC APC fiber laser coupler

Product Description
1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing
1. Product Description

Hi1060 FBT Coupler Module (1060nm): Path-Matched Fiber Coupler (1*2 5/95 + 1*2 50/50 + 2*2 50/50) for Fiber Lasers, Interferometers, Optical Sensing, and Power Monitoring

This Hi1060 FBT Coupler Module is a multi-stage fiber coupler module based on Fused Biconical Taper (FBT) technology.

2. Key Features

1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing

  • Integrates multi-stage FBT coupling structures (1*2 5/95, 1*2 50/50, 2*2 50/50)
  • Uses Hi1060 fiber; suitable for light source systems operating near 1060nm
  • Supports 1-input, 3-output optical path distribution
  • Path 1 to Path 2 control length: 7 ± 1 mm
  • ABS box-type package; dimensions: 80 * 58 * 8 mm
  • 0.9mm colored loose-tube cabling for easy port identification
  • FC/APC connectors; suitable for low-reflection optical systems
  • Color coding: Yellow (Input), White (OUT-1), Red (OUT-2 / OUT-3)
  • Reduces the number of fusion splices and cabling complexity associated with cascading multiple components
  • Suitable for modular optical integration and custom optical systems

1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing

1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing

3. Applications
  • Fiber laser systems
  • Optical interferometers
  • Fiber optic sensors
  • Power monitoring
  • Optical test platforms
  • 1060nm light source distribution systems
  • Multi-arm interferometric optical paths
  • OEM optical module integration

1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing

1060nm Cascaded FBT Optical Coupler Module Hi1060 Fiber 5 95 50 50 Split Ratio FC APC for Fiber Laser and Sensing
