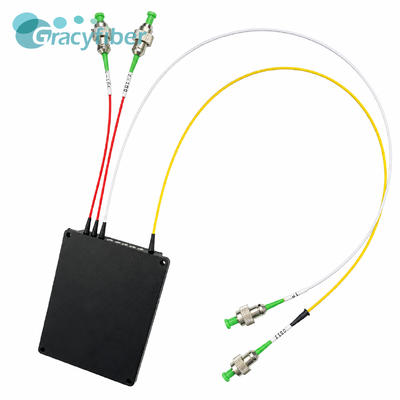

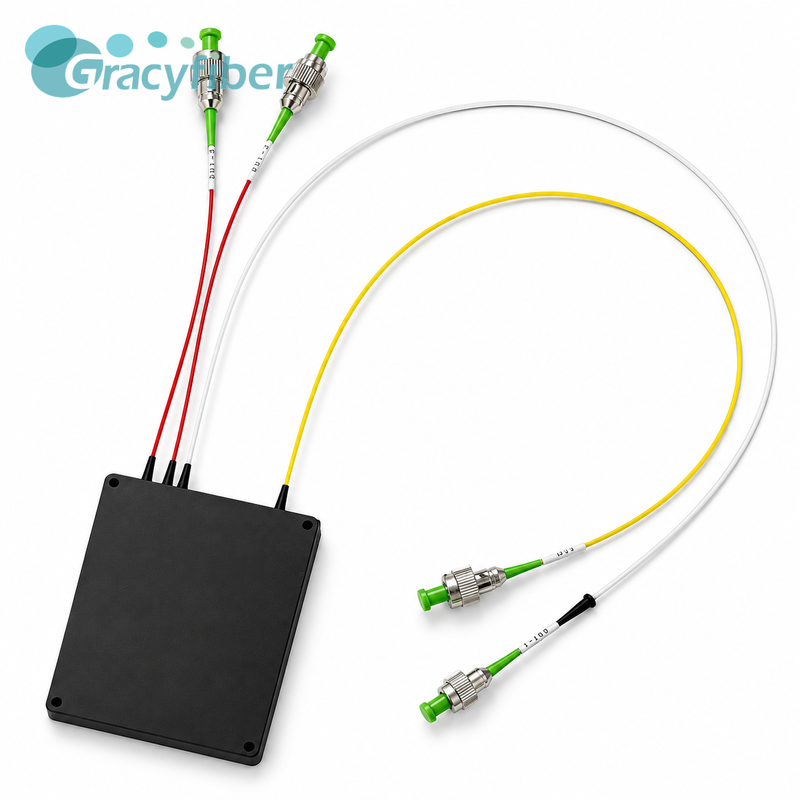

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

Detail Information
Product Description
Detail Information
Wavelength:
1060nm
Fiber Type:
HI1060 Single-mode Fiber
Optical Path Difference:
7 ± 1 Mm
Fiber Length:
1 ± 0.1 M
Highlight:

1060nm FBT coupler module for fiber laser

,

Hi1060 fiber cascaded optical coupler

,

FC APC ABS box coupler module

Product Description

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

Product Overview:

The FBT 1060 coupler module integrates three FBT (Fused Biconical Taper) coupler units—1×2 5:95, 1×2 50:50, and 2×2 50:50—to form a composite optical circuit with one input and three outputs.

Key Features:

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System

  •   Composite FBT coupler module with 1 input and 3 outputs
  •   Integrated 1×2 5:95 splitter
  •   Integrated 1×2 50:50 splitter
  •   Integrated 2×2 50:50 coupler
  •   HI1060 single-mode fiber
  •   Optical path difference of 7 ± 1 mm between Path 1 and Path 2
  •   Fiber length of 1 ± 0.1 m (IN to OUT-1)
  •   FC/APC connectors
  •   0.9 mm colored loose tube
  •   Yellow tubing at input
  •   White tubing at OUT-1
  •   Red tubing at OUT-2 and OUT-3
  •   ABS module dimensions: 80 × 58 × 8 mm
  •   Built-in HI1060 FBT module
  •   Customizable pigtails and optical path lengths

Applications:

  •   1060 nm fiber laser systems
  •   Optical power distribution and monitoring
  •   Fiber-optic interferometry systems
  •   Fiber-optic sensing systems
  •   Laser test and measurement equipment
  •   Multi-stage optical signal splitting
  •   Optical experimental platforms
  •   Customized fiber-optic module integration

1060nm FBT Coupler Module Hi1060 Fiber Cascaded 5 95 and 50 50 Optical Coupler Module FC APC ABS Box for Fiber Laser System
