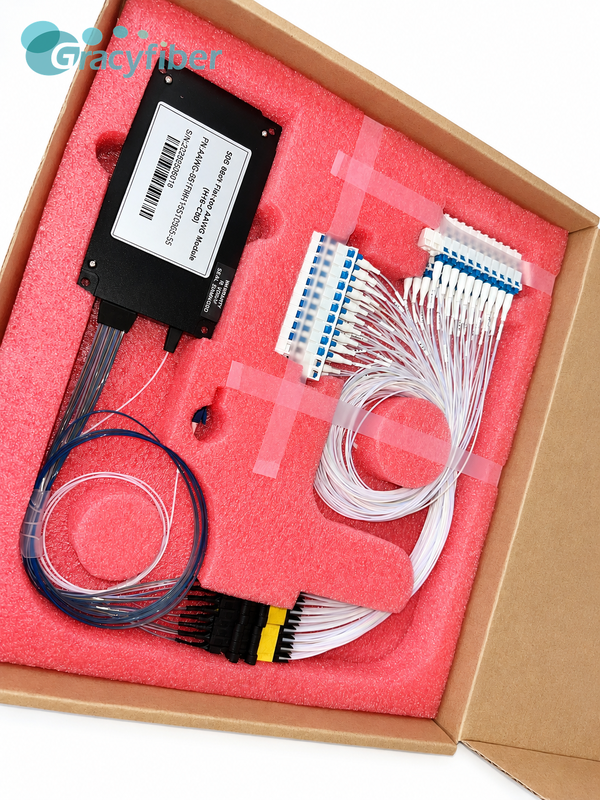

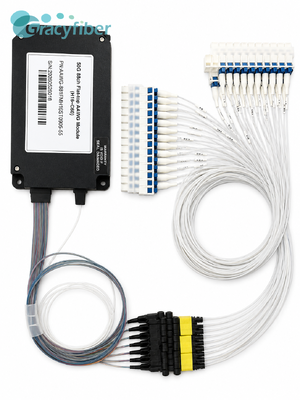

100GHz 48CH DWDM AAWG Module Flat Top C15 C62 Low Loss Fiber Optic Mux Demux with LC UPC Connector
1. Product Overview
The flat-top 100GHz DWDM AAWG 48CH module covers C15~C62 channels and is suitable for high-capacity dense wavelength division multiplexing (WDM) systems.
2. Core Product Features
| Parameters | Unit | 48CH 100G DWDM AAWG Module |
| Channel | CH | 48 (C14~C61) |
| Chip type | / | Flat Top |
| Operating wavelength | nm | 1525~1565 |
| Channel Spacing | GHz | 100 |
| Channel Pass band | nm | ITU±0.11 |
| Insertion Loss | dB | ≤5.8 |
| Bandwidth@1dB | nm | ≥0.4 |
| Bandwidth@3dB | nm | ≥0.6 |
| Adjacent Isolation | dB | ≥23 |
| Non-adjacent Isolation | dB | ≥29 |
| Non-adjacent Crosstalk | dB | ≥21 |
| Return Loss | dB | ≥45 |
| Directivity | dB | ≥50 |
| Channel Uniformity | dB | ≤1.5 |
| Ripple | dB | ≤0.5 |
| PDL | dB | ≤0.5 |
| Chromatic Dispersion | ps/nm | ±20 |
| Operating Temperature | °C | -5~+65 |
| Packaging dimension | mm | L120*W70*H11 |
3. Applications
