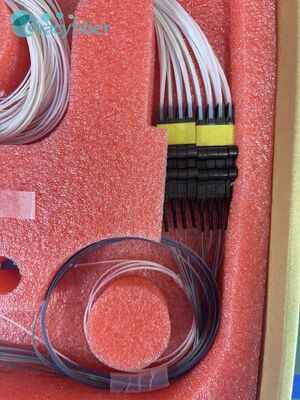

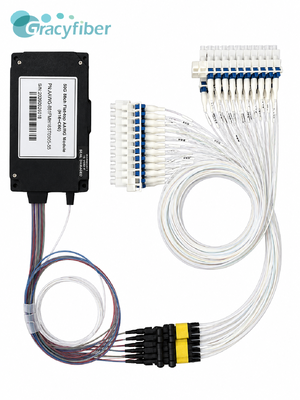

32 Channel 100GHz Gaussian DWDM AAWG Module C21 C52 with 1310nm FWDM LC UPC Fiber Optic Multiplexer Demultiplexer
1. Product Overview
This product is a Gaussian-type modular 32-channel 100G DWDM AAWG module, covering channels C21–C52, and integrating a 1310 nm broadband port, operating within the 1260–1360 nm range.
2. Core Product Features
| Parameters | Unit | 40CH 100G DWDM AAWG Module |
|---|---|---|
| Channel | CH | 40 (C21~C60) |
| Chip type | Gaussian | |
| Operating wavelength | nm | 1500~1570 |
| Channel Spacing | GHz | 100 |
| Channel Pass band | nm | ITU±0.11 |
| Insertion Loss | dB | ≤3.5 |
| Bandwidth@1dB | nm | ≥0.2 |
| Bandwidth@3dB | nm | ≥0.4 |
| Adjacent Isolation | dB | ≥26 |
| Non-adjacent Isolation | dB | ≥31 |
| Non-adjacent Crosstalk | dB | ≥21 |
| Return Loss | dB | ≥40 |
| Directivity | dB | ≥50 |
| Channel Uniformity | dB | ≤1.5 |
| Ripple | dB | ≤1.5 |
| Chromatic Dispersion | ps/nm | ±20 |
| Operating Temperature | °C | -5~+65 |
| Packaging dimension | mm | L120*W70*H11 |
3. Applications
