Gaussian type 100GHz DWDM AAWG

Gaussian type 100GHz DWDM AAWG

Detail Information
Product Description
Detail Information
Channel Count:
48CH DWDM (C14~C61) + 1CH CWDM 1510nm
Channel Spacing:
100GHz
Insertion Loss:
≤3.5dB
Adjacent Isolation:
≥26dB
Highlight:

100GHz DWDM AAWG module

,

Gaussian type DWDM Mux Demux

,

DWDM AAWG with 100GHz spacing

Product Description
Gaussian type 100GHz DWDM AAWG
Product Overview

The Gaussian 100GHz DWDM AAWG module integrates 48 DWDM channels (C14~C61) and a 1510nm CWDM upgrade terminal, using a compact ABS package. All interfaces are equipped with LC/UPC connectors.

Core Product Features

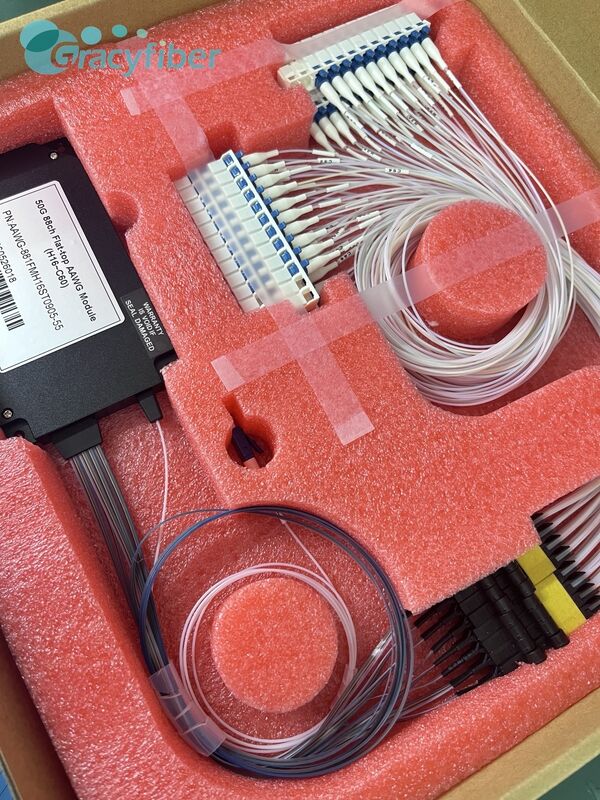

Gaussian type 100GHz DWDM AAWG 0

  • 48CH DWDM (C14~C61) + 1CH CWDM 1510nm design
  • 100GHz channel spacing, Gaussian AAWG structure
  • Insertion loss IL≤3.5dB
  • Adjacent isolation ≥26dB, non-adjacent isolation ≥30dB
  • LC/UPC interface, 0.9mm fiber optic loose tube
  • ABS package size 120×80×18mm, supports customized fiber length

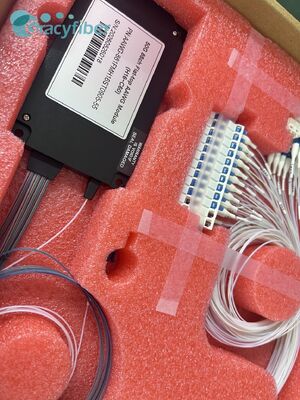

Gaussian type 100GHz DWDM AAWG 1

Application Scope
  • 100G integrated wavelength division multiplexing systems
  • DWDM dense wavelength division multiplexing transmission systems
  • Metropolitan area network, backbone network and access network expansion
  • Data center interconnection DCI (Digital Coaxial Interconnection) optical transmission equipment and wavelength division multiplexing (WDM) system integration; CWDM/DWDM hybrid wavelength division upgrade solution; high-capacity multi-wavelength fiber optic communication system.
