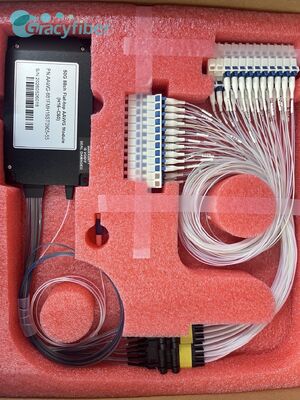

Custom 48CH Gaussian AAWG Module (C14-C61) | Integrated 1510nm CWDM | Max IL 3.5dB | Gracyfiber Telecom WDM Component

Custom 48CH Gaussian AAWG Module (C14-C61) | Integrated 1510nm CWDM | Max IL 3.5dB | Gracyfiber Telecom WDM Component

Detail Information
Product Description
Detail Information
Channel Count:
48CH
Wavelength Range:
C14-C61
Insertion Loss:
≤ 3.5 DB
Dimensions:
120*80*18mm
Highlight:

48CH Gaussian AAWG DWDM module

,

1510nm CWDM integrated WDM component

,

low IL 3.5dB telecom DWDM mux

Product Description

Custom 48CH Gaussian AAWG Module (C14-C61) | Integrated 1510nm CWDM | Max IL 3.5dB | Gracyfiber Telecom WDM Component

Product Overview

Gracyfiber's Gaussian-type 48-channel 100G DWDM AAWG module innovatively integrates a 1510nm CWDM upgrade terminal, specifically designed for 100G integrated wavelength division multiplexing (WDM) systems.

Product Features
  • Gaussian 48-channel DWDM (C14-C61)
  • Integrated single-channel 1510nm CWDM upgrade port
  • 100GHz standard ITU grid spacing
  • Extremely low insertion loss (≤ 3.5 dB)
  • Customized stepped-length pigtail design
  • Full-port configuration with LC/UPC connectors
  • 120*80*18mm compact ABS enclosure

Custom 48CH Gaussian AAWG Module (C14-C61) | Integrated 1510nm CWDM | Max IL 3.5dB | Gracyfiber Telecom WDM Component 0

Applications
  • 100G integrated wavelength division multiplexing system
  • High-capacity long-haul trunk and metropolitan area network transmission
  • High-density data center interconnect (DCI)
  • Optical add-drop multiplexer (OADM) node deployment
  • Smooth expansion and upgrade of 5G bearer networks
Tags:

WDM Device

WDM Wavelength Division Multiplexing

Optical Filtering
