48-Channel DWDM + 1 CWDM Upgrade Port

Supports 48 DWDM channels from C14 to C61, and integrates an independent 1510 nm CWDM output port for easy system expansion and upgrades.
100GHz Standard Channel Spacing

Utilizes a 100GHz DWDM channel design, with channel passband meeting ITU ±0.11 nm, adaptable to standard dense wavelength division multiplexing (DWDM) communication systems.
Low Insertion Loss Design

Module insertion loss ≤3.5 dB, helping to reduce link power budget pressure and improve system transmission stability.
Excellent Isolation and Crosstalk Performance

Adjacent channel isolation ≥26 dB, non-adjacent channel isolation ≥30 dB, non-adjacent crosstalk ≥21 dB, ensuring stable transmission of multi-channel signals.

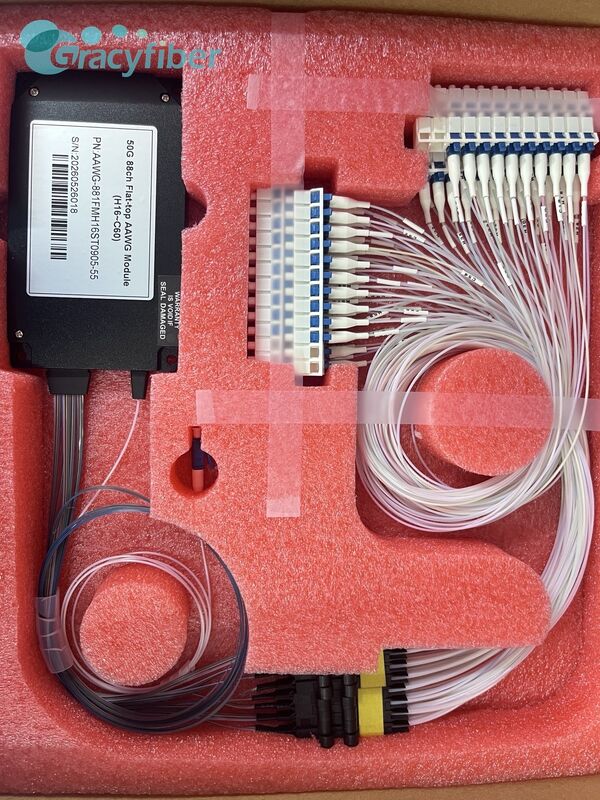

Compact packaging and clear fiber output configuration.

Utilizing a 120*80*18 mm ABS enclosure and 0.9 mm loose tube fiber optic tubing, all interfaces are LC/UPC; different band configurations include 25–55 cm extension lengths, with a 75 cm common end and a 60 cm CWDM upgrade end, facilitating engineering cabling and installation.

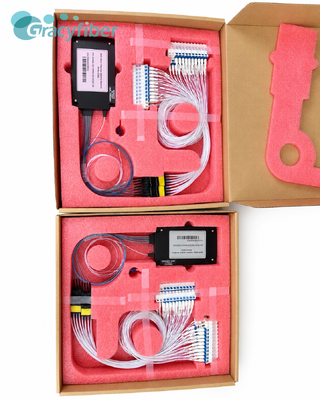

100G 48-Channel DWDM AAWG Gaussian Block | 100GHz Spacing C-Band | 1510nm Upgrade Port | Custom Fiber Lengths, LC/UPC Connectors 0

Applications

100G integrated wavelength division multiplexing (WDM) transmission systems
DWDM dense wavelength division multiplexing/demultiplexing systems
Metropolitan area networks, backbone networks, and carrier optical transmission networks
Data center interconnection and high-capacity optical link expansion
CWDM/DWDM hybrid wavelength division multiplexing system upgrades
Integrated applications of optical modules, transmission equipment, and wavelength division multiplexing platforms.
