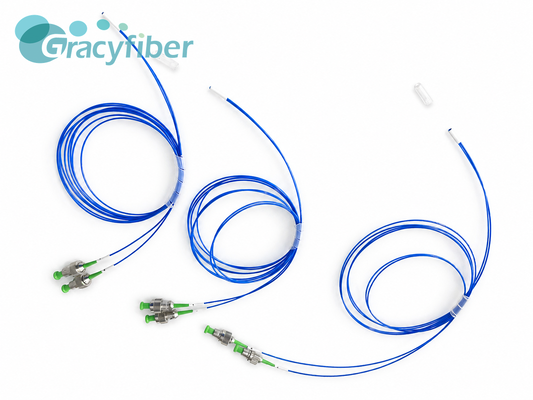

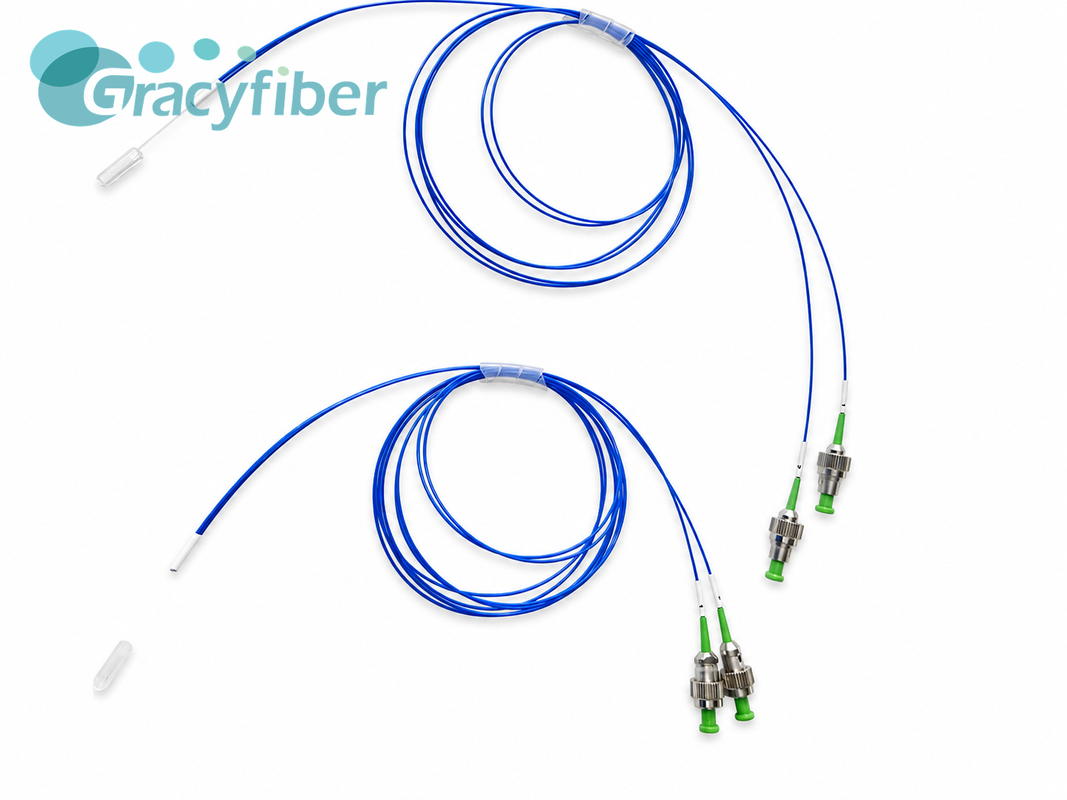

The 24CH PMFA polarization-maintaining fiber array uses a Quartz Glass substrate and Corning PM1550 polarization-maintaining fiber, featuring a 0° polishing angle, 127μm channel pitch, and FC/APC connectors.
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 24 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 127 | OK |
| Polishing Angle | Degree | 0° | OK |
| Package(L)X(W)X(H) | mm | 12*5.7*1.5 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Extinction Ratio | dB | ≥18 | 25 |
| FA PM Fiber Alignment | / | PMII | OK |
| Connctor PM Fiber Alignment | / | Slow Axis Alignment Key |
OK |
| Fiber Type | / | PM1550(Corning) | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | Blue | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
