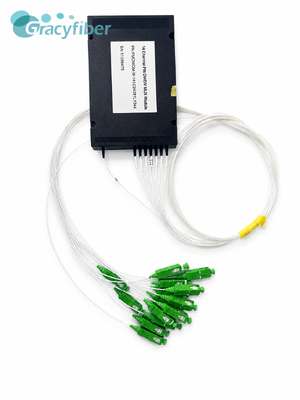

8CH DWDM Wavelength Division Multiplexing/Demultiplexing Module with 1310nm Monitor Port | Passive Optical Devices
This 8CH DWDM wavelength division multiplexing/demultiplexing module is suitable for 1525–1565nm C-band optical transmission systems, enabling multiplexing and demultiplexing of multiple wavelengths.
| Parameter | Unit | Value | |||||
|---|---|---|---|---|---|---|---|
| Operating Wavelength | nm | 1525~1565 | |||||
| Special Port | nm | Monitor,1310 (1260~1360) | |||||
| Center Wavelength | nm | ITU Grid(C11 ~C64) or Customized | |||||
| Channel Spacing | nm | 100GHz (0.8nm), 200G(0.8nm) | |||||
| Channel Passband | Min | nm | ±0.11 (100GHz), ±0.25 (200GHz), | ||||
| Channel | - | 8CH | |||||
| Port Insertion Loss | Max | dB | 2.8 | ||||
| Isolation | Adjacent | dB | ≥30 | ||||
| Non-adjacent | dB | ≥40 | |||||
| 1310 Port | Max | dB | 1.0 | ||||
| Ripple | Max | dB | 0.5 | ||||
| PDL | Max | dB | 0.5 | ||||
| Return Loss | Min | dB | 40 | ||||
| Directivity | Min | dB | 50 | ||||
| Power Handing | Max | mW | 300 | ||||
| Fiber Type | - | G67A1/ A2/ B3 or SMF-28 | |||||
| Fiber Coating | um | 250 µm / 900 µm loose tube | |||||
| Fiber Length | mm | 1000 | |||||
| Connector | - | LC/UPC or Customized | |||||
| Dimensions (HxWxD) | mm | 80x58x8, 120x80x18, 155x129x29, 482x250x44 | |||||
| Operating Temperature | °C | -5~65 | |||||
| Storage Temperature | °C | -40~85 | |||||
We possess complete capabilities in passive optical devices, from optical design and wavelength planning to precision assembly and packaging manufacturing. For DWDM module applications, we focus on filter selection, optical path design, fiber coupling, and structural stability to help customers achieve stable optical performance and reliable system integration.
