4CH SMFA Fiber Optic Array Patch Cord | SMF-28e | FC/APC | 0° Coated Capillary End

4CH SMFA Fiber Optic Array Patch Cord | SMF-28e | FC/APC | 0° Coated Capillary End

Model Number: 910108416-35
Detail Information
Product Description
Detail Information
Highlight:

4CH SMFA fiber optic patch cord

,

SMF-28e fiber array with FC/APC

,

0° coated capillary fiber optic cable

Product Description
4CH SMFA Fiber Optic Array Patch Cord | SMF-28e | FC/APC | 0° Coated Capillary End
Product Overview

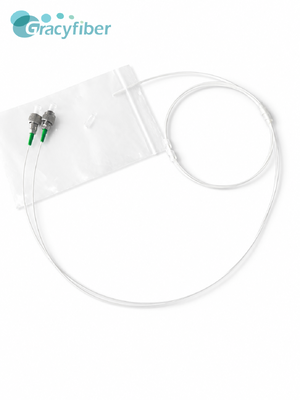

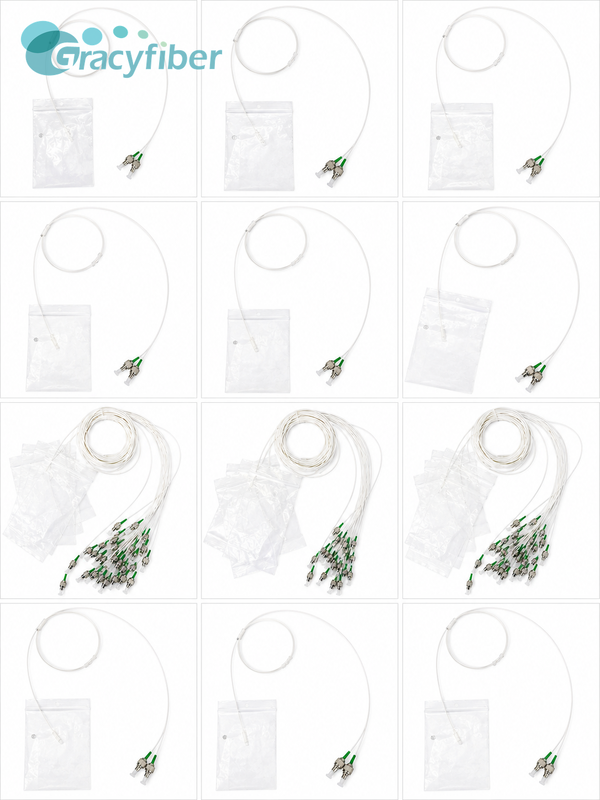

The 4CH SMFA fiber optic array patch cord utilizes Quartz Glass and Corning SMF-28e fiber. One end is a 0° polished capillary tube, and the other end is equipped with an FC/APC connector.

Features
Parameters Unit Spec. Value
Channel / 4 OK
Material / Quartz Glass OK
Channel Spacing μm 250 OK
Polishing Angle Degree A8° OK
Package(L)X(W)X(H) mm 10*2.5*2.5 OK
Insertion Loss dB ≤0.3
Fiber Type / SMF-28e OK
Fiber Tube mm 0.9 OK
Tube Color / White OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • 4-channel SMFA fiber optic array
  • Quartz Glass material
  • 0° polished capillary tube end
  • Capillary length approximately 6.5mm
  • Corning SMF-28e fiber
  • Piglet length 200±10cm
  • FC/APC connector
  • Insertion loss <0.3dB
Applications
  • Optical chip input/output coupling
  • PLC planar waveguide devices
  • AWG arrayed waveguide grating modules
  • Optical module and transceiver assemblies
  • Passive optical device packaging
  • Multi-channel optical communication test platform
  • Silicon photonics device testing
  • Precision optical coupling system
  • Laboratory R&D testing
  • Customized fiber optic array assemblies
