| Model Number: | 910001701-06 |

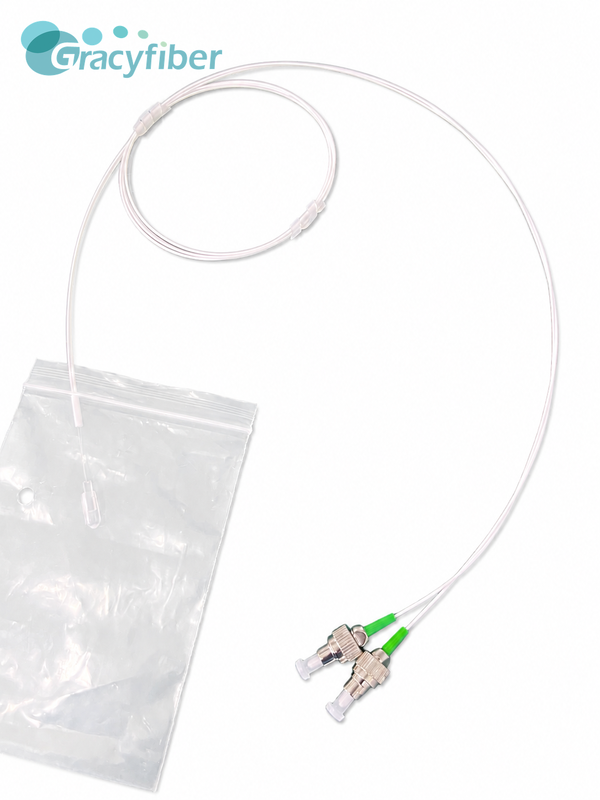

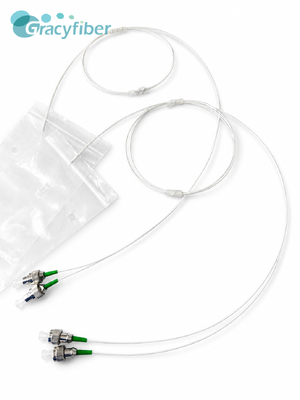

1CH SM Fiber Array, Single Channel Fiber Array Block, Quartz Glass FA.
This 1CH SMFA single-mode fiber array utilizes Corning SMF-28e fiber with an 8° bevel polishing design and features FC/APC connectors, exhibiting low insertion loss and high return loss.
| Parameters | Unit | Spec. | Value |
|---|---|---|---|
| Channel | / | 1 | OK |
| Material | / | Quartz Glass | OK |
| Channel Spacing | μm | 127 | OK |
| Polishing Angle | Degree | A8° | OK |
| Package(L)X(W)X(H) | mm | 2.5*2.5*7.9 | OK |
| Insertion Loss | dB | ≤0.3 | |
| Fiber Type | / | SMF-28e | OK |
| Fiber Tube | mm | 0.9 | OK |
| Tube Color | / | White | OK |
| Length | m | 1±0.1 | OK |
| Connector | / | FC/APC | OK |
| Operating Temperature (℃) | 0～65 | OK | |
| Storage Temperature (℃) | -40～85 | OK | |
A: The product is placed inside foam and secured with self-adhesive tape to enhance protection during transport.
