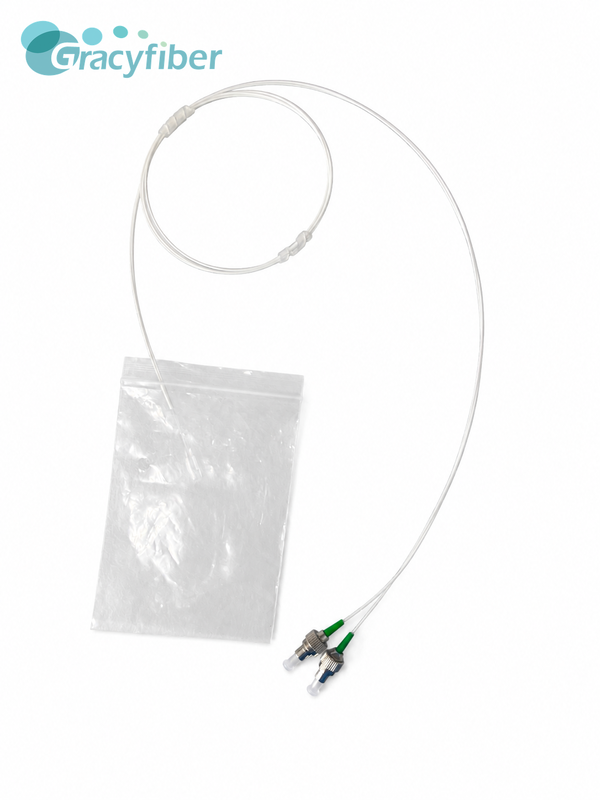

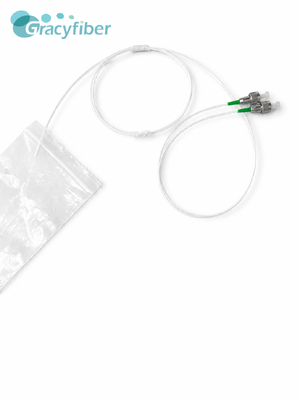

This 2CH fiber optic array (FA) uses a quartz glass substrate and supports 127/250μm channel pitch designs, making it suitable for high-precision fiber coupling and optical device packaging.
| Parameter | Unit | 1 | 2 | 4 | 8 | 12 | 16 | 24 | 32 | 48 | 64 | 96 | 128 | |
| Wavelength | nm | 460,630,780,850,980,1060,1310,1550,1650,1950 | ||||||||||||
| Materials | - | Pyrex, Tempax, Quartz, Silicon | ||||||||||||
| Lid Option | Lid / Lidless | |||||||||||||
| CorePitch | - | - | 250 | 127/250 | 127/250 | 127/250 | 127 | 127 | 127 | 127 | 127 | 127 | 127 | |
| Core Pitch Tolerance | μm | +/-0.3 | +/-0.5 | +/-0.7 | +/-1.0 | |||||||||
| Polish Angle | Degree | 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°) | ||||||||||||
| Angle Type | - | A Type or V Type | ||||||||||||
| Insertion Loss | dB | ≤0.5(Typical 0.3) | ||||||||||||
| Return Loss | dB | UPC≥45, APC≥55 | ||||||||||||
| FA Dimension | W | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 5.7 | 5.7 | 9 | 10 | 15 | 19.2 |
| H | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| L | mm | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 15 | 18 | |
| - | - | Standard or Customized | ||||||||||||
| Fiber Type | - | OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized | ||||||||||||
| Fiber Coating | um | 250 µm / 900 µm loose tube / ribbon (optional) | ||||||||||||
| Fiber Type Length | cm | 100+/-10 or customized | ||||||||||||
| Connector | - | .FC/LC/SC/E2000/MT/MPO/MMC | ||||||||||||
| Operation Temperature | °C | -5~65 | ||||||||||||
| Storage Temperature | °C | -40~85 | ||||||||||||
