Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device

Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device

Detail Information
Product Description
Detail Information
Document:
A-2Group-1x4 PM Splitter- G...06.pdf
Operating Wavelength:
1260~1650 Nm
Insertion Loss:
≤8.2 DB
Extinction Ratio:
≥18 DB
Return Loss:
≥50 DB
Power Handling:
300 MW
Operating Temperature:
-5~+65 ℃
Highlight:

Polarization maintaining PLC splitter

,

High stability fiber gyroscope splitter

,

MPO output optical device

Product Description
Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device
1. Features
  • Low insertion loss combined with high reliability and stability.
  • High extinction ratio for superior polarization maintenance.
  • Excellent channel-to-channel uniformity.
  • Wide operating wavelength range.
  • Compact package design suitable for high-density integration.
2. Applications
  • Coherent communication networks.
  • Fiber optic gyroscope (FOG) systems.
  • Optical fiber sensing equipment.
3. Specifications
  • Operating Wavelength: 1260~1650 nm (Test Wavelength: 1550 nm).
  • Optical Performance: Insertion Loss ≤ 8.2 dB, Uniformity ≤ 0.8 dB.
  • Extinction & Return Loss: Extinction Ratio ≥ 18 dB, Return Loss ≥ 50 dB.
  • Connectors: Input: FC/APC (Slow axis work); Output: MPO/APC Male (Fast axis work).
  • Fiber Type: PM 15-U25D.
  • Package Dimensions: 100 x 80 x 10 mm (ABS Box).

Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device 0

Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device 1

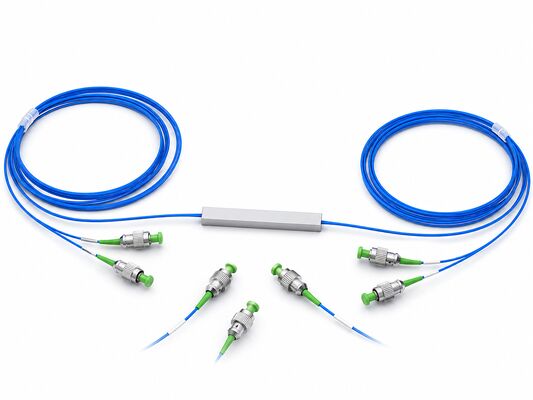

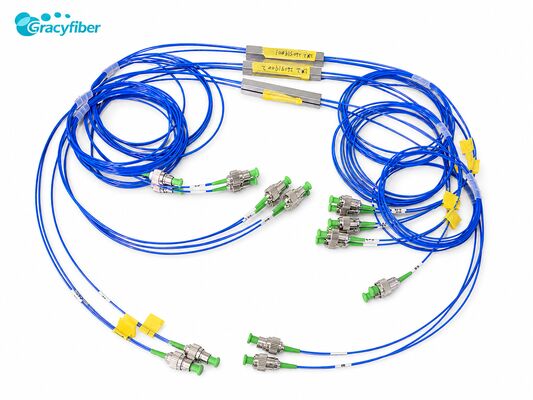

Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device 2Coherent Communication Fiber Gyroscope PM PLC Splitter 2x(1x4) Channel Polarization Maintaining Splitter High Stability ER>18dB MPO Output Optical Device 3
