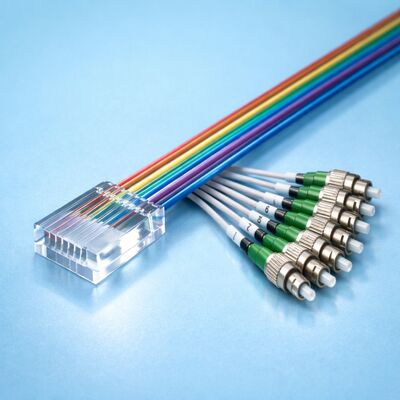

Lidless Fiber Array (1CH, 2CH, 4CH, 8CH, 12CH, 16CH, 24CH, 32CH) For Silicon Photonics, PLC, AWG, And Optical Modules
This Lidless Fiber Array is a capless fiber array assembly designed for high-precision optical coupling and compact photonic packaging applications.
| Parameter | Unit | 1 | 2 | 4 | 8 | 12 | 16 | 24 | 32 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Wavelength | nm | 460,630,780,850,980,1060,1310,1550,1650,1950 | ||||||||
| Materials | - | Pyrex, Tempax, Quartz, Silicon | ||||||||
| Lid Option | Lidless | |||||||||
| CorePitch | - | - | 250 | 127/250 | 127/250 | 127/250 | 127 | 127 | 127 | |
| Core Pitch Tolerance | μm | +/-0.3 | +/-0.5 | |||||||
| Polish Angle | Degree | 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°) | ||||||||
| Angle Type | - | A Type or V Type | ||||||||
| Insertion Loss | dB | ≤0.5(Typical 0.3) | ||||||||
| Return Loss | dB | UPC≥45, APC≥55 | ||||||||
| FA Dimension | W | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 5.7 | 5.7 |
| H | mm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| L | mm | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | |
| - | - | Standard or Customized | ||||||||
| Fiber Type | - | OM1/OM2/OM3/OM4/OM5/G67A1/ A2/ B3 or Customized | ||||||||
| Fiber Coating | um | 250 µm / 900 µm loose tube / ribbon (optional) | ||||||||
| Fiber Type Length | cm | 100+/-10 or customized | ||||||||
| Connector | - | .FC/LC/SC/E2000/MT/MPO/MMC | ||||||||
| Operation Temperature | °C | -5~65 | ||||||||
| Storage Temperature | °C | -40~85 | ||||||||
FAQ
1. Does OEM/ODM customization support this product?
Yes. This product can be customized in terms of materials, number of channels, core pitch, core pitch tolerance, polishing angle, A-Type/V-Type angle structure, fiber type, coating, fiber length, connectors, and dimensions. Optional materials listed on this page include Pyrex, Tempax, Quartz, and Silicon. Connector options include FC, LC, SC, E2000, MT, MPO, and MMC.
2. What information is required before requesting a quote or placing an order?
We recommend providing: number of channels, operating wavelength, core pitch, core pitch tolerance, polishing angle, chip or module interface drawing, fiber type, coating specifications, fiber length, connector type, insertion loss/return loss requirements, application scenario, and expected purchase quantity. The more complete the information, the faster we can assess manufacturability, provide a quote, sample lead time, and bulk delivery options.
