| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 100,000 pieces per month |

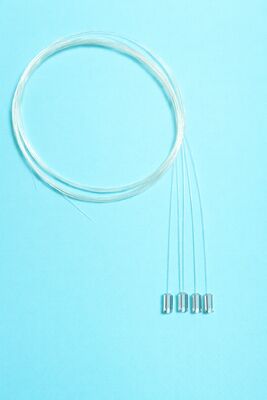

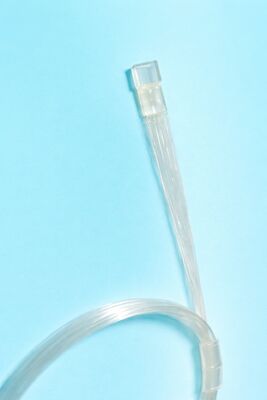

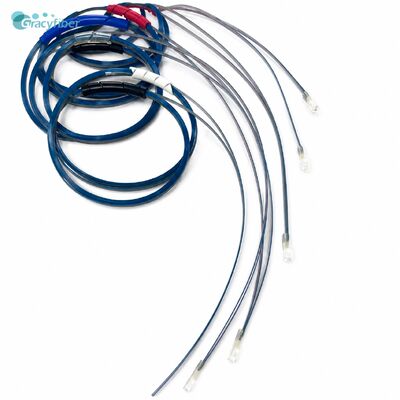

This product utilizes Panda PM fiber as its standard configuration while also supporting custom Bow-tie fiber options, offering excellent polarization-maintaining performance and axial consistency.
| Parameter | Unit | 1 | 2 | 4 | 8 | 12 | 16 | 24 | 32 | 48 | 64 | 96 | 128 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wavelength | nm | 460,630,780,850,980,1060,1310,1550,1650,1950 | ||||||||||||
| Materials | - | Pyrex, Tempax, Quartz, Silicon | ||||||||||||
| Lid Option | Lid / Lidless | |||||||||||||
| CorePitch | - | - | 250 | 127/250 | 127/250 | 127/250 | 127 | 127 | 127 | 127 | 127 | 127 | 127 | |
| Core Pitch Tolerance | μm | +/-0.3 | +/-0.5 | +/-0.7 | +/-1.0 | |||||||||
| Polish Angle | Degree | 8°,41°,82°,90° or customized (12°, 21°,...) (±0.5°) | ||||||||||||
| Angle Type | - | A Type or V Type | ||||||||||||
| Insertion Loss | dB | ≤0.5(Typical 0.3) | ||||||||||||
| Polarization Extinction Ratio (PER) | dB | ≥20 (Typical ≥23) | ≥18 (Typical ≥20) | |||||||||||
| Polarization Axis Reference | - | Slow axis / Fast axis | ||||||||||||
| Axis Orientation | Degree | 0° /45°/ 90° / Customized | ||||||||||||
| Axis Alignment Accuracy | Degree | ≤ ±2° (Typ. ±1°) | ||||||||||||
| Return Loss | dB | UPC≥45, APC≥55 | ||||||||||||
| FA Dimension | W | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3.5 | 3.5 | 5.7 | 5.7 | 9 | 10 | 15 | 19.2 |
| H | mm | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |
| L | mm | 10 | 10 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 15 | 18 | |
| - | - | Standard or Customized | ||||||||||||
| PM Fiber Type | - | Panda PM (standard) / Bow-tie (optional) | ||||||||||||
| Fiber Coating | um | 250 µm / 900 µm loose tube / ribbon (optional) | ||||||||||||
| Fiber Type Length | cm | 100+/-10 or customized | ||||||||||||
| Connector | - | .FC/LC/SC/E2000/MT/MPO/MMC | ||||||||||||
| Operation Temperature | °C | -5~65 | ||||||||||||
| Storage Temperature | °C | -40~85 | ||||||||||||
1. How to ensure the 128-channel ultrawide array endfaces are protected from microparticle contamination and physical damage during cross-border logistics?
We have designed the highest level of industrial protection for ultra-high-density semiconductor-grade optical arrays. The 128CH polished endfaces, extending for tens of millimeters, are all designed with a suspended protection feature and covered with custom dust covers, completely isolating them from microparticle contamination. Each device, after standardized fiber optic cable management, is independently fixed in an anti-static blister pack or high-density shock-absorbing pearl cotton, and then nested in a sturdy, thickened corrugated cardboard box. This complete solution completely mitigates mechanical vibration and stress damage during long-distance air or sea transport, ensuring the product arrives at your cleanroom perfectly undamaged.
2. Do you provide technical support for multi-channel silicon optical waveguide coupling design or thermal stress assessment?
Absolutely. Our international R&D and engineering team has over 25 years of deep technical expertise in high-density micro-optical packaging. Whether it's complex theoretical boundary calculations of 128-channel overall waveguide coupling loss, cumulative analysis of full array pitch tolerance, or optimization of anti-reflective endface design, we can provide you with expert-level remote technical consultation via video conferencing or email.
