| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

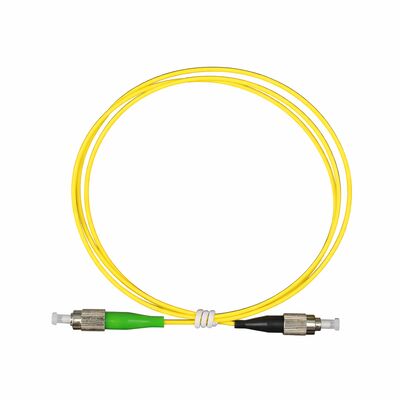

Fiber Optic Patch Cord & Pigtail Manufacturer | LC/SC/FC/ST Patch Cables | Gracyfiber

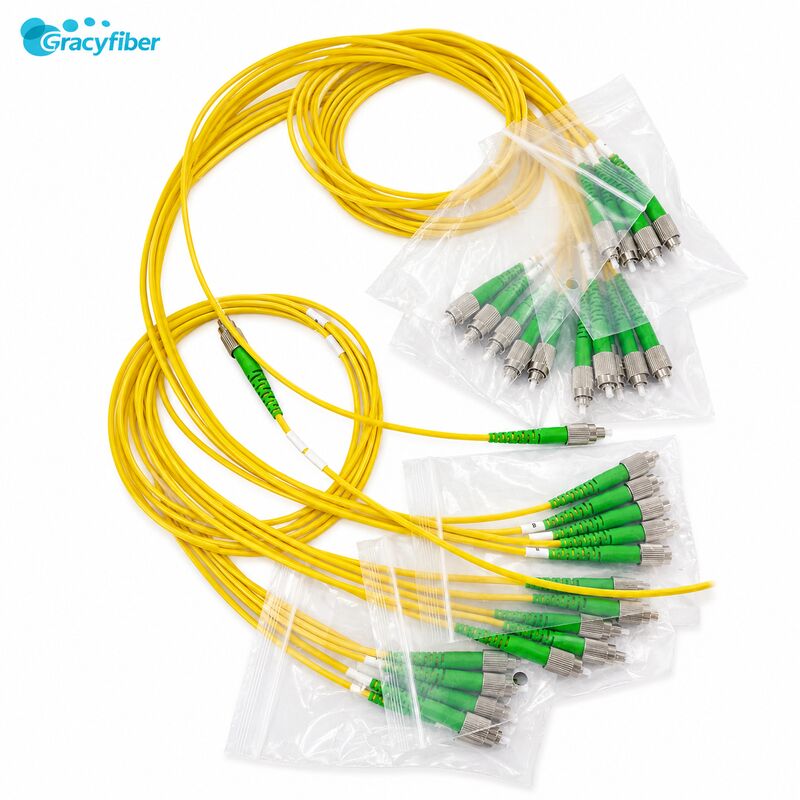

Gracyfiber Fiber Optic Patch Cords and Pigtails provide reliable, low-loss optical connectivity for telecom, datacom, FTTx, and enterprise networks.
Available in single-mode and multimode fiber types, they support standard connectors including LC, SC, FC, ST, E2000, and SENKO CS®, with UPC and APC polish options. With insertion loss up to ≤0.3 dB, high return loss, simplex or duplex configurations, and PVC or LSZH jacket choices, these products are designed for stable interconnection in ODFs, backbone networks, data centers, ONTs, and equipment links.
| Item | Parameters | ||||||
| Fiber type | G652D | G657A1 | G657A2 | OM1 | OM2 | OM3 | OM4 |
| Fiber core/cladding dia (um) | 9/125 | 62.5/125 | 50/125 | ||||
| Fiber count | 1 core or 2 cores | ||||||
| Material | PVC or LSZH | ||||||
| Color | Yellow | Orange | Aqua | Magenta | |||
| Nom. diameter (mm) | 2.0, 3.0, 0.9 or others | ||||||
| Strength member | Kevlar | ||||||
| Attenuation(dB/km) | ≤0.4@1310nm | ≤3.0@850nm | |||||
| ≤0.3@1550nm | ≤1.0@1300nm | ||||||
| Insert loss (dB) | ≤0.3 | ||||||
| Return loss (dB) | ≥50(PC) | – | |||||
| ≥60(APC) | – | ||||||
| Name | Description | Quantity |
| Fiber Connector | FC, LC, SC, ST…APC or UPC | 1 or 2 |
| Fiber Cable | G652D,G657A1,G657A2,OM1,OM2,OM3,OM4… | L (m) |
| Fiber Connector | FC, LC, SC, ST… APC or UPC | 1 or 2 |
| Minimum Bending Radius Cable | Dynamic | 20xOD, OD=outer diameter |
| Static | 10xOD, OD=outer diameter | |
| Tensile Strength | Long term tensile force: 80N | |
| (according to IEC 60794-1-2 E1) | Short term tensile force: 150N | |
| Crush (according to IEC 60794-1-2 E3) | Long term: 100 N/100mm | |
| Short term: 500 N/100mm | ||
Low Insertion Loss – Helps preserve optical power and improve link stability.
High Return Loss – Supports reduced back reflection for cleaner signal transmission.
Wide Connector Compatibility – Supports LC, SC, FC, ST, E2000, and SENKO CS® interfaces for flexible integration.
Single-Mode and Multimode Options – Covers G.652D, G.657A1, G.657A2, OM1, OM2, OM3, and OM4 requirements.
Simplex, Duplex, and Customized Forms – Meets standard patching and project-specific connectivity needs.
PVC and LSZH Jackets Available – Helps match different installation and safety requirements.
Good Repeatability – Supports more consistent performance during repeated mating cycles.
RoHS Compliant – Supports international compliance requirements.
ODF
Backbone network
Data center
ONT interconnects
Telecom and FTTx networks
