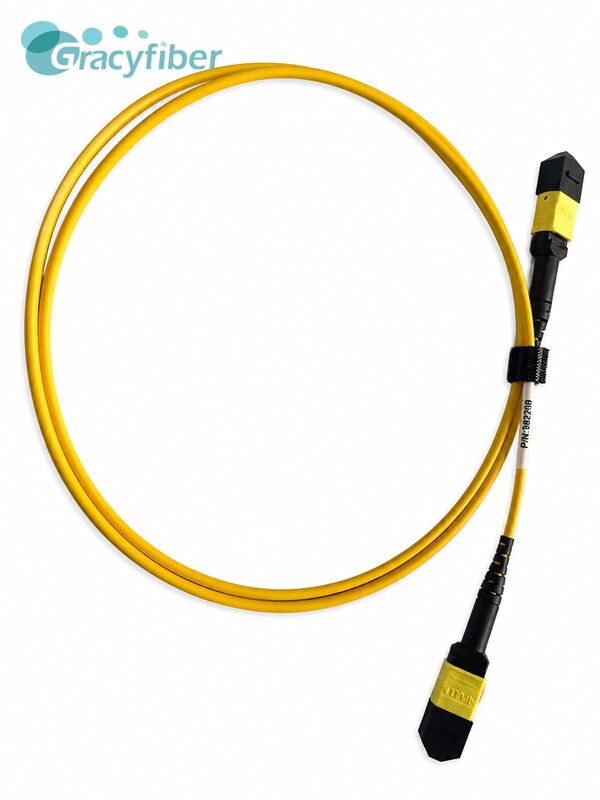

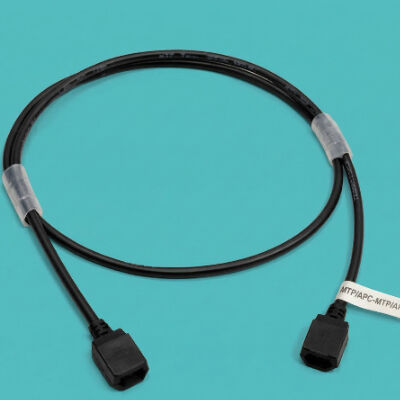

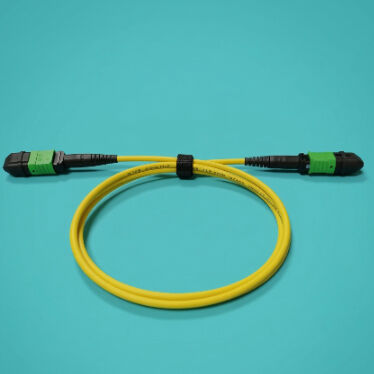

GRACYFIBER's polarization-maintaining MT-MPO assembly is a pre-terminated multi-core fiber solution designed for efficient, parallel routing of multi-channel polarized light in extremely compact spaces.
| Parameter | Unit | Value | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Channel Configuration | - | 8F/ 12F/ 16F | |||||||
| Operating Wavelength | nm | 405 | 460 | 650 | 780/850 | 980/1064 | 1310/1550 | ||
| Operating Wavelength Range | nm | 400~680 | 460~700 | 620～850 | 770～1100 | 970～1550 | ±50 | ||
| Insertion Loss | Max | dB | 4.1 | 4.1 | 3.0 | 2.2 | 1.8 | 1.6 | |
| Extinction Ratio | Min | dB | 15 | 15 | 20 | 20 | 22 | 22 | |
| Core NA | - | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | 0.12 | ||
| Mode Field Diameter | Min | µm | 3.3 ± 0.5@405 | 3.3 ± 0.5@ 515 | 4.5±0.5@630 | 5.3±1.0 @850 | 6.6±0.5 @980 | 9.3±0.5 @1300 | |
| Return Loss (Min) | Min | dB | 45 @ PC, 55 @ APC | ||||||
| Power Handing (Max) | mW | 100 | 100 | 100 | 300 | 300 | 500 | ||
| Fiber Type | - | PM405 | PM460 | PM630 | PM780 | PM980 | PM1300 /PM1550 | ||
| Fiber Coating | µm | 250 µm / 900 µm Blue loose tube | |||||||
| Fiber Length | m | 0.1,0.5,1,2,3,5 | |||||||
| Connector | - | MT-FA/ MT-MT/MT-MPO/MPO-MPO,or Customized | |||||||
| Operating Temperature | °C | -5~65 | |||||||
| Storage Temperature | °C | -40~85 | |||||||
| Remark: * Above specifications are for devices without the connectors. * The PM fiber and the connector key are aligned to the slow axis. fast axis is blocked. |
||||||
Features: Ultra-wide wavelength support (405 nm to 1550 nm) and multi-channel high-density architecture
Features: Extremely precise K-key alignment tolerance (±3°) and high polarization purity
Features: Excellent low insertion loss and high optical power handling capability
Features: Flexible pre-terminated connectivity
| MPO | - | 1 | 3 | 4 | 4 | 5 | - | 8 | 8 | 8 | 8 | 8 | 9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | Working Wavelength |
Fiber Type | Fiber core Count | Jacket Type | Fiber Length |
- | A-Port Type |
A-Port Gender |
B-Port Type |
B-Port Gender |
Polarity | Working Axis |
|
| - | XX | XXX | XX | XX | XX | - | X | X | X | X | X | X | |
| PM MPO | 40=405nm | P40=PM405 | 8F=8 Core | RB=Ribbon fiber | 05=0.5m | 1=MT/UPC | 1=Male | 1=MT/UPC | 1=Male | A=TypeA | B=Dual Axis | ||
| 78=780nm | P78=PM780 | 12F=12 Core | 20=2.0mm PVC Tube | 10=1.0m | 2=MT/APC | 2=Famle | 2=MT/APC | 2=Famle | B=TypeB | S=Slow Axis | |||
| 98=980nm | P98=PM980 | 16F=16 Core | 30=2.0mm PVC Tube | 30=3.0m | 3=MPO/UPC | X= Customized | 3=MPO/UPC | X= Customized | C=TypeC | F=Fast Axis | |||
| 13=1310nm | P13=PM1300 | XX= Customized | XX= Customized | XX= Customized | 4=MPO/APC | X= Customized | 4=MPO/APC | X= Customized | X= Customized | X= Customized | |||
| 15=1550nm | P15=PM1550 | 5=MTP/UPC | 5=MTP/UPC | ||||||||||
| XX= Customized | XXX= Customized | 6=MTP/APC | 6=MTP/APC | ||||||||||
| X= Customized | X= Customized | ||||||||||||
| Example Part Number | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PMMPO-13P138FRB05-1132AS | |||||||||||||
| PM MPO ,Work Wavlelength 1310nm, Fiber is PM1300nm, Fiber length 0.5m with Ribber Fiber MT/UPC(Male)-MPO/UPC(Female),Polarity Type A, slow axis aligned to key. |
|||||||||||||
1. What are the options for pigtails, lengths, and temperature ranges?
Standard fiber coating options include 250μm or 900μm blue loose tubes, with lengths available in 0.1m, 0.5m, 1m, 2m, 3m, and 5m. Operating temperature is -5℃ to +65℃, and storage temperature is -40℃ to +85℃, suitable for experimental platforms, module integration, and high-density cabling within equipment.
2. How do you ensure product quality and batch consistency before shipment?
As a professional supplier of polarization-maintaining passive components, we can test insertion loss, return loss, extinction ratio, axial alignment, channel continuity, polarity, end-face quality, appearance, and labeling. This page shows that the product is ISO9001 and RoHS certified, with an MOQ of 1 piece and a monthly supply capacity of 100,000 pieces, supporting sample verification, small-batch pilot production, and mass production.
