| Brand Name: | Gracyfiber |
| Model Number: | PMAAWG-48XFMH13ST0905-22 |
| MOQ: | 1pieces |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

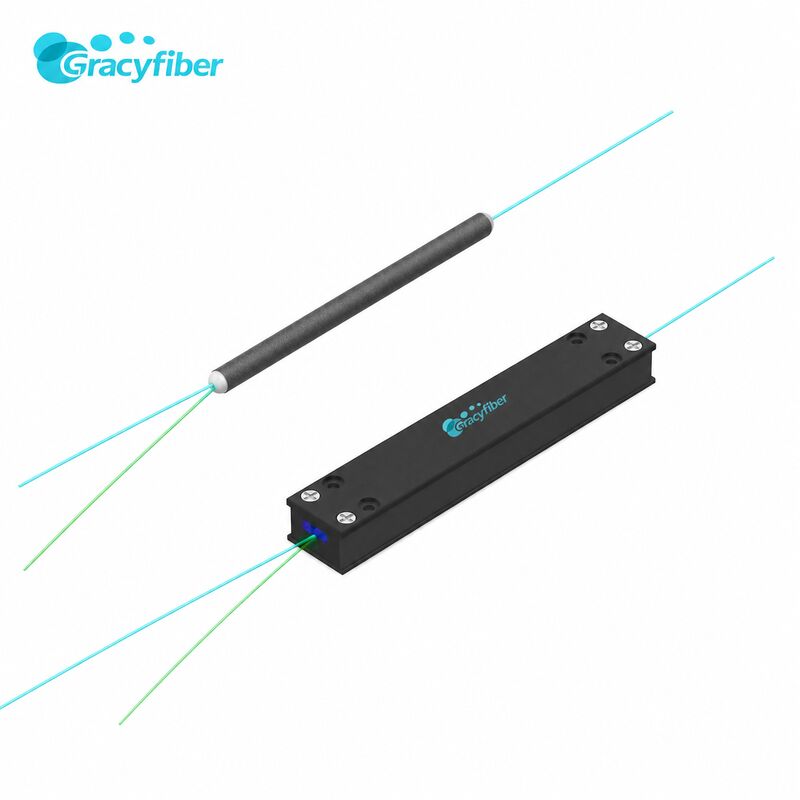

Polarization Beam Combiner Splitter PM Fiber Combiner Splitter Low Loss High Extinction Ratio for Fiber Laser EDFA Raman Amplifier Fiber Sensor
This Polarization Beam Combiner/Splitter (PBC/S) is a high-performance passive device based on polarization-maintaining fiber. It can be used to efficiently combine two orthogonally polarized beams or to separate input light to different outputs according to their polarization state.
Q1: What operating wavelengths does this polarization beam combiner/splitter support?
A: This product supports multiple common wavelength bands, including 980nm, 1064nm, 1310nm, 1480nm, and 1550nm, and also covers a wide wavelength range of 1260–1620nm, suitable for various optical communication, optical amplification, and fiber laser system requirements.
Q2: What are the main performance advantages of this product?
A: This product features low insertion loss, high extinction ratio, high directivity, high reliability, and high stability. Its return loss is ≥50dB, directivity is ≥50dB, and maximum power handling is ≤500mW, making it suitable for applications with high requirements for polarization control and optical path stability.
Q3: Does the Polarization Beam Combiner/Splitter support customization?
A: Customization is supported. Customers can select the operating wavelength, P/A rating, Port 3 fiber type, pigtail type, input/output connectors, and package specifications according to system requirements. Connectors include FC/UPC and FC/APC, with a standard package size of Φ5.5 × L34mm. When the connector is included, the key position is aligned with the slow axis by default.
