Polarization Beam Combiner/Splitter PBC/S 980nm 1064nm 1310nm 1480nm 1550nm 1260nm 1620nm

Polarization Beam Combiner/Splitter (PBC/S) — 980/1064/1310/1480/1550nm & 1260–1620nm Wavelengths — For Fiber Lasers, EDFAs, Sensing, and Polarization Management

Product Description

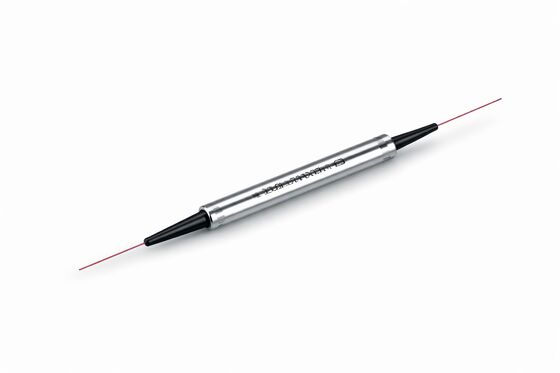

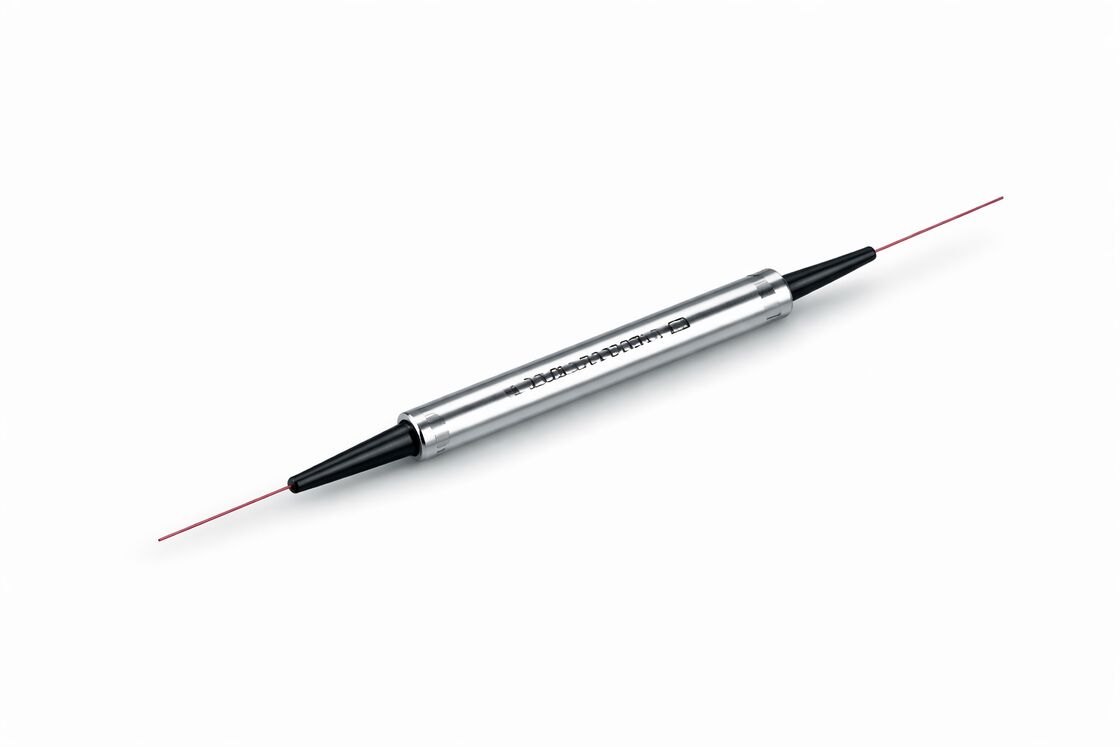

This Polarization Beam Combiner/Splitter (PBC/S) is a high-performance passive device based on polarization-maintaining (PM) fiber. It is designed to efficiently combine two orthogonally polarized optical signals into a single output, or to split a single input signal into separate output ports based on its polarization state. The product covers a range of commonly used wavelengths—including 980nm, 1064nm, 1310/1480/1550nm, and the 1260–1620nm band—making it suitable for fiber-optic systems with stringent requirements regarding insertion loss, return loss suppression, and polarization control. Available in two performance grades—Grade P and Grade A—this device offers flexibility in selecting the optimal solution for either high-end applications or cost-optimized designs. Featuring a compact standard package size of φ5.5×34mm, its compact structure facilitates easy integration into lasers, amplifier modules, and various optical communication systems.

Key Features

• Supports both beam combining and beam splitting modes of operation
• Compatible with 980nm, 1064nm, 1310/1480/1550nm, and 1260–1620nm wavelength bands
• Available in two performance grades: Grade P and Grade A
• Typical insertion loss as low as 0.35–0.45dB
• Extinction Ratio (ER) in splitting mode: ≥22dB (Grade P), ≥20dB (Grade A)
• Directionality: ≥50dB; Return Loss: ≥50dB
• Maximum optical power handling: 500mW

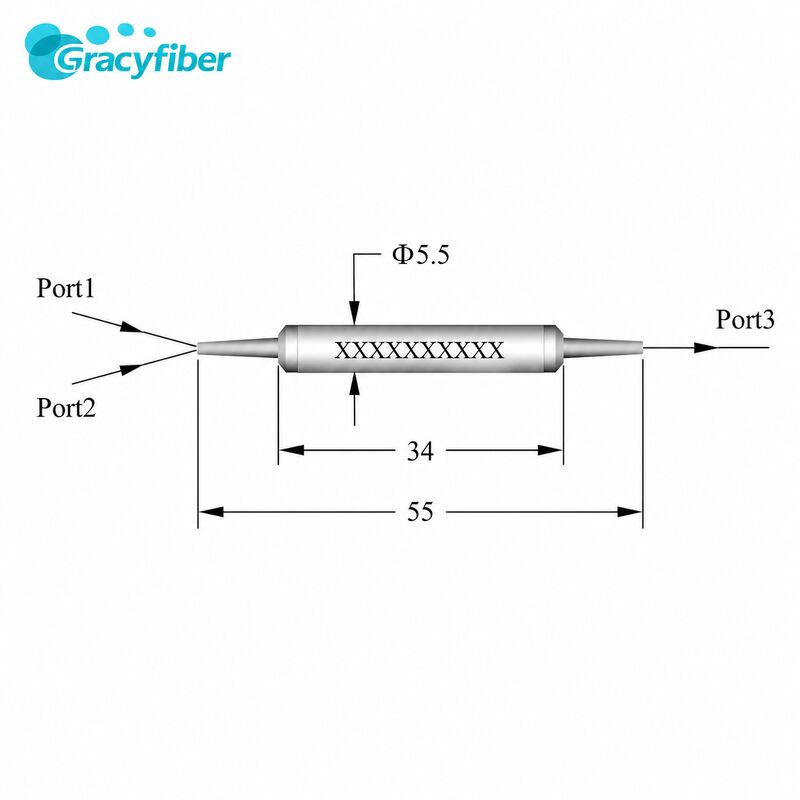

• Compact standard package size: φ5.5×34mm
• Compliant with Telcordia GR-1209/GR-1221 and RoHS standards

Applications

• Fiber Laser Systems
• Fiber Sensing Systems
• EDFA / Raman Amplifiers
• PMD (Polarization Mode Dispersion) Compensation
• Coherent Communication Systems
• Polarization Multiplexing and Demultiplexing
• High-end Testing and Experimental Platforms
