| Brand Name: | Gracyfiber |
| MOQ: | 100pcs |
| Payment Terms: | T/T |

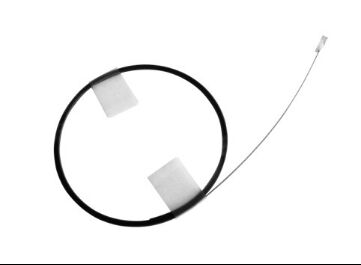

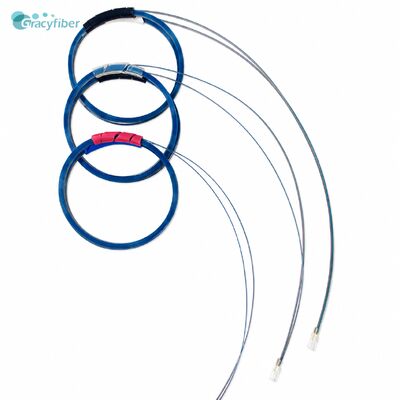

The PM Fiber Array is a critical component designed to manage and maintain the polarization state of light across multiple parallel channels. Unlike standard fiber arrays, the PM-FA features Polarization-Maintaining (PM) fibers precisely mounted within a high-accuracy V-Groove substrate (typically Quartz or Silicon). Its core function is not only the sub-micron alignment of fiber cores but, crucially, the accurate angular alignment of the fiber's stress-rods (polarization axes) relative to the array plane. This dual-precision capability is paramount for achieving a high Extinction Ratio (ER), low insertion loss, and stable performance required in next-generation coherent optical systems.
PM Fiber Array | ||||||||
Material | Quartz& Silicon | |||||||
V-groove core pitch | μm | 127/250/500(±0.5)or customer specified | ||||||
Polishing angle | degree | 90°(±0.3°) | ||||||
Fiber type |
| 250um Panda PM fiber | ||||||
Number of channels | 1 | 2 | 4 | 8 | 16 | 32 | 64 | |
Channel spacing | μm |
| 250 | 127 | 127 | 127 | 127 | 127 |
Package | mm | 6x2.5x2.5 | 10x2.5x2.5 | 10x2.5x2.5 | 10x2.5x2.5 | 12x3.5x2.5 | 12x5.7x2.5 | 12X9.7X2.5 |
Extinction ratio | dB | ≥25 | ≥25 | ≥23 | ≥21 | ≥20 | ≥16 | ≥15 |
PM Fiber Alignment | PM orientation Ⅱ | |||||||
Fiber Type | Corning PM15-U25D | |||||||
Fiber Length | 1+/-0.1m | |||||||
Connector | FC/APC(Slow Axis Alignment Key) | |||||||
Operating Temperature (℃) | -5～65 | |||||||
Storage Temperature (℃) | -40～85 | |||||||
| ||||||||
Notes:
Channels number/Operating Wavelength and Device Dimension can be customer specified.
PM Single-Channel Fiber Array
PMSFA- | XX- | X- | XX- | X- | X- | X |
PM=Polarization | Channel Count | Materials | Fiber Length | Fiber Type | Fiber Color | Polishing Angle |
S=Single | 01=D type capillary | Q=Quartz | 12=1.2m | B=250μm Bare Fiber | C=Clear | A= +8° |
F=Fiber | 02=Quadrate capillary | S= Silicon | 15=1.5m | L=900μm Loose Tube | W=White | V= -8° |
A=Array | 03=V groove |
| X=Customized | T=900μm Tight Buffer | B=Blue | N=0° |
|
|
|
|
| X=Customized | X=Customized |
PM Multi-Channel Fiber Array
PMGFA- | XX- | X- | XX- | XX- | X- | X |
PM = Polarization | Channel Count | Materials | Core Pitch | Ribbon Fiber Length | Ribbon Fiber Color | Polishing Angle |
G= Gracy fiber | 02=2 channels | Q= Quartz | 25= 250μm | 12= minimum 1.2m | S = Standard | X= +8° |
F = Fiber | 04=4 channels | S= Silicon | 12= 127μm | 15= minimum 1.5m | X = Customized | V= -8° |
A = Array | 08=8 channels |
|
| .......... |
| N=0° |
| .......... |
|
|
|
| X= Customized |
| 64=64 channels |
|
|
|
|
|
