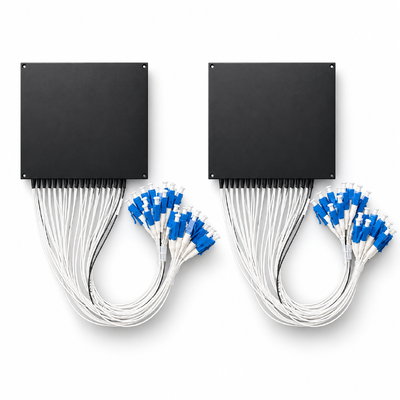

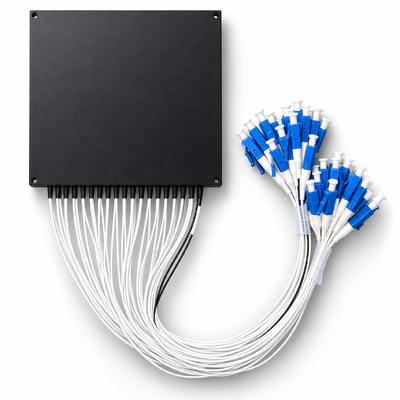

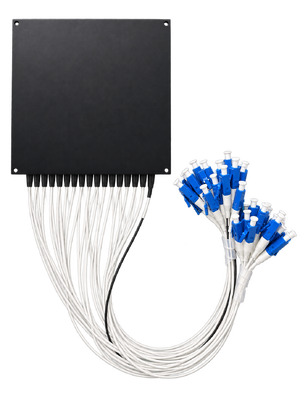

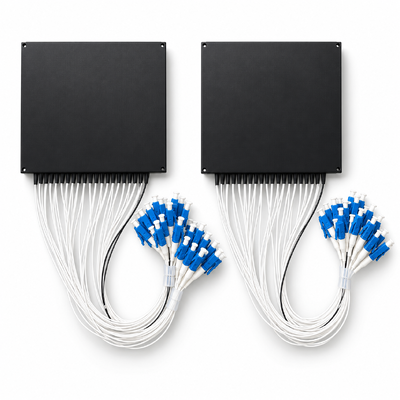

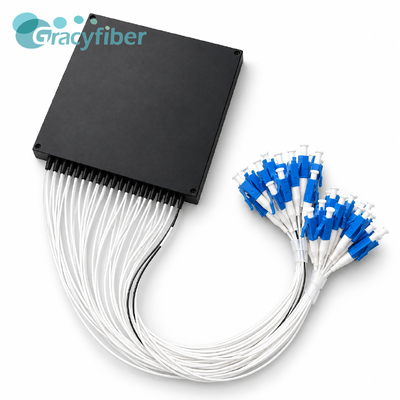

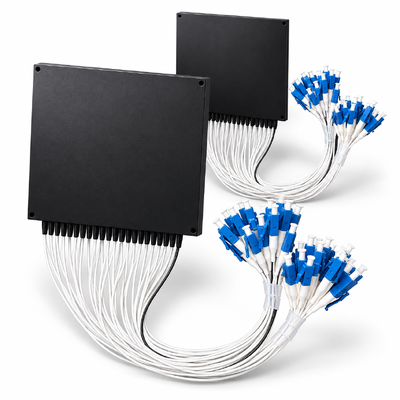

19CH O+C-Band DWDM Module – 8CH O-Band 200 GHz + 11CH C-Band 100 GHz

19CH O+C-Band DWDM Module – 8CH O-Band 200 GHz + 11CH C-Band 100 GHz

Brand Name: Gracyfiber
Detail Information
Place of Origin:
China
Total Channel Count:
19CH
Operating Wavelength Range:
1260-1360 Nm & 1525-1575 Nm
Insertion Loss:
≤3.60 DB
Package Size:
120 × 80 × 14 Mm
Highlight:

19CH DWDM module O+C-Band

,

8CH O-Band DWDM 200 GHz

,

11CH C-Band DWDM 100 GHz

Product Description

1. Product Title

19CH O+C-Band DWDM Module – 8CH O-Band 200 GHz + 11CH C-Band 100 GHz


2. Product Overview

The GracyFiber 19CH O+C-Band DWDM Module integrates eight O-band channels and eleven C-band channels into a single passive wavelength-division multiplexing platform. The O-band section uses 200 GHz channel spacing, while the C-band section uses 100 GHz spacing, providing 19 wavelength channels through one common optical interface.

19CH O+C-Band DWDM Module – 8CH O-Band 200 GHz + 11CH C-Band 100 GHz



3. Key Features

  • 19 total DWDM channels: 8 O-band + 11 C-band
  • O-band channel spacing: 200 GHz
  • C-band channel spacing: 100 GHz
  • Operating wavelength ranges: 1260–1360 nm and 1525–1575 nm
  • Insertion loss: ≤3.60 dB
  • Adjacent / non-adjacent isolation: ≥25 dB / ≥35 dB
  • Low PDL: ≤0.2 dB
  • G657A1 fiber with 0.9 mm loose tube and LC/PC connectors

The supplied specification states that the optical performance values include the connectors.


4. Applications

Based on the specified O+C-band channel architecture, the module is suitable for:

  • O+C-Band Wavelength Multiplexing and Demultiplexing
  • Dual-Band Optical Transmission Systems
  • DWDM Optical Network Integration
  • Multi-Wavelength Optical Signal Routing
  • Optical Communication Equipment
  • WDM Laboratory and R&D Systems
  • Systems Requiring Simultaneous O-Band and C-Band Channel Transport

5. Technical Specifications

19CH O+C-Band DWDM Module – 8CH O-Band 200 GHz + 11CH C-Band 100 GHz


Optical Performance

Parameter Specification
Product Type 19CH O+C-Band DWDM Module
Total Channel Count 19CH
O-Band Channels 8CH
C-Band Channels 11CH
Operating Wavelength Range 1260–1360 nm & 1525–1575 nm
O-Band Channel Spacing 200 GHz
C-Band Channel Spacing 100 GHz
O-Band Passband ±0.2 nm
C-Band Passband ±0.11 nm
Insertion Loss, COM ↔ WDM Channels ≤3.60 dB
Adjacent Channel Isolation ≥25 dB
Non-Adjacent Channel Isolation ≥35 dB
Directivity ≥50 dB
Return Loss ≥45 dB
Ripple ≤0.5 dB
Polarization Dependent Loss ≤0.2 dB
Polarization Mode Dispersion ≤0.2 ps
Maximum Optical Power 500 mW

These values are specified with connectors included.

O-Band Channel Plan

Channel Frequency Center Wavelength
O284 228.40 THz 1312.58 nm
O286 228.60 THz 1311.43 nm
O288 228.80 THz 1310.28 nm
O290 229.00 THz 1309.14 nm
O292 229.20 THz 1308.00 nm
O294 229.40 THz 1306.85 nm
O296 229.60 THz 1305.72 nm
O298 229.80 THz 1304.58 nm

C-Band Channel Plan

Channel Frequency Center Wavelength
C20 192.00 THz 1561.42 nm
C21 192.10 THz 1560.61 nm
C22 192.20 THz 1559.79 nm
C23 192.30 THz 1558.98 nm
C24 192.40 THz 1558.17 nm
C25 192.50 THz 1557.36 nm
C26 192.60 THz 1556.55 nm
C27 192.70 THz 1555.75 nm
C28 192.80 THz 1554.94 nm
C29 192.90 THz 1554.13 nm
C30 193.00 THz 1553.33 nm

The 19 specified center wavelengths and their corresponding frequencies are shown in the module layout on page 3 of the supplied specification.

Fiber & Mechanical Specifications

Parameter Specification
Fiber Type Ultra G657A1
Fiber Protection 0.9 mm loose tube
Fiber Color COM: Black; Other ports: White
Fiber Length 300 ±50 mm
Connector Type LC/PC
Package Size 120 × 80 × 14 mm
Package Material Aluminum
Package Color Black
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +85°C
Operating Humidity 5–95% RH

The fiber, connector, package, and environmental data are specified on page 2.

Reliability & Compliance

Item Specification
Reliability Compliant with Telcordia GR-1209 and GR-1221
RoHS RoHS 2.0 compliant

These requirements are stated in the supplied product specification.


6. Configuration & Customization Options

Confirmed Configuration

Item Current Product Configuration
Channel Count 19CH
O-Band Configuration 8CH, O284–O298
C-Band Configuration 11CH, C20–C30
O-Band Spacing 200 GHz
C-Band Spacing 100 GHz
Fiber G657A1
Fiber Protection 0.9 mm loose tube
Connector LC/PC
Housing Black aluminum
Package 120 × 80 × 14 mm



7. Detailed Product Description

The GracyFiber 19CH O+C-Band DWDM Module combines two wavelength regions within one passive optical module. Its channel plan consists of eight O-band channels from O284 to O298 and eleven C-band channels from C20 to C30, giving a total of 19 wavelength channels connected through a common optical interface.

The two wavelength groups use different channel spacing. The O-band channels are arranged at 200 GHz intervals, covering specified center wavelengths from 1312.58 nm to 1304.58 nm. The C-band section uses 100 GHz spacing, with center wavelengths from 1561.42 nm to 1553.33 nm.

From a system perspective, the common port allows multiple O-band and C-band optical carriers to be multiplexed onto, or demultiplexed from, the same optical path. The specified maximum insertion loss is 3.60 dB, while adjacent- and non-adjacent-channel isolation are at least 25 dB and 35 dB respectively. Directivity is specified at ≥50 dB, return loss at ≥45 dB, PDL at ≤0.2 dB, and PMD at ≤0.2 ps.

The optical assembly is packaged in a 120 × 80 × 14 mm black aluminum housing. G657A1 fiber with 0.9 mm loose tube and LC/PC connectors is specified for the current configuration. The module is designed for operation from -20°C to +70°C, with a specified storage range of -40°C to +85°C.

This architecture is useful where a system must route multiple precisely defined wavelengths across both the O-band and C-band while maintaining a single integrated WDM module.


8. Application Scenario

Application 1 — O+C-Band Multi-Wavelength Transmission

A transmission system may need to carry optical channels in both the O-band and C-band over a common optical path.

The module combines eight O-band wavelengths and eleven C-band wavelengths through the COM interface. At the opposite side of the link, a corresponding module can separate those wavelengths into their individual optical channels.

This configuration allows a single WDM platform to handle two separated wavelength regions without requiring independent O-band and C-band modules.

Application 2 — DWDM Equipment Integration

The module can be integrated into optical communication equipment requiring a defined set of O-band and C-band wavelength ports.

The 120 × 80 × 14 mm aluminum package, G657A1 pigtails, and LC/PC interfaces provide a defined mechanical and optical configuration for equipment-level integration.

Application 3 — Optical R&D and Multi-Wavelength Testing

For laboratory systems working with multiple wavelengths, the individual O284–O298 and C20–C30 ports provide access to specific optical channels while the COM port provides the combined optical path.

The documented frequency and wavelength plan allows optical engineers to identify the required channel during system setup and measurement.


9. FAQ

1. How many channels does the 19CH O+C-Band DWDM Module support?

The module provides 19 channels in total, consisting of 8 O-band channels and 11 C-band channels. The O-band channels are O284–O298, while the C-band channels are C20–C30.

2. What is the difference between the O-band and C-band channel spacing in this module?

The O-band section uses 200 GHz spacing, while the C-band section uses 100 GHz spacing. The specified passbands are ±0.2 nm for the O-band and ±0.11 nm for the C-band.

3. What fiber and connector are used on this O+C-band DWDM module?

The current specification uses G657A1 single-mode fiber with 0.9 mm loose tube and LC/PC connectors. The housing is black aluminum with dimensions of 120 × 80 × 14 mm.


10. Why GracyFiber

GracyFiber's passive optical component portfolio covers WDM-related products as well as fiber-array, MPO/MTP, polarization-maintaining, and other optical interconnect solutions.

For WDM projects, this allows engineering discussions to focus on parameters such as:

  • Channel count and wavelength plan
  • Channel spacing
  • Passband
  • Insertion loss
  • Channel isolation
  • Fiber and connector configuration
  • Package requirements
  • Target application

For a non-standard O+C-band channel plan, customers can provide the required wavelengths and optical specifications for technical evaluation.


11. Related Products

Related Product Why It Is Related
O-Band DWDM Module Relevant where only the O-band wavelength group is required
C-Band DWDM Mux/Demux Suitable for systems using conventional C-band DWDM channels
CWDM Mux/Demux Alternative wavelength-multiplexing solution where wider channel spacing is required
LWDM Module Related to wavelength multiplexing in optical communication systems with a different wavelength grid
MWDM Module Provides another wavelength-multiplexing architecture for system-specific channel plans
AAWG DWDM Module Related high-channel-count wavelength multiplexing solution for dense optical networks

12. Call to Action

For a quotation or engineering review of a 19CH O+C-Band DWDM Module, please provide:

  • Required O-band wavelengths
  • Required C-band wavelengths
  • Channel count
  • Channel spacing
  • Passband requirements
  • Target insertion loss
  • Isolation requirements
  • Fiber type
  • Connector type
  • Fiber length
  • Package dimensions
  • Maximum optical power
  • Operating environment
  • Application or system diagram

GracyFiber can review the channel plan and optical interface requirements before quotation.
