Mini fiber optic circulator，Mini Fiber Optic Circulator Compact Optical Circulator Low Insertion Loss High Isolation for Optical Communication and Fiber Sensing

Mini fiber optic circulator,Mini Fiber Optic Circulator Compact Optical Circulator Low Insertion Loss High Isolation for Optical Communication and Fiber Sensing

The Mini Fiber Optic Circulator is a compact passive optical component designed to route optical signals sequentially between designated ports. Its non-reciprocal optical structure allows light to propagate in a defined direction while helping isolate unwanted reverse signals.

Compared with conventional circulator packages, the miniaturized design is suitable for applications where installation space is limited, including optical modules, sensing systems, test equipment, and integrated photonic assemblies.

The device can be configured according to application requirements for wavelength, fiber type, connector, pigtail length, and package structure, making it suitable for a range of fiber optic communication and measurement systems.

• Directional Optical Routing
  Routes optical signals between ports in a predefined sequence.

• Non-Reciprocal Operation
  Supports forward optical transmission while suppressing unwanted reverse propagation.

• Compact Package
  Miniaturized structure is suitable for space-constrained optical modules and equipment.

• Passive Optical Component
  Requires no external electrical power for optical signal routing.

• Flexible Integration
  Can be incorporated into optical communication, sensing, testing, and photonic systems.

• Configurable Design
  Wavelength, fiber type, connector, pigtail length, and package can be specified according to project requirements.

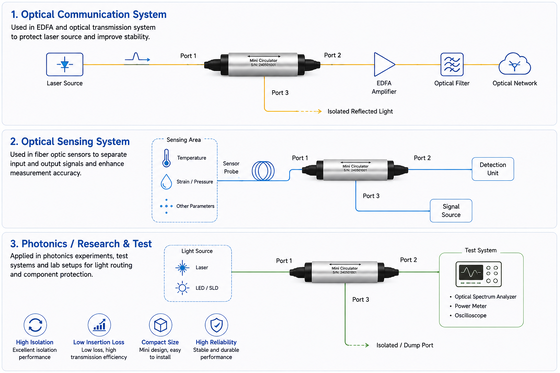

• Fiber optic communication systems

• Optical fiber amplifiers

• Fiber Bragg grating systems

• Bidirectional optical transmission

• Fiber optic sensing systems

• OTDR and optical monitoring equipment

• Optical test and measurement instruments

• Laser protection and reflection management

• Photonic modules and assemblies

• Laboratory optical systems

A mini fiber optic circulator is a compact non-reciprocal passive optical device that directs light sequentially from one port to the next.

In a typical 3-port configuration, light entering Port 1 is directed to Port 2, while light entering Port 2 is directed to Port 3.

No. A circulator is primarily used for directional routing and isolation. It does not perform the same function as an optical splitter, coupler, or WDM multiplexer.

A mini package reduces installation space and is suitable for compact optical modules, instruments, sensing equipment, and integrated optical assemblies.

Typical applications include fiber sensing, FBG systems, bidirectional transmission, OTDR monitoring, optical amplifiers, and laboratory test systems.

Important parameters normally include operating wavelength, number of ports, insertion loss, isolation, return loss, fiber type, connector type, pigtail length, package dimensions, and operating temperature.
