single mode fiber collimator，Single Mode Fiber Collimator Fiber Optic Optical Collimator High Precision Beam Collimation Device for Laser Optical Measurement Spectral Analysis

Brand Name:	Gracyfiber

Detail Information

Product Description

Detail Information

Place of Origin:

China

Fiber Type:

Single Mode

Beam Conversion:

Fiber-to-Free-Space

Optical Coupling:

Bidirectional

Component Type:

Passive Optical

Highlight:

single mode fiber collimator for laser

fiber optic collimator high precision

optical collimator spectral analysis

Product Description

Single Mode Fiber Collimator

Fiber Optic Optical Collimator High Precision Beam Collimation Device for Laser Optical Measurement Spectral Analysis

1. Product Description

The Single Mode Fiber Collimator is a passive optical component designed to convert the divergent light emitted from a single-mode fiber into a collimated free-space beam. In the reverse direction, it can also couple a collimated free-space optical beam into a single-mode fiber.

2. Key Features

Fiber-to-Free-Space Beam Conversion
Converts divergent light from a single-mode fiber into a collimated optical beam.
Bidirectional Optical Coupling
Can also be used to couple a free-space beam back into a single-mode fiber.
Single-Mode Fiber Design
Designed for optical systems requiring single-mode beam propagation and coupling.
Controlled Beam Characteristics
Beam diameter, divergence, and working distance can be defined according to the optical design.
Compact Optical Integration
Suitable for integration into optical modules, instruments, sensing systems, and photonic assemblies.
Passive Optical Component
Requires no external electrical power.
Flexible Configuration
Operating wavelength, fiber type, lens design, connector, pigtail length, and package can be configured according to application requirements.

3. Main Applications

Fiber optic communication systems
Free-space optical coupling
WDM optical components
Optical isolators and circulators
Fiber optic sensing
Interferometric systems

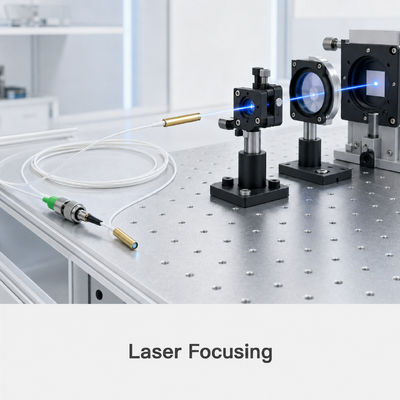

Laser systems

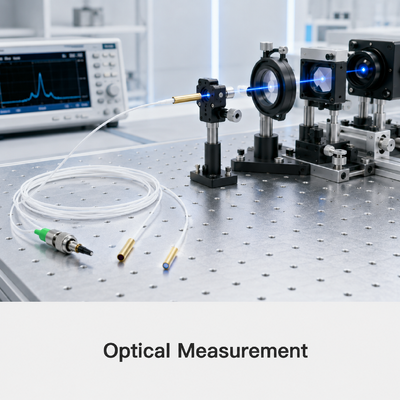

Optical test and measurement

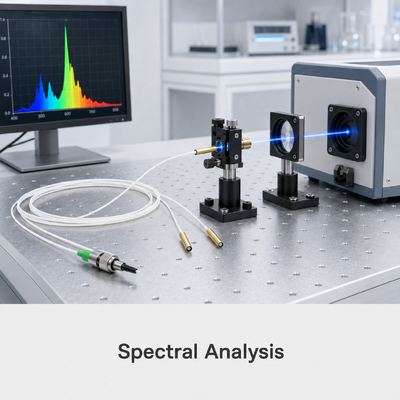

Spectroscopy instrumentation
Photonic research platforms
Custom optical assemblies

single mode fiber collimator，Single Mode Fiber Collimator Fiber Optic Optical Collimator High Precision Beam Collimation Device for Laser Optical Measurement Spectral Analysis

4. FAQ

Q1: What is a single mode fiber collimator?

A single mode fiber collimator is an optical component that converts the divergent light from a single-mode fiber into a near-parallel free-space beam.

Q2: Does a fiber collimator focus light to a small point?

Not in its primary collimating function. A collimator is mainly designed to produce a low-divergence beam. Depending on the optical configuration, the same type of lens assembly can also be used in reverse for fiber coupling.

Q3: Can a fiber collimator couple free-space light into a fiber?

Yes. When used in the reverse direction, a properly aligned collimator can couple a free-space optical beam into a single-mode fiber.

Q4: What is the difference between a fiber collimator and a fiber connector?

A fiber connector provides a detachable fiber-to-fiber connection. A fiber collimator provides an optical interface between a fiber and a free-space beam.

Q5: Where are single mode fiber collimators commonly used?

Typical applications include optical communication components, WDM systems, isolators, circulators, sensing systems, interferometers, test equipment, and laboratory photonic systems.

Q6: What determines the beam size of a fiber collimator?

Beam size depends on factors such as fiber mode field diameter, operating wavelength, lens focal length, and the optical design of the collimator.
