Upgrade Your Fiber Optic Systems With PM Fiber Arrary For Optimal Performance,8CH DWDM 100GHz Mux Demux LGX Module C20-C27 C52-C59 G657A1 Low Loss High Isolation Fiber Optic Multiplexer

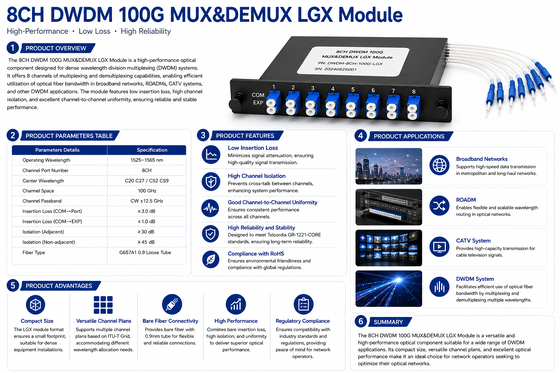

  The 8CH DWDM 100G MUX&DEMUX LGX Module is a high-performance optical component designed for dense wavelength division multiplexing (DWDM) systems.

• Low Insertion Loss: Minimizes signal attenuation, ensuring high-quality signal transmission.

• High Channel Isolation: Prevents cross-talk between channels, enhancing system performance.

• Good Channel-to-Channel Uniformity: Ensures consistent performance across all channels.

• High Reliability and Stability: Designed to meet Telcordia GR-1221-CORE standards, ensuring long-term reliability.

• Compliance with RoHS: Ensures environmental friendliness and compliance with global regulations.

• Broadband Networks: Supports high-speed data transmission in metropolitan and long-haul networks.

• ROADM: Enables flexible and scalable wavelength routing in optical networks.

• CATV System: Provides high-capacity transmission for cable television signals.

• DWDM System: Facilitates efficient use of optical fiber bandwidth by multiplexing and demultiplexing multiple wavelengths.

• Compact Size: The LGX module format ensures a small footprint, suitable for dense equipment installations.

• Versatile Channel Plans: Supports multiple channel plans based on ITU-T Grid, accommodating different wavelength allocation needs.

• Bare Fiber Connectivity: Provides bare fiber with 0.9mm tube for flexible and reliable connections.

• High Performance: Combines low insertion loss, high isolation, and uniformity to deliver superior optical performance.

• Regulatory Compliance: Ensures compatibility with industry standards and regulations, providing peace of mind for network operators.

5. FAQ

Q1: What does 100 GHz mean in this DWDM Mux & Demux module?

100 GHz refers to the frequency spacing between adjacent DWDM wavelength channels. It defines the wavelength grid used by the module and does not refer to the Ethernet or optical data transmission rate.

Q2: What is the function of the EXP port?

The EXP port provides an additional optical path that can be used for network expansion or cascading, depending on the system design. In this module, the specified insertion loss from the COM port to the EXP port is ≤1.0 dB.
