12-Port SC Fiber Optic Patch Panel

1. Product Description

The 12-Port SC Fiber Optic Patch Panel is a fiber management solution designed for terminating, connecting, organizing, and protecting SC fiber optic links in network racks, cabinets, and equipment rooms.

2. Key Features

• 12 SC Adapter Positions
  Provides 12 front-panel SC connection positions for centralized fiber termination and patching.

• Centralized Fiber Management
  Organizes fiber cables, pigtails, and patch cords within a structured enclosure.

• SC Connector Interface
  Designed for systems using standard SC fiber optic connectors.

• Single-Mode and Multimode Options
  Can be configured for corresponding single-mode or multimode optical networks.

• UPC and APC Options
  Available with matching SC/UPC or SC/APC interface configurations according to system requirements.

• Internal Fiber Organization
  Provides space for routing, storing, and protecting optical fibers and splice connections according to the panel structure.

• Passive Optical Infrastructure
  Requires no electrical power and performs no signal switching, amplification, or wavelength conversion.

• Rack or Cabinet Integration
  Suitable for installation in fiber distribution racks, network cabinets, and telecom equipment rooms.

3. Main Applications

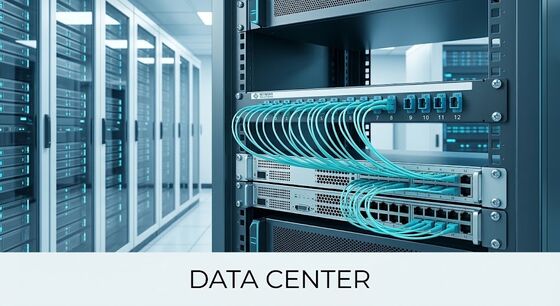

• Data center fiber cabling

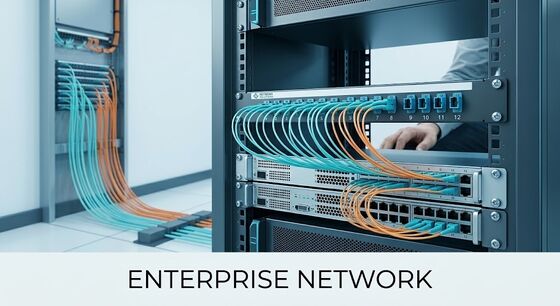

• Enterprise network infrastructure

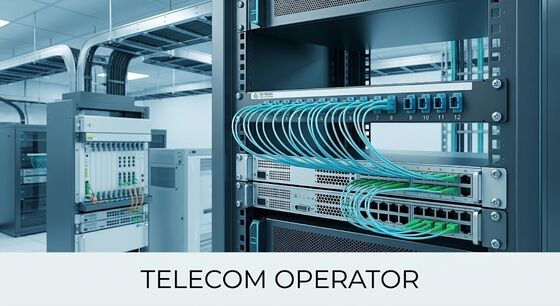

• Telecom equipment rooms

• Fiber distribution frames

• Optical distribution cabinets

• FTTx access networks

• Campus networks

• Educational and research facilities

• Industrial communication networks

• Equipment-room fiber termination

4. FAQ

Q1: What is a 12-port SC fiber patch panel?

It is a fiber management panel with 12 SC adapter positions used to terminate, organize, connect, and protect optical fiber links.

Q2: What is the main function of the patch panel?

Its main function is to provide a centralized physical connection point between incoming fiber cables and equipment-side fiber patch cords.

Q3: Does the patch panel increase network transmission speed?

No. It is a passive fiber management component. Transmission speed depends on the optical transceivers, fiber type, protocol, and complete optical link.

Q4: Can it be used with both single-mode and multimode fiber?

Yes, provided the adapters, pigtails, and patch cords are matched to the required single-mode or multimode fiber system.

Q5: What is the difference between SC/UPC and SC/APC?

SC/UPC uses an Ultra Physical Contact polished end face, while SC/APC uses an angled polished end face. The two polish types should not be directly mated with each other.

Q6: Can the panel include fiber splicing?

Depending on the enclosure design, the panel can include space for splice trays, pigtails, or other internal fiber management components. The exact configuration should be confirmed before ordering.
