LC/UPC 12-Core Tubed Fiber Optic Pigtail

1. Product Description

The LC/UPC 12-Core Tubed Fiber Optic Pigtail is a multi-fiber termination assembly designed for fiber splicing, distribution, and equipment interconnection. It consists of 12 individual optical fibers terminated with LC/UPC connectors at one end, while the opposite ends are prepared for fusion splicing or connection to the corresponding fiber network.

2. Key Features

• 12-Fiber Configuration
  Integrates 12 individual optical fiber channels within one organized pigtail assembly.

• LC/UPC Connector Interface
  Uses compact LC connectors with UPC-polished end faces for compatible LC/UPC optical connections.

• High-Density Fiber Termination
  The small LC form factor is suitable for fiber distribution systems where connection density is important.

• Individual Fiber Protection
  Each fiber can be protected by a buffer tube or sleeve to reduce the risk of mechanical damage during routing and installation.

• Color-Coded Fiber Identification
  Individual fibers can be identified by color or numbering for easier splicing, connection, and maintenance.

• Fusion-Splicing Ready
  The unterminated fiber ends can be prepared for fusion splicing into incoming cables or internal fiber assemblies.

• Passive Optical Component
  Requires no external electrical power and performs no signal conversion or wavelength processing.

• Configurable Construction
  Fiber type, tube size, length, color sequence, and connector configuration can be selected according to system requirements.

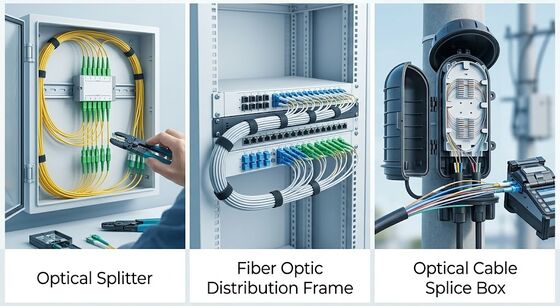

3. Main Applications

• Fiber optic patch panels

• Optical Distribution Frames (ODF)

• Fiber distribution boxes

• Fiber termination boxes

• Telecom access networks

• Data center fiber cabling

• FTTx networks

• Equipment-room fiber termination

• Optical communication systems

• High-density fiber management

4. FAQ

Q1: What is an LC/UPC 12-core fiber optic pigtail?

It is a 12-fiber assembly with LC/UPC connectors terminated on one end and fiber ends on the other side for fusion splicing or network integration.

Q2: What is the difference between a pigtail and a patch cord?

A pigtail normally has a connector on one end and an unterminated fiber end for splicing. A patch cord normally has connectors on both ends.

Q3: What does LC/UPC mean?

LC refers to the connector type, while UPC refers to the Ultra Physical Contact end-face polish. UPC polishing is designed to reduce reflected optical power and provide a suitable return-loss performance when correctly mated.

Q4: Does the protective tube allow the fiber to bend more tightly?

No. The tube provides mechanical protection but does not eliminate the minimum bend-radius requirement of the fiber. Proper routing practices should still be followed during installation.

Q5: Can the 12 fibers be individually identified?

Yes. The fibers can be color-coded or numbered according to the specified fiber identification scheme.
