The 8CH DWDM Mux Demux in 1U Panel is a rack-mounted dense wavelength division multiplexing/demultiplexing device. It adopts a 1U standard panel package and can realize the multiplexing and demultiplexing transmission of multiple signals of different wavelengths in a single fiber.
| Parameter | 8CH | |
| Operating wavelength(nm) | 1525~1625 | |
| Center wavelength(nm) | ITU-100G | |
| Center wavelength Accuracy(nm) | +/-0.05 | |
| Pass band@0.5dB(nm) | +/-0.11 | |
| Channel space(nm) | 0.8 | |
| Port Insertion loss(dB) | 2.8 | |
| Isolation | Adjacent | >30 |
| Non-adjacent | >40 | |
| Ripple(dB) | <0.5 | |
| PDL(dB) | <0.2 | |
| RL(dB) | >40 | |
| Directivity(dB) | >50 | |
| Power(mW) | <300 | |
| Temperature | -40~+85℃ | |

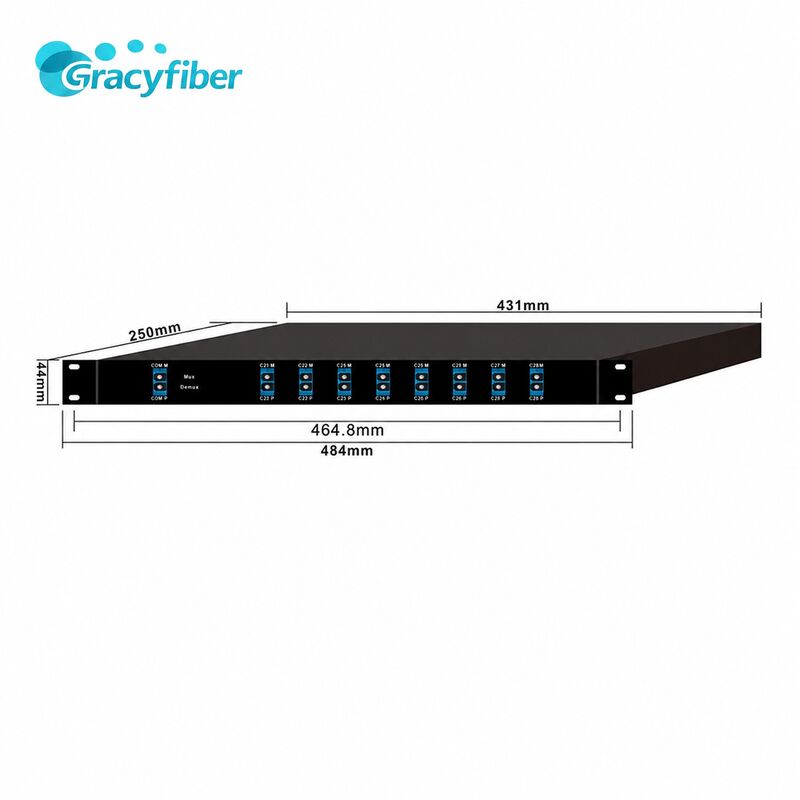

| Size(mm) | 484*250*44 | |
