4 Channel Compact CWDM Module 1271 1291 1311 1331nm Low Loss Fiber Optic Mux Demux FC UPC LC UPC

4 Channel Compact CWDM Module 1271 1291 1311 1331nm Low Loss Fiber Optic Mux Demux FC UPC LC UPC

Detail Information

Product Description

Detail Information

Wavelength:

1271/1291/1311/1331nm

Channel Bandwidth:

±7nm

Insertion Loss:

1291/1331 < 1.2dB, 1271/1311 0.5~0.8dB

Dimensions:

44×25×6mm

Product Description

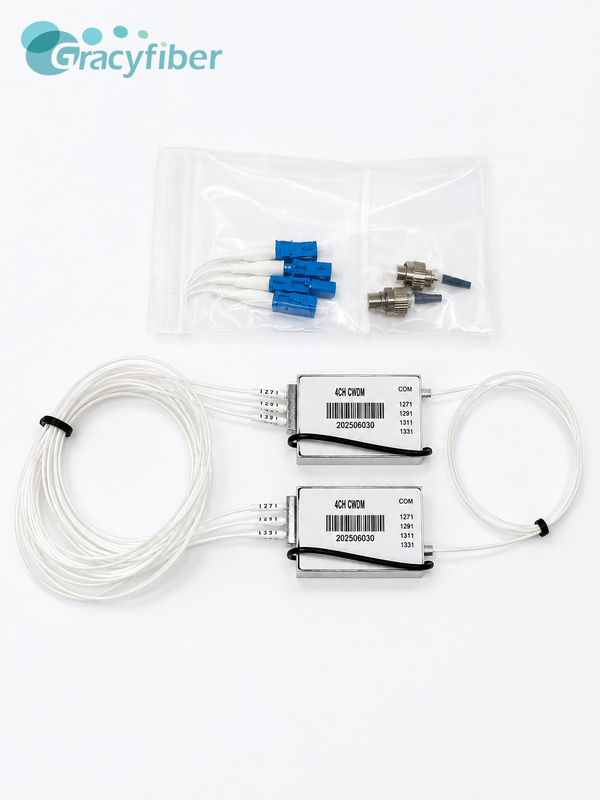

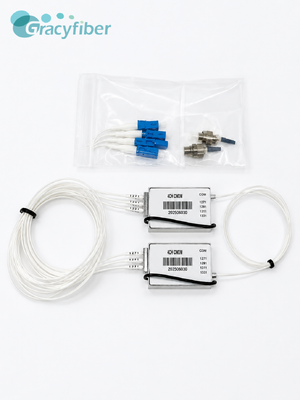

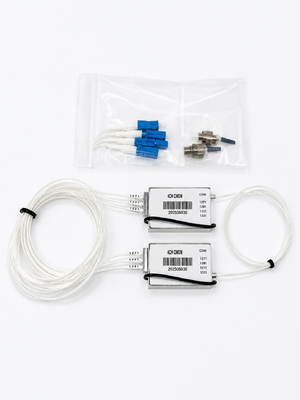

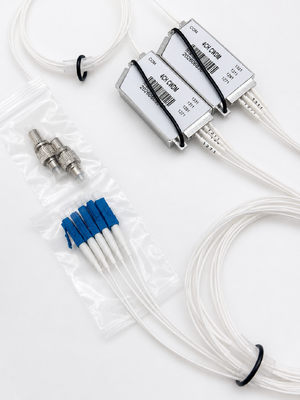

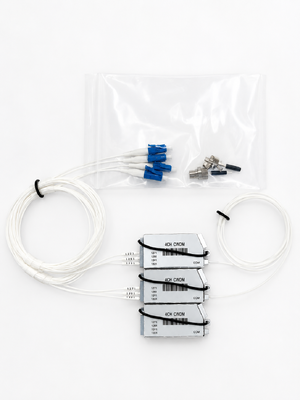

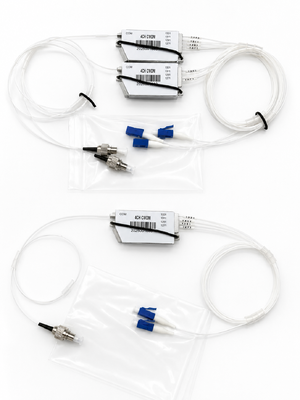

4 Channel Compact CWDM Module 1271 1291 1311 1331nm Low Loss Fiber Optic Mux Demux FC UPC LC UPC

Product Overview

This 4CH CCWDM module covers four CWDM wavelengths: 1271/1291/1311/1331nm, with a channel bandwidth of ±7nm. It features a compact silver aluminum case and a 0.9mm white loose tube design.

Core Product Characteristics

Parameters		Units	Specifications
			Minimum	Typical	Maximum
Wavelength (nm)		nm	CWDM 1271/1291/1311/1331
Number of Channels		nm	4
Channel Bandwidth		nm	-7	0	+7
Insertion Loss	1331→COM	dB	＜1.2dB
	COM→1311		0.5~0.8dB
	COM→1291		＜1.2dB
	1271→COM		0.5dB~0.8dB
Isolation	Adjacent Channels		≥25dB
	Non-Adjacent Channels		≥35dB
In-Band Ripple			≤0.5dB
PDL			≤0.5 Typ.0.25
TDL			≤0.5

Key Features

4CH CCWDM Wavelengths: 1271/1291/1311/1331nm
Channel Bandwidth: ±7nm
Insertion Loss: 1291/1331 < 1.2dB, 1271/1311 0.5~0.8dB
Adjacent Channel Isolation ≥ 25dB, Non-Adjacent Channel Isolation ≥ 35dB
COM end FC/PC, 1291/1331 end LC/PC, 1271/1311 end no connector
G657A1 fiber, 0.9mm white loose tube
Silver aluminum box packaging, dimensions approximately 44×25×6mm

Application Scope

CWDM coarse wavelength division multiplexing/demultiplexing systems
Compact optical module and optical device integration
Metropolitan area network and access network optical transmission
Data center and enterprise optical network interconnection
Multi-wavelength optical signal transmission systems
Optical communication equipment testing and wavelength management
Industrial and high-reliability fiber optic communication applications
