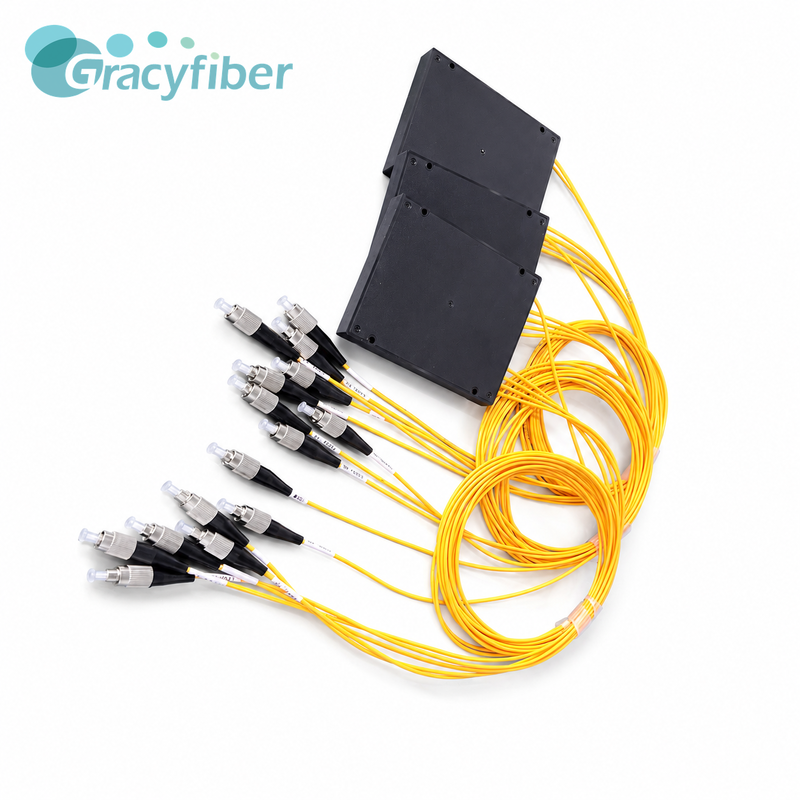

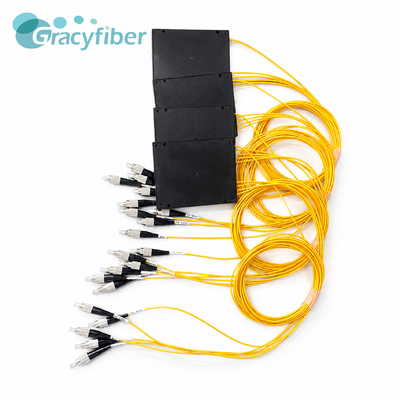

This product is a 4CH LWDM Mux multiplexing module, employing a 1*4 structure design, with operating wavelengths of 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm.
| Parameter | Units | Value | ||||
|---|---|---|---|---|---|---|
| Module | / | 1x4 | ||||
| Operating Wavelength | nm | 1295.56 | 1300.05 | 1304.58 | 1309.14 | |
| Insertion Loss | dB | 0.49 | 0.81 | 0.99 | 1.09 | |
| Isoation | dB | ≥30 | ||||
| Directivity | dB | ≥50 | ||||
| Return Loss | dB | ≥45 | ||||
| PDL | dB | ≤0.15 | ||||
| Connectors | / | FC/UPC | ||||
| Fiber Type | / | Corning SM-28e,0.9mm,1.0m | ||||
| Power Handing(mW) | mW | 300 | ||||
| Operating Temperature | °C | -5 to +70 | ||||
| Storage Temperature | °C | -40 to +85 | ||||
| Dimensions (LxWxH) | mm | 120x80x18 | ||||
| * testing data include connectors | ||||||
4-Channel LWDM Multiplexing Design
Supports four wavelength channels: 1295.56 nm, 1300.05 nm, 1304.58 nm, and 1309.14 nm, enabling multiple O-band optical signal multiplexing outputs.
Low Insertion Loss Performance
The insertion losses for each channel are 0.57 dB, 0.89 dB, 0.99 dB, and 0.90 dB, respectively, helping to reduce link power loss and improve system transmission efficiency.
Good Isolation and Directivity
Channel isolation ≥30 dB and directivity ≥50 dB, effectively reducing inter-channel crosstalk and ensuring stable transmission of multi-wavelength signals.
Stable Optical Specifications: Return loss RL ≥ 45 dB, polarization dependent loss PDL ≤ 0.15 dB, maximum optical power carrying capacity 300 mW, suitable for stable and reliable optical communication link applications.
Engineering Packaging and Connection Configuration: Utilizes a 120*80*18 mm box-type package, equipped with FC/UPC connectors, Corning SMF-28e fiber, 0.9 mm loose tube, and a fiber length of 1.0 m, facilitating equipment integration and field installation.
