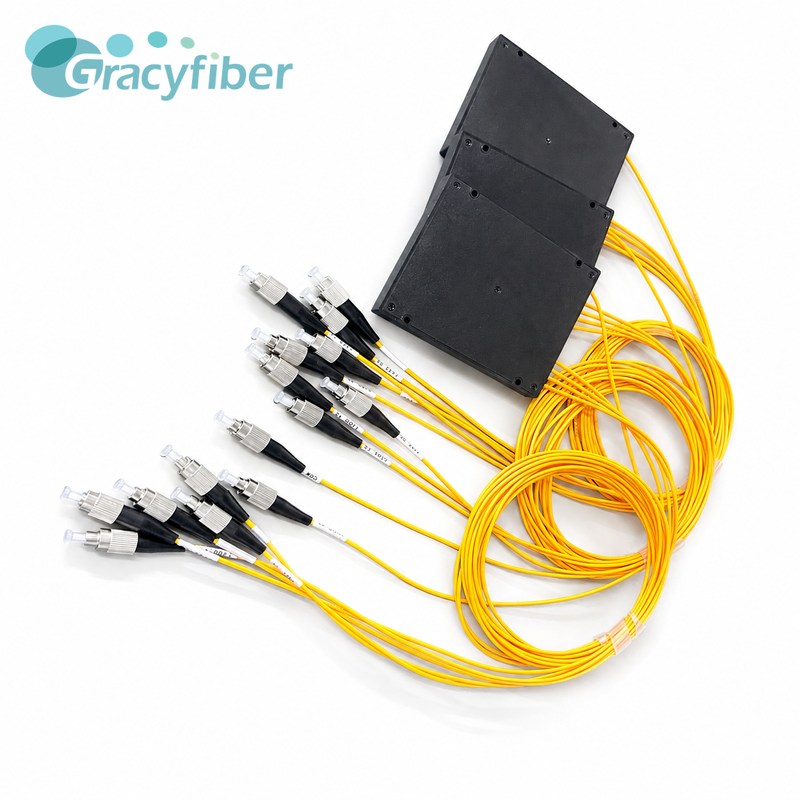

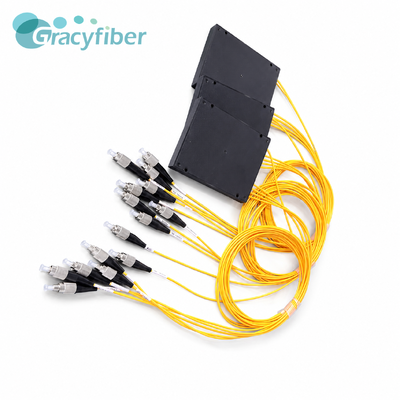

4 Channel LWDM Mux Module 1x4 O Band Fiber Optic Multiplexer 1295.56 1300.05 1304.58 1309.14nm FC UPC

4 Channel LWDM Mux Module 1x4 O Band Fiber Optic Multiplexer 1295.56 1300.05 1304.58 1309.14nm FC UPC

Model Number: LWDM-M-FU
Detail Information
Product Description
Detail Information
Operating Wavelength:
1295.56, 1300.05, 1304.58, 1309.14 Nm
Insertion Loss:
0.57, 0.89, 0.99, 0.90 DB
Channel Isolation:
≥30 DB
Dimensions:
120x80x18 Mm
Highlight:

4 channel LWDM Mux Module O Band

,

1x4 fiber optic multiplexer FC UPC

,

O Band WDM 1295.56nm 1309.14nm

Product Description
4 Channel LWDM Mux Module 1x4 O Band Fiber Optic Multiplexer 1295.56 1300.05 1304.58 1309.14nm FC UPC
1. Product Overview

Gracyfiber manufactures high-performance 4-channel LWDM (Light Wavelength Division Multiplexing) multiplexing modules (1x4 Mux Module) specifically designed for high-capacity, high-speed optical networks.

2. Product Features
Parameter Units Value
Module / 1x4
Operating Wavelength nm 1295.56 1300.05 1304.58 1309.14
Insertion Loss dB 0.57 0.89 0.99 0.90
Isoation dB ≥30
Directivity dB ≥50
Return Loss dB ≥45
PDL dB ≤0.15
Connectors / FC/UPC
Fiber Type / Corning SM-28e,0.9mm,1.0m
Power Handing(mW) mW 300
Operating Temperature °C -5 to +70
Storage Temperature °C -40 to +85
Dimensions (LxWxH) mm 120x80x18
* testing data include connectors




  • 4-channel LWDM multiplexing design (1x4 Mux, 1295.56 / 1300.05 / 1304.58 / 1309.14 nm)
  • Extremely low insertion loss (measured peak of only 0.99 dB)
  • High channel isolation (≥ 30 dB) and high return loss (≥ 45 dB)
  • High directivity (≥ 50 dB)
  • Extremely low polarization dependent loss (PDL ≤ 0.15 dB)
  • Corning SM-28e high-quality single-mode fiber
  • 0.9mm loose tube custom pigtail (1.0 meter length)
  • Full-port configuration with FC/UPC high-standard connectors
  • 120×80×18 mm compact enclosure
3. Applications
  • 100G/200G/400G high-speed optical communication system integration
  • 5G Large-scale fronthaul deployment and channel multiplexing
  • High-density metropolitan area network (MAN) and local area network (LAN) backbone interconnection
  • Data center interconnect (DCI) and enterprise-grade high-speed cloud computing transmission networks
  • High-precision optical fiber distribution frames (ODF) integrated with network testing instruments
