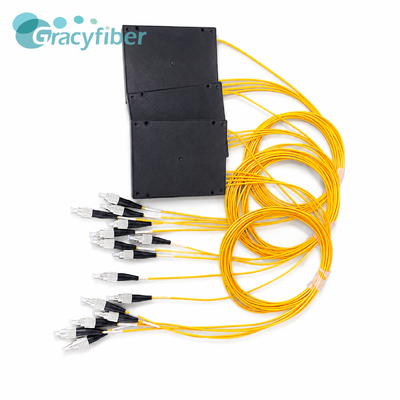

4 Channel 800G LWDM Module O Band Fiber Optic Mux Demux 1295.56 1300.05 1304.58 1309.14nm FC APC Low Loss

4 Channel 800G LWDM Module O Band Fiber Optic Mux Demux 1295.56 1300.05 1304.58 1309.14nm FC APC Low Loss

Model Number: 921020007-07
Detail Information
Product Description
Detail Information
Channel Count:
4
Wavelengths:
1295.56, 1300.05, 1304.58, 1309.14 Nm
Insertion Loss:
≤ 1.6 DB
Channel Isolation:
Adjacent > 25 DB, Non-adjacent > 35 DB
Highlight:

4 Channel LWDM Module O Band

,

800G Fiber Optic Mux Demux

,

O-Band WDM FC APC Low Loss

Product Description

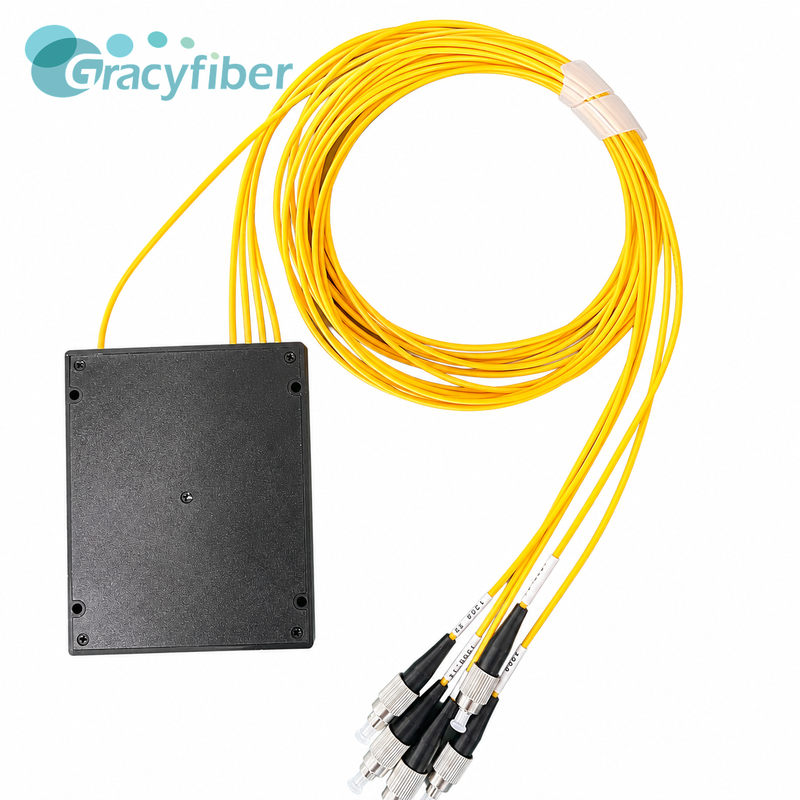

4 Channel 800G LWDM Module O Band Fiber Optic Mux Demux 1295.56 1300.05 1304.58 1309.14nm FC APC Low Loss

1. Product Overview

Gracyfiber's 4-channel LWDM (Light Wavelength Division Multiplexing) module is specifically designed for high-speed optical communication and 5G fronthaul networks.

4 Channel 800G LWDM Module O Band Fiber Optic Mux Demux 1295.56 1300.05 1304.58 1309.14nm FC APC Low Loss

2. Product Features
  • 4-channel LWDM design (1295.56, 1300.05, 1304.58, 1309.14 nm)
  • 800G standard channel pitch (passband tolerance λC ± 1.1 nm)
  • Low insertion loss (≤ 1.6 dB)
  • High channel isolation (adjacent > 25 dB, non-adjacent > 35 dB)
  • Excellent polarization-dependent loss control (PDL ≤ 0.2 dB)
  • SMF-28e high-quality single-mode fiber
  • 0.9mm white loose tube custom pigtail (0.5 m length)
  • Individualized number tube markings (significantly improves high-density cabling and subsequent maintenance efficiency)
  • FC/APC high-standard connectors
  • 100×80×10 mm compact ABS enclosure

4 Channel 800G LWDM Module O Band Fiber Optic Mux Demux 1295.56 1300.05 1304.58 1309.14nm FC APC Low Loss

3. Applications
  • 100G/200G/400G High-speed optical communication system integration
  • 5G fronthaul network deployment and smooth channel expansion
  • High-density metropolitan area network (MAN) and local area network (LAN) backbone node interconnection
  • Data center interconnect (DCI) and enterprise-grade cloud computing high-speed transmission network
  • Space-constrained high-precision fiber optic distribution frames (ODF) and network testing equipment
