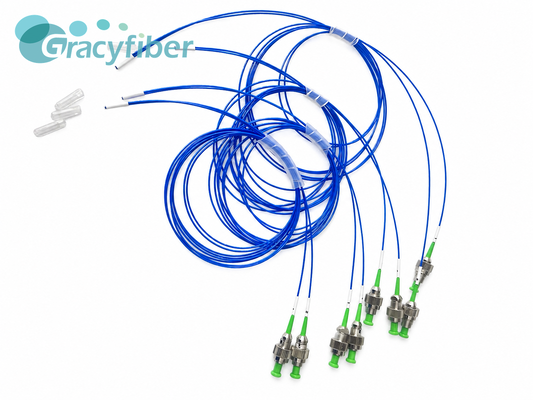

Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm

Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm

Model Number: 910001701-04
Detail Information
Product Description
Detail Information
Channel Spacing:
OK
Polishing Angle:
OK
Package Dimensions:
8*2.5*0.753 Mm
Insertion Loss:
≤0.3 DB
Highlight:

1CH PMFA block 0.753mm thickness

,

Slow axis aligned FC/APC PM fiber array

,

PM1550 0.9mm blue tube fiber component

Product Description
Custom 1CH PMFA Block (0.753mm Thickness) | Slow Axis Aligned FC/APC | PM1550 0.9mm Blue Tube | Component for Coherent Comm
1. Product Overview

Gracyfiber manufactures high-precision single-channel polarization-maintaining fiber arrays (1CH PMFAs) using high-quality quartz glass substrates, specifically designed for precision polarization control in compact spaces.

2. Product Features
Parameters Unit Spec. Value
Channel / 1 OK
Material / Quartz Glass OK
Channel Spacing μm / OK
Polishing Angle Degree / OK
Package(L)X(W)X(H) mm 8*2.5*0.753 OK
Insertion Loss dB ≤0.3 　
　
　
　
　
　
　
　
Extinction Ratio dB ≥18 25
　
　
　
　
　
　
　
FA PM Fiber Alignment / PMII OK
Connctor PM Fiber Alignment / Slow Axis
Alignment Key		 OK
Fiber Type / PM1550 OK
Fiber Tube mm 0.9 OK
Tube Color / Blue OK
Length m 1±0.1 OK
Connector / FC/APC OK
Operating Temperature (℃) 0～65 OK
Storage Temperature (℃) -40～85 OK
  • Ultra-low insertion loss (< 0.3 dB)
  • Ultra-high extinction ratio (> 18 dB, typical 25 dB)
  • Corning PM1550 polarization-maintaining fiber
  • FC/APC connector (slow-axis keying for precise positioning)
  • High-precision 0° end-face grinding (A0°)
  • 8*2.5*0.753mm ultra-thin quartz glass package
  • PM II fiber array polarization alignment process
3. Applications
  • Coherent optical communication system packaging
  • Fiber optic gyroscopes (FOGs) and precision optical sensing
  • Silicon photonic integrated circuit (PIC) coupling
  • High-performance polarization-maintaining waveguide device integration
  • Ultra-compact high-speed optical module internal connections
